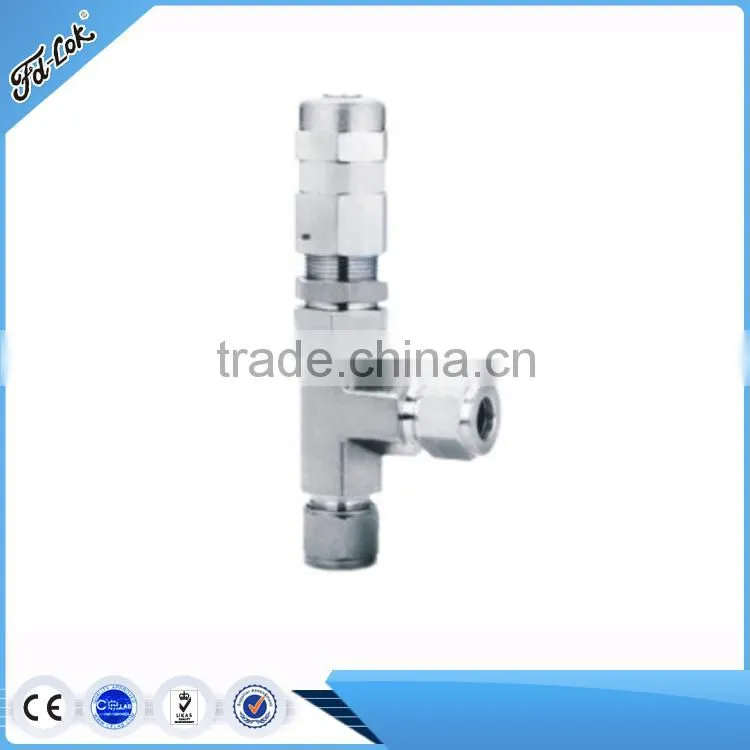

SS safety relief valve, safety relief valve swagelok type
Feature:
1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
3.Material:ss304,316,316L
4.Certificates:ISO9001:2008, CE
5.Brand Name: FD-LOK
6.Place of Origin: Zhejiang, China (Mainland)
Details:
1.Set pressures:50 to 6000 psig @ 70°F ( 0.34 to 41.4 Mpa @ 21°C )
2.Maximum outlet pressure:1500 psig ( 103 bar )
3.Working temperatures: -10°F to 300°F ( -23°C to 148°C )
4.Many options for various end connections
5.Liquid or gas service
6.Adjustable bonnet cap,and adjustable set pressure
7.Balance stem design to eliminate the effect of system back pressure
8. 7 color-coded springs avaliable for a wide range of set pressure
9.Lock wired secure cap to maintain set pressure
10.Many options for various seal materials
11.Label identifies the set pressure range
12.Manual override handle available to open the valve
without changing the set pressure when lower than 1500 psig
Our product is high quality,ensure safe,trouble-free performance.
| Product name | SS safety relief valve, safety relief valve swagelok type |
| Material | 316SS, 316LSS and other special materials |
| Size |
Fractional Sizes from: 1/8" - 2" Metric sizes from: 3mm - 38mm |
| Nominal pressure | Pressure from 6000 to 10000 psig |
| Technics | Forged bar stock |
| Thread Standard | NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc |
| Applicable medium | oil,gas,water or other medium |
| MOQ | If have stock .unlimited quantity. If no stock , MOQ 100pcs . |
| Payment term | stock products 100%payment before shipping out . In generally,30%deposit , 70%balance against B/L copy, L/C is also acceptable |
| Packing | each one in poly bag and small box, then in export wooden case |
| Other detail |
1) . Pressure from 10000 psig for high pressure series 2).Temperature from -65°F to 450°F ( -54°C to 232°C ) with PTFE packing 3) Specified specification available upon request 4) Quality assurence 5) free sample can be send to test qulity before place on order |
Advantage:
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable
Quality Control: We have been engaged in valve design for many year and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
About Price: we provide very reasonable and competitive price for you
Our Capacity:
1)Date of foundation:2002
2)Annual Revenue:Above $9 million
3)About QC: Excellence, quality first is our philosophy
4)Sales Market: Europe,North America,Southeast Asia and Brazil
5)Main Products: Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,
2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,
Syphons, Globe Valves, Plug Valves, Tube
We Provide You With Sincerely Service, if you interest, please contact us NOW!!!
