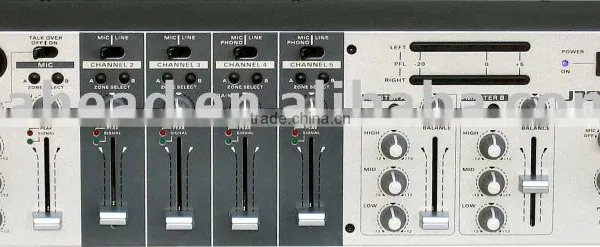

Help CenterMusic Mixer Console Controller5.2
Related Products
Specifications
dj mixer11 input, 5CH(5 mic+4line+2phono)
talkover, gain level, record output
Europe design
Quality Guaranteed
Profesional install mixer, profesional DJ mixer, mixer console
Control 5.2
:: Product Description
* 2 Independent Zones, each with balanced XLR-output (+unbalanced on cinch)
* Each zone has 3band tone controls, balance, volume and mono/stereo switch
* 11 inputs on 5 Channels (5 balanced mic + 4line + 2phono)
* 1Microphone with 3band tone control and zone assignable adjustable talkover.
* Every Channel can be assigned to zone A, zone B or both.
* Every Channel has individual peak and signal present leds.
* Gain levels and 45mm faders on all channels
* PFL with rotary selector, cue level adjustment and 6.3mm headphones jack.
* 2 independent record outputs without Channel1 microphone and free from talkover muting
:: Technical Information
Mic Input 1,5mV/10kOhm
Phono Input 3mV/47kOhm
Line Input 150 mV/22 kOhm
S/N Ratio >85 dB/1 kHz
Master A/B
Output 1,5V/4kOhm unbalanced 850mV/600 Ohm balanced
Frequency Response20-20.000 Hz (2dB)
Tone Control -12 dB, +12dB
Phones 1V/32 Ohm
Dimensions (mm) 134/H x 483/W x 130/D (19"/3U)
