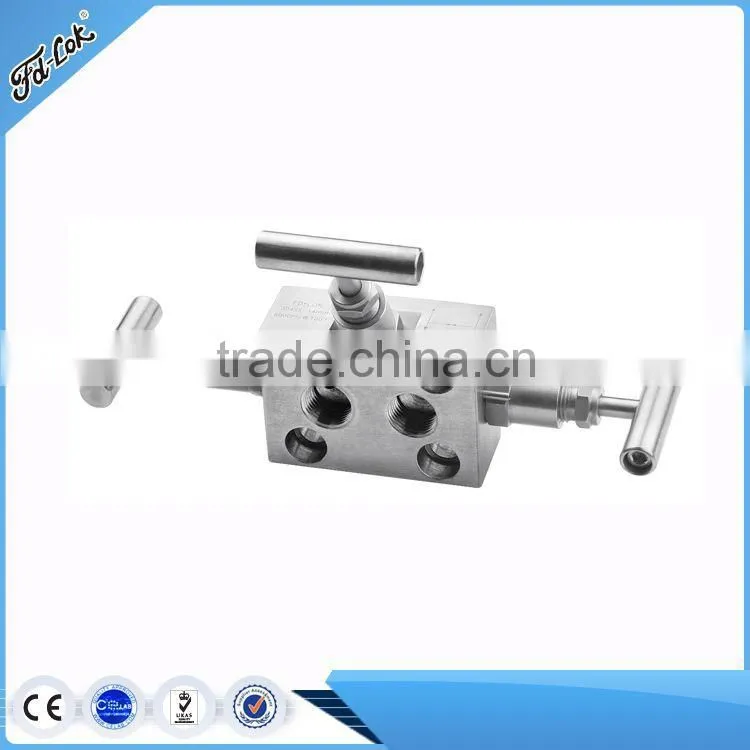

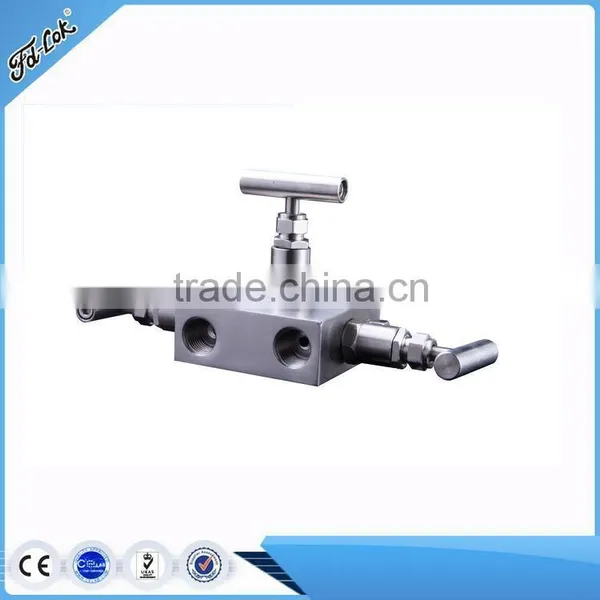

Instrument manifold valve, instrument valve manifold, three way manifold
Feature:
1.Prime,High Quality
2.Standards:NPT,BSP,ISO,DIN
4.Certificates:ISO9001:2008, CE
5.Brand Name: FD-LOK
6.Place of Origin: Zhejiang, China (Mainland)
Details:
1.Press up to 10000psig (649bar) for standard stainless steel body
2.Temperature for PTFE packing from -65°F to 450°F (-54°C to 232°C)
Temperature for Grafoil packing from -65°F to 1200°F (-54°C to 649°C)
3.Packing below stem thread isolates the thread lubricant from the media
4.Back seating design protects the packing in fully open position
5.Non-rotating stem tip
6.100% factory tested
7.Orifice:0.157" (4.0mm),CV:0.35
Our product is high quality,ensure safe,trouble-free performance.
| Product name | Instrument manifold valve, instrument valve manifold, three way manifold |
| Material | 316SS, 316LSS and other special materials |
| Size |
Fractional Sizes from: 1/8" - 2" Metric sizes from: 3mm - 38mm |
| Nominal pressure | Pressure from 6000 to 10000 psig |
| Technics | Forged bar stock |
| Thread Standard | NPT,BSP,BSPT,G,SAE,PT,RP,ISO and etc |
| Applicable medium | oil,gas,water or other medium |
| MOQ | If have stock .unlimited quantity. If no stock , MOQ 100pcs . |
| Payment term | stock products 100%payment before shipping out . In generally,30%deposit , 70%balance against B/L copy, L/C is also acceptable |
| Packing | each one in poly bag and small box, then in export wooden case |
| Other detail |
1) . Pressure from 10000 psig for high pressure series 2).Temperature from -65°F to 450°F ( -54°C to 232°C ) with PTFE packing 3) Specified specification available upon request 4) Quality assurence 5) free sample can be send to test qulity before place on order |
Advantage:
Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable
Quality Control: We have been engaged in valve design for many year and can guarantee best quality
Experienced Sales Team: Our sales team is experienced, and they all know our product well.
About Price: we provide very reasonable and competitive price for you
Our Capacity:
1)Date of foundation:2002
2)Annual Revenue:Above $9 million
3)About QC: Excellence, quality first is our philosophy
4)Sales Market: Europe,North America,Southeast Asia and Brazil
5)Main Products: Compression Tube Fittings,Pipe Fittings, Needle Valves, Instrument Ball Valves,
2&3&5 way Valve Manifolds, Check Vlaves, Gate Valves, Block&Bleed Valve, Sample Cylinders, Relief Valves,
Syphons, Globe Valves, Plug Valves, Tube
We Provide You With Sincerely Service, if you interest, please contact us NOW!!!
