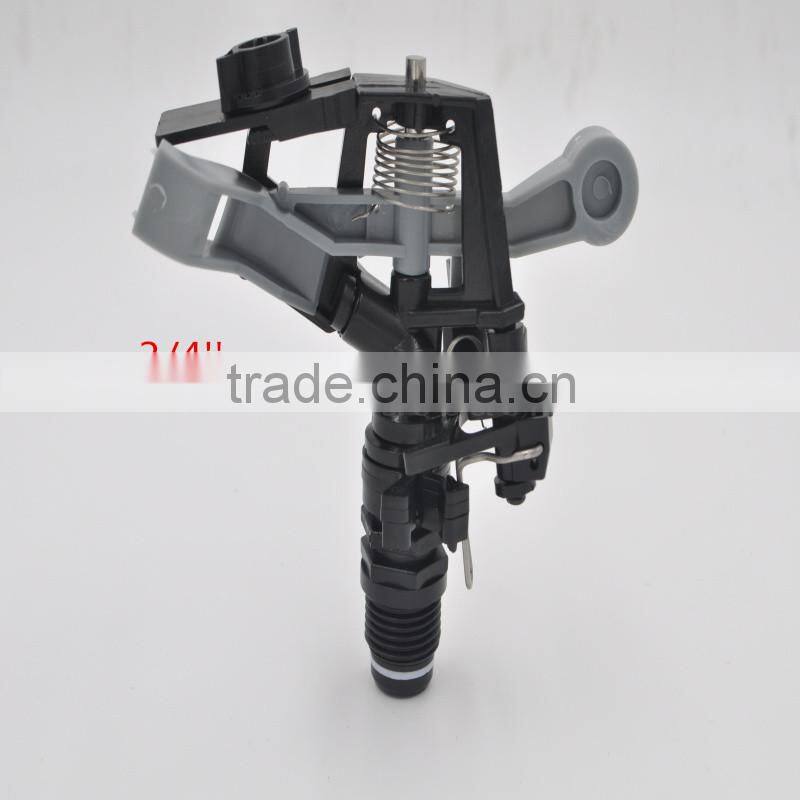

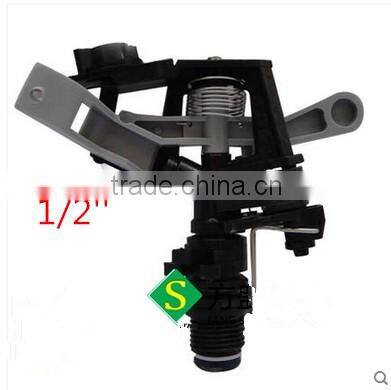

Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler

Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler thumbnail-1
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler thumbnail-2
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler thumbnail-3
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler thumbnail-4
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler photo-1
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler photo-2
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler photo-3
Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler photo-4
US$ 0.7 - 0.83 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Type:
Other, irrigation system
Cover Material:
Other, plastice
Model Number:
Sp-P1031
Contact Supplier Request Quote Chat Now
Jiangsu Skyplant Greenhouse Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, irrigation system
Cover Material Other, plastice
Model Number Sp-P1031
Place of Origin Jiangsu, China
Brand Name skyplant

Plastic Full-Circle Impulse Plasating Farming Irrigation Water Garden SprinklerPlastic Full-Circle Impulse Plasating Farming Irrigation Water Garden SprinklerPlastic Full-Circle Impulse Plasating Farming Irrigation Water Garden SprinklerPlastic Full-Circle Impulse Plasating Farming Irrigation Water Garden Sprinkler



Specifications:
1.Plastic micro garden sprinkler irrigation system
2.Usage:Vegetable,greenhouse
Product Description
1.Plastic micro garden sprinkler irrigation system;
2.Vegetable irrigation micro sprinkler;
3.For orchards, garden or greenhouse irrigation;
4.1.5-3.0 bar;
5.Diameter:1-10m;
6.Micro-sprayer irrigaion is a major pressurized irrigation method;
7.The advancedplastic molding technology allos for the development and manufacture of water emitters with extreme diversity of flow rates, distribution patterns and droplet sizes;
8.Micro-sprayer irrigation has numerous applications.
Applications:
1.Plastic micro garden sprinkler irrigation system;
2.Irrigation in orchards, vegetables and gardens;
3.Irrigation in greehouses and shade houses;
4.Cooling of pultry and livestock.
Technical data:
1.Plastic micro garden sprinkler irrigation system;
2.Recommended working pressure: 1.5-3.0 bar;
3.Flow rate: 25-400 l/h;
4.Wetted diameter: 1-10 m;
5.Filtration requirement: 130 micron for purple and brown nozzles;
                                       200 micron for other nozzles.


Wetted diameter (m) at 2.0 bar and 0.25 m above ground level*
Pict

 Pict

 Static Spreaders Swivels
90° 180° Strip Close range Flate 12 Jets Small black Anti-ant One-sided Big orange Inverted
Antimist
colour &
size
(mm)		 Nozzle
colour		 Nozzle
size
(mm)		 Flow
rate
(l/h)		 Pict Pict Pict Pict Pict Pict Pict Pict Pict Pict Pict
Height(m)
0.60 1.80
  Violet 0.82 35 1.7 2.2 3.2 0.9 2.8 3.4 5.5 6.0 6.5   5.0 6.0
  Brown 0.94 43 1.7 2.5 4.2 0.9 3.4 4.5 5.5 6.0 6.5   5.0 6.0
  Gray 1.16 70 2.5 2.7 8.5 0.9 3.4 5.5 6.0 6.5 7.5   5.5 6.5
  Green 1.41 105 3.5 2.7 9.0 0.9 3.4 6.0 6.0 7.0 7.5 9.0 6.5 8.0
  orange 1.50 120 4.5 2.7 9.0 0.9 4.0 6.0 6.0 7.0 8.0 9.0 7.0 8.5
  Yellow 1.73 160             6.5 8.0 8.0 9.0 7.5 9.0
  Blue 1.92 200               8.0 8.5 9.0 8.0 9.0
  White 2.07 235                 8.5 10.0 8.0 9.5
  Red 2.18 260                 8.5 10.0 8.5 10.0
  Black 2.34 300                 9.0 10.0 8.5 10.0
Green/0.94 Green 1.41 40 2 1.2 2.8 0.8 3.5 2.5 4.0     10.0 4.5 5.5
orange/1.16 orange 1.50 70 2.2 2.2 5.0 0.8 3.5 4.5 5.0       6.0 7.0
Yellow/1.40 Yellow 1.73 90 2.5 2.5 5.5 0.9 4.0 5.0 5.5       6.0 7.5
Blue/1.50 Blue 1.92 120 2.5 2.7 7.0 1.0 4.0 5.0 6.0       6.5 8.0
* Inverted swivel at 0.60 and 1.80 m
