BT-THEATRE 1EZ 16pcs CREE XM-L LEDs Spot Light

Name: BT-THEATRE 1EZ 16pcs CREE XM-L LEDs Spot Light
Brand: JBSYSTEMS
SKU: 114200675

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

LED Light Source:

16pcs CREE XM-L LEDs

Input Voltage(V):

110-240

Lamp Power(W):

200

Summitlite International Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/Shenzhen/ Hongkong

Delivery Detail:

Delivery time depends on order quantity.

LED Light Source 16pcs CREE XM-L LEDs

Input Voltage(V) 110-240

Lamp Power(W) 200

Lamp Luminous Flux(lm) 5300

Working Temperature(℃) -20, 40

Certification CE

Place of Origin Guangdong, China

Brand Name JBSYSTEMS

Model Number BT-THEATRE 1EZ

Specifications

Uses 16pcs CREE XM-L LEDs driven at 3000mA (10W each)
Color temperature 3100K with high CRI > 85 for natural colors

Product Description

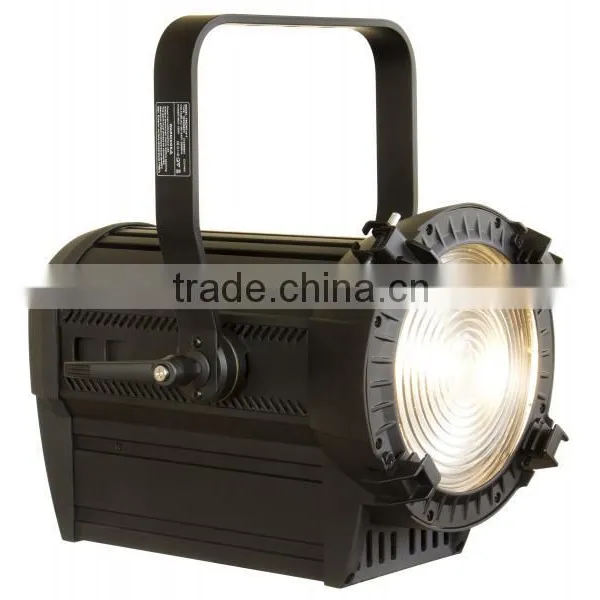

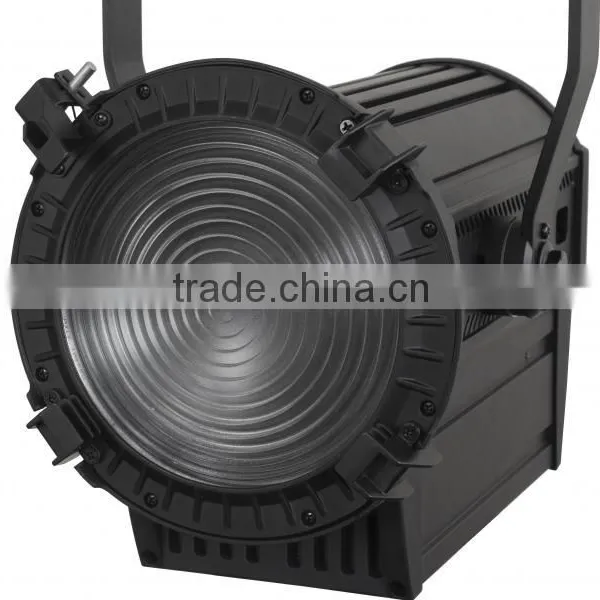

Professional LED theater spot with motorized 15° ~ 45° zoom.
No more heavy and expensive dimmer packs needed!
Max. flux: 5300lm, max 10480 lux @2m and 1160 lux @ 6m (beam angle: 12°)
Uses 16pcs CREE® XM-L LEDs driven at 3000mA (10W each)
Color temperature 3100K with high CRI > 85 for natural colors
Easy manual or DMX-controlled operation:

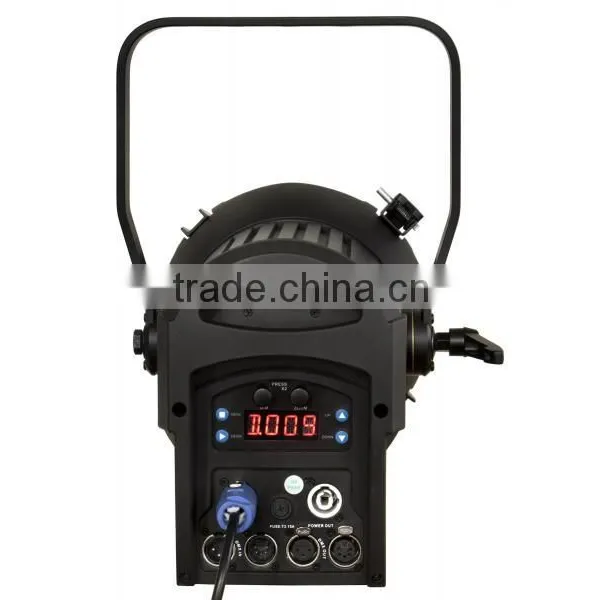

Manual operation: 2 encoder knobs on the back panel for dimmer and zoom
DMX-operation with different channel modes:LED display for easy navigation of the setup menu (can be locked with password)
- 1CH mode: 8bit dimmer, dimmer 0 – 100%
- 2CH mode: 16bit dimmer, dimmer coarse + dimmer fine
- 5CH mode : 16bit dimmer (coarse + fine) + Strobe channel + zoom 15° ~ 45° + zoom reset
To adapt the LED theater spot to the behavior of halogen based spots, you can set:In case of DMX failure you can choose between blackout and freeze mode.
- 4 different dimmer speeds (fast to slow “halogen lamp" response)
- 4 different dimmer curves
Extruded black anodized aluminium housing with strong bracket
PowerCON® in/out for easy linking of several projectors using our PowerCON® combi cables.
DMX in/out: 3pin + 5pin XLR connectors
Forced low noise fan cooling
