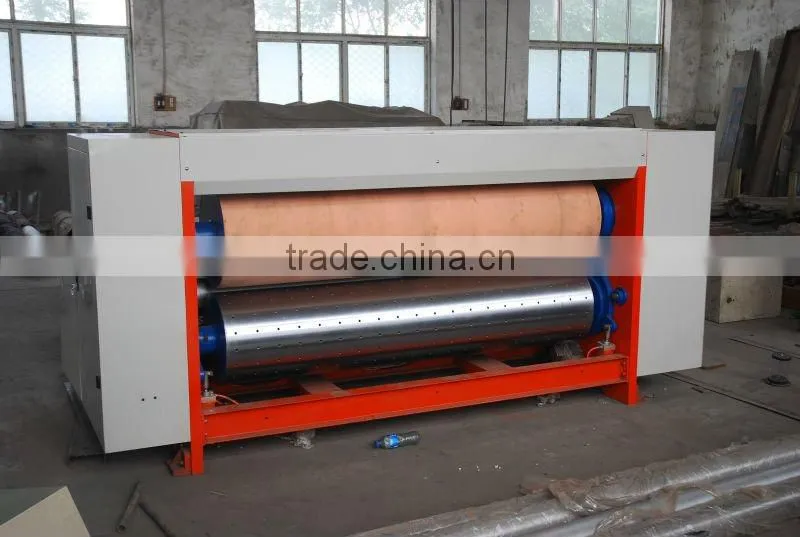

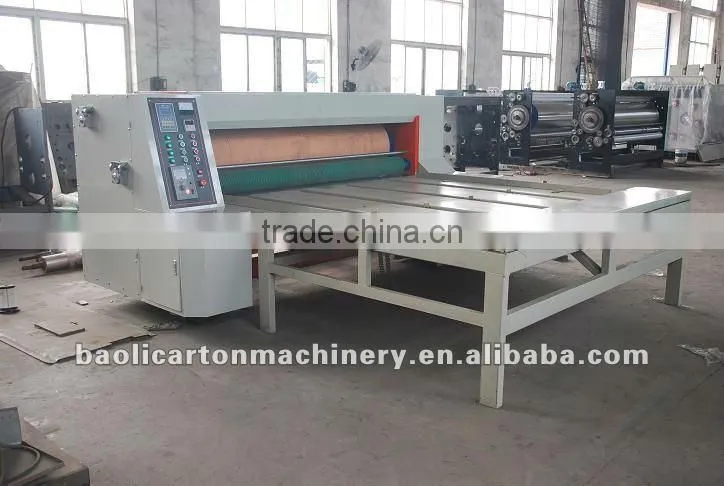

Cardboard creasing machine/carton rotary die cutting machine
- 30 Set / Sets per Month
- tianjin port
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Cartons |
Packaging Material: | Plastic | Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 4.0KW | Place of Origin: | Hebei, China |
Brand Name: | BAOLI | Model Number: | YMJ | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Function and Characteristics:

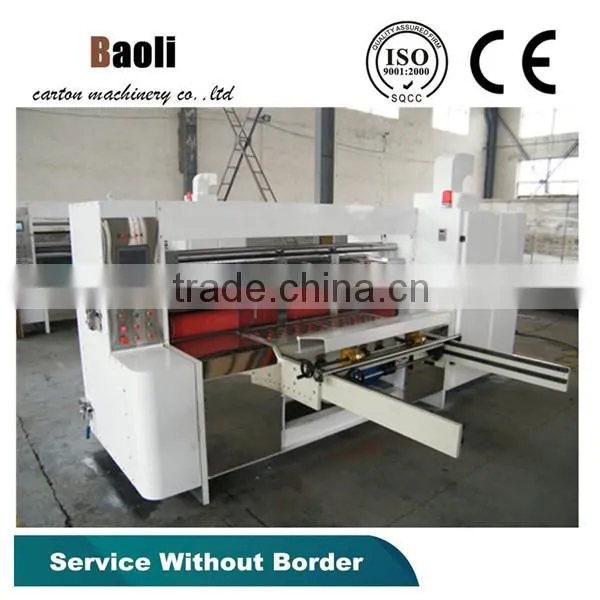

Automatic Rotary Die Cutting Machine for carton box

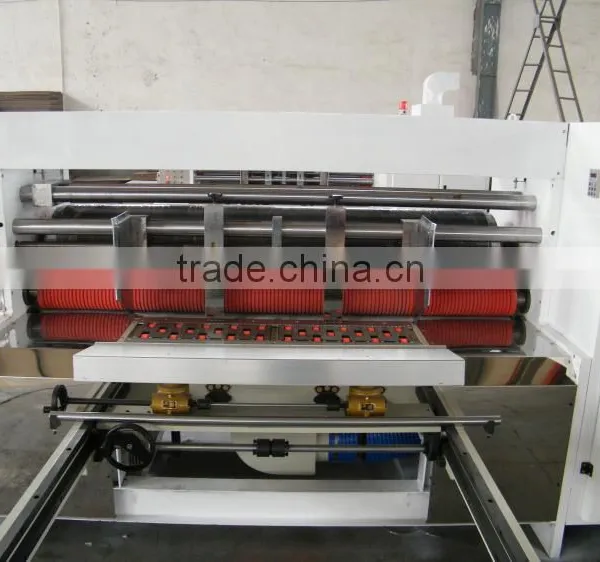

1.Vacuum adsorption-assisted back-push paper feeding system is adopted, which can send the bent cardboard smoothly. (The front edge feed system can also be chosen)
2.The whole machine combines with light, electric and gas control, so it is safe, reliable and high efficient.
3.The production quantity can be set, and the paper feeding will terminate automatically after completion.
4.Equipped with Polyurethane made in Taiwan, it is rapid and convenient to install and exchange and has the durable character.
5.Equipped with glue pad correcting device, the rugged glue pad can be repaired three or four times, so the cost is saved.

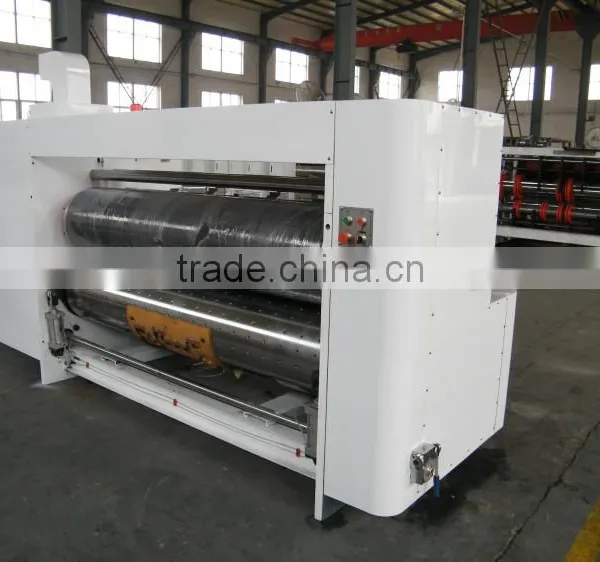

6.Differential speed compensation devices are equipped, which makes rubber-covered roller synchronize with the line speed of the stencil surface no matter how it changes.
7.Rubber-covered roller has the function of transverse repeated circulatory movement, has the differential function in the circumferential direction, so it makes each cut not stay in the same place.

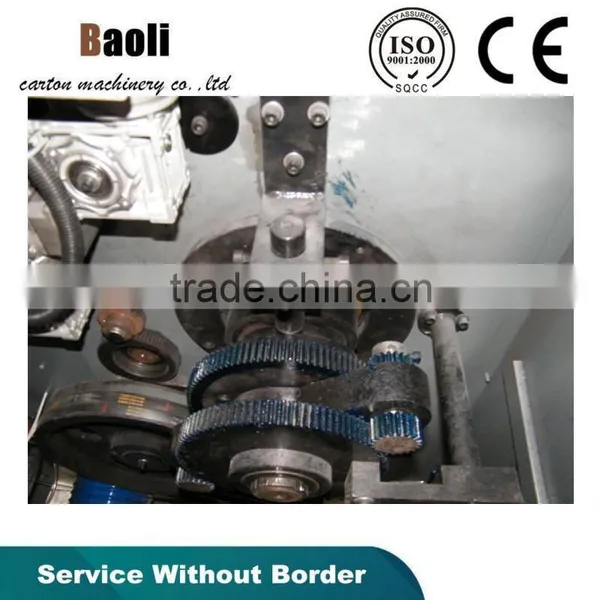

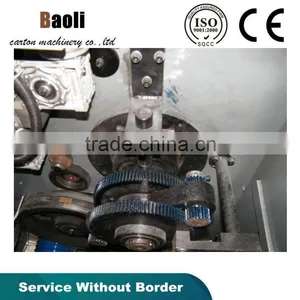

8.Epicyclical gear phase structure can make 360° positive and negative adjustment at the dynamic or static state electronically. (Optional: digital display)

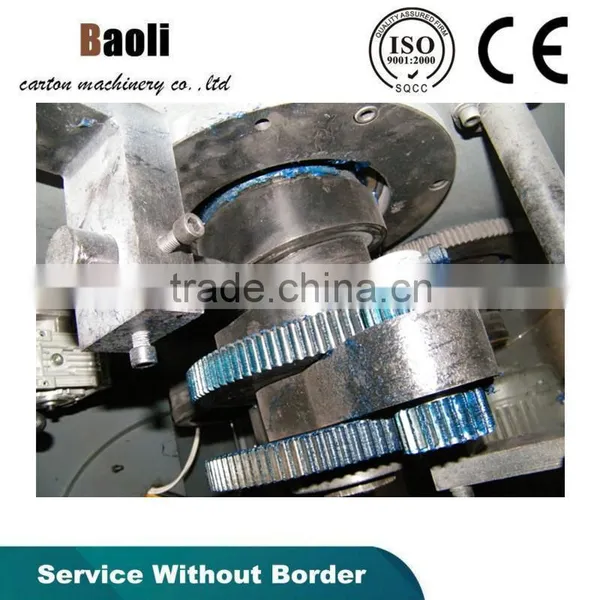

9.Transmission gears surface is grinded accurately after it is conducted high frequency treatment, with adoption of spraying lubrication oil supply system, so it will make the gear work without abrasion for long time, and ensure the machine precision.
Technical Diameter:
Model | Max feeding size(mm) | Min feeding size(mm) | Thickness of feeding paper(mm) | Power of main mator(kw) |
YMJ-1600 | 1600*1350 | 300*500 | 1-8(3-5layer) | 4.0 |
YMJ-1800 | 1800*1350 | 300*600 | 1-8(3-5layer) | 5.5 |
YMJ-2000 | 2000*1600 | 400*600 | 1-10(3-7layer) | 7.5 |
YMJ-2400 | 2400*1600 | 400*700 | 1-10(3-7layer) | 7.5 |
Our services:
1) All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance services and supply of parts and components at cost price.
2) The equipments will be delivered accompanied with detailed installation and operation manual and related information.
Contact name: Cathy yang
Skype: baoli91
Whatsapp: +86 15103371239
E-mail: baoli88 at
Contact with me for more details !
