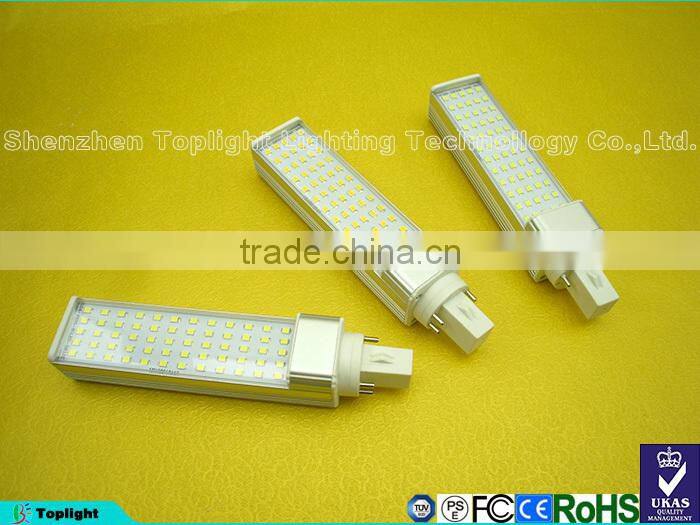

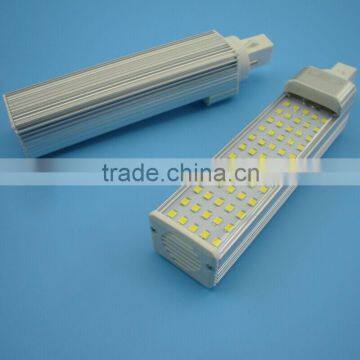

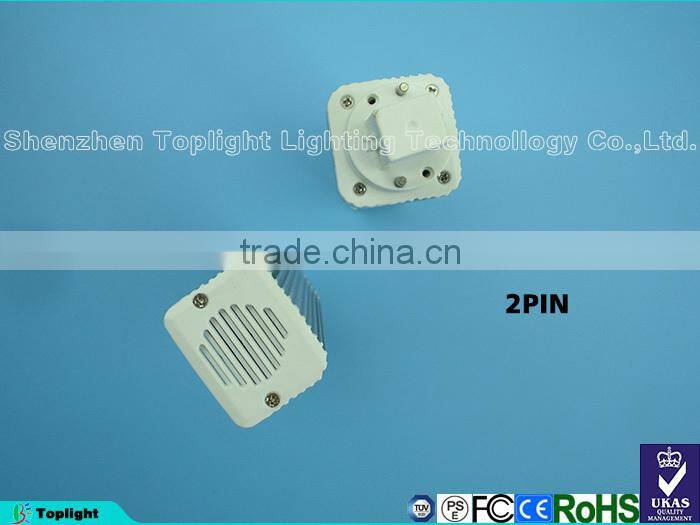

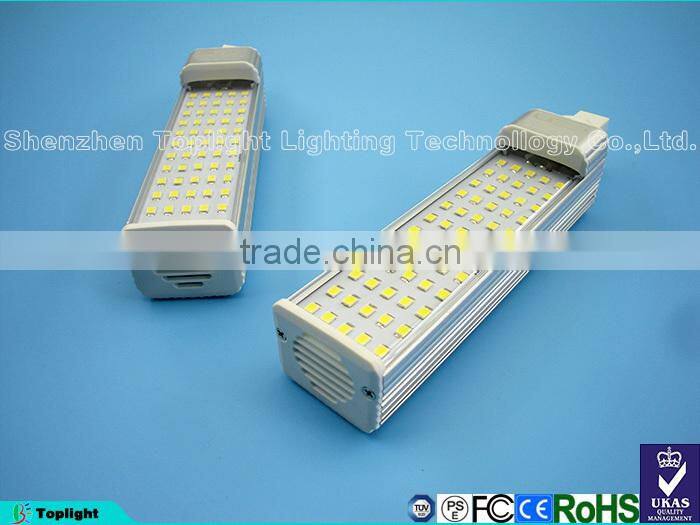

10W LED PL Light 2700k-7000k 2pin/ 4pin PLC LED Light G23/G24 Base
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- Radar Sensor T8 LED Light Tube 9W 12W 18W 22W
- 150cm LED lighting LED Tube Light Fluorescent Replace Led tri proof Lamp Fixture
- CBK Hot-Selling Car wash Tool LED panel light Lighting LED Lights for car care workshop
- CBK hot-selling car wash special lamp car beauty lamp repair shop ceiling lamp
- CBK In-store beauty station lamp honeycomb hot-selling car wash beauty shop lighting
- CBK hot sale square led wall lamp professional car wash auto beauty shop LED lamp
Product Details
LED Light Source: | Epistar smd2835 | Warranty(Years): | 3 | Input Voltage(V): | 90-260 |
Lamp Power(W): | 10 | Lamp Luminous Flux(lm): | 900 | Lamp Luminous Efficiency(lm/w): | 80 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 40 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | IP33 | Certification: | CE, FCC, PSE |
Place of Origin: | Guangdong, China | Brand Name: | Toplight | Model Number: | Other, TP-PL10WA |
Product Description

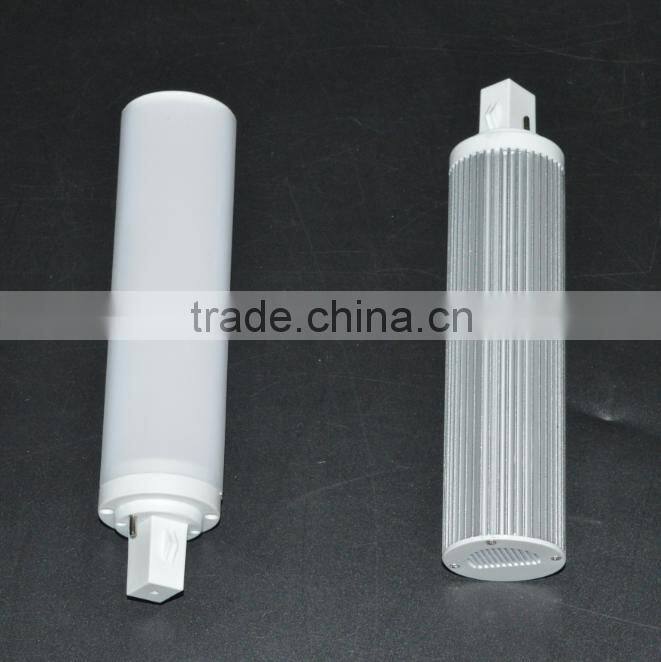

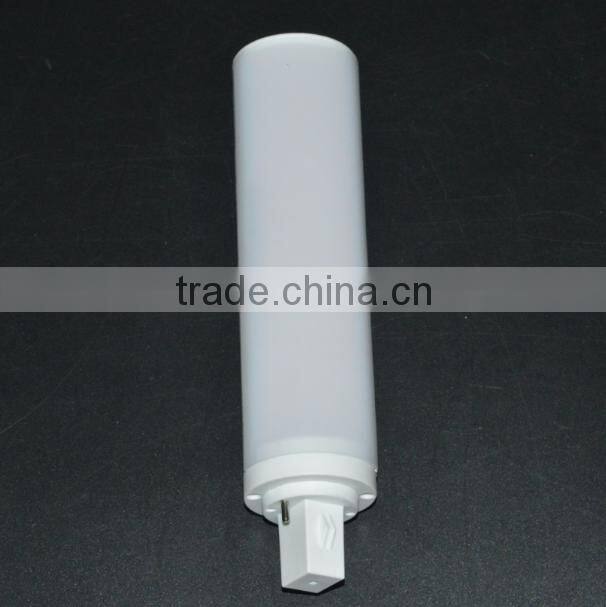

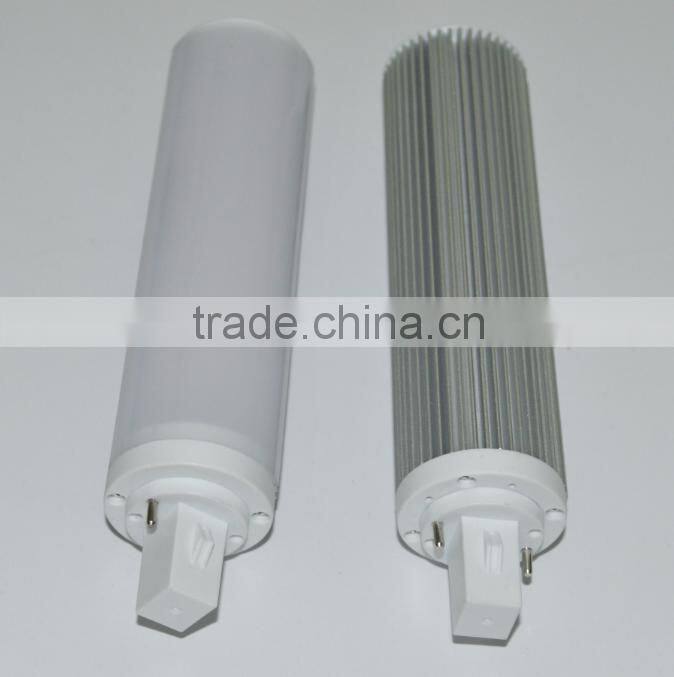

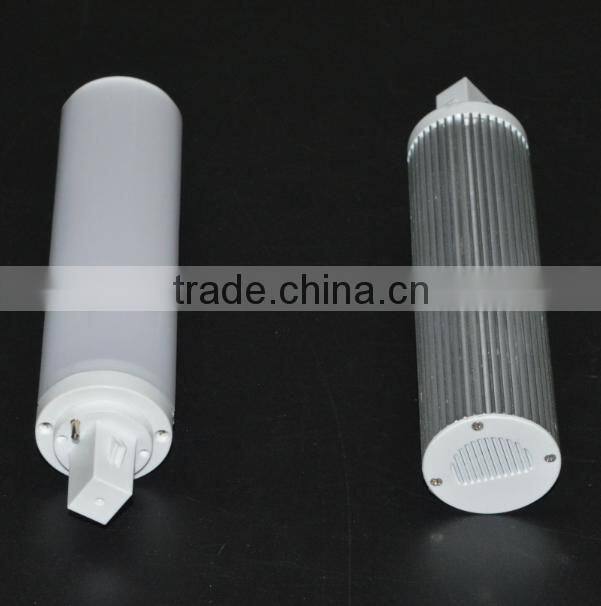

10W LED PL Light 2700k-7000k 2pin/ 4pin PLC LED Light G23/G24 Base
Description:
Product Type: 10W g24 LED PLC Light
Place of origin: China
Model No.: TP-PL10WA
FOB Port: Shenzhen port
Payment Term: T/T or Paypal
Shipping Term: by express, by air or by sea
Delivery Time: 4-7days for sample; 10-20days for bulk
Product Advantages:
1. It can replace the traditional lamp with nice appearance.
2. The plug of the light is G23/G24/E26/E27/B22.
3. The products adopt the connection of AL and PC with inner driver and Aluminum PCB; it is better for heat sink.
G24 9W parameters:
Lamp Size (mm) | Model No. | LED Quantity (pcs) | Luminous Flux (lm) | Socket |
152mm | TP-PL10WA | 50PCS | 800Lm | G23/G24/E26/E27/B22 |
Power | 10W | LED CT | Cool White | Pure White | Warm White |
LED Q'ty | 50PCS | Color Temperature | 6000~6500K | 4000~5000k | 2700~3500K |
LED source | 2835SMD LED | Material | Aluminum and PC cover | ||
Lumen | 740-850 lumens | IP Grade | IP class 30 | ||
Input Voltage | 90 to 260V AC/47~63Hz | Beam Angle | >120 degrees | ||
PF | 100VAC >0.991 | AC | 0.108A/100V 0.048A/220V | ||
220VAC >0.977 | Size | 152*116*28mm | |||
Ra | Ra>80 | Operating Temperature | -20~65℃ | ||
Base | G23/G24/E26/E27 | Lifespan | 50,000 hours | ||
Driver | Isolated (Internal) | Storage Temperature | -20~80℃ | ||
Single Packing | 165*37*37 | PC Cover | Clear/Frosted |

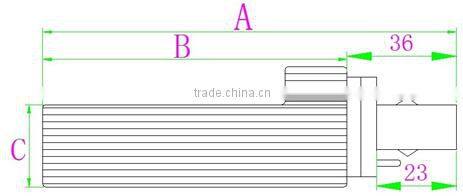

Size informations:
Power | A | B | C |
5 W | 124mm | 88mm | 28mm |
7 W | 124mm | 88mm | 28mm |
8 W | 147mm | 111mm | 28mm |
9 W | 147mm | 111mm | 28mm |
10 W | 152mm | 116mm | 28mm |
11 W | 164mm | 128mm | 28mm |
12 W | 164mm | 128mm | 28mm |
13 W | 192mm | 156mm | 28mm |

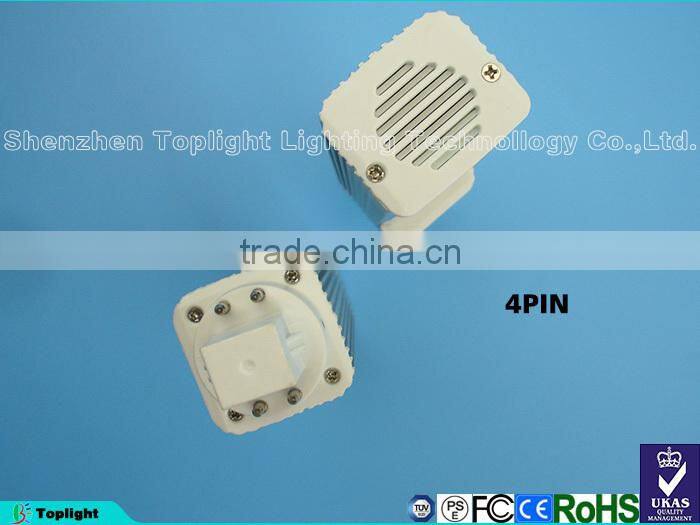

Square G24 PLC Light:
