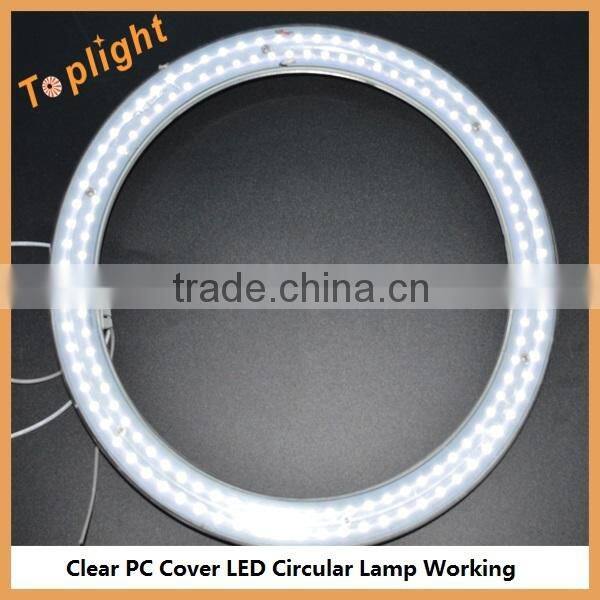

85-277V LED Circline Lamp T9 Annular Lights 8'' 10W

FOB Price

USD $10 - $15 / Piece

50 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

LED Light Source:	SMD2835	Warranty(Years):	3	Input Voltage(V):	85~265VAC
Lamp Power(W):	10	Lamp Luminous Flux(lm):	1000	Lamp Luminous Efficiency(lm/w):	95
Color Temperature(CCT):	Other, cool white, natural white,warm white	Working Temperature(℃):	-20, +40	Working Lifetime(Hour):	50000
Lamp Body Material:	Other, AL+PC	IP Rating:	Other, IP30	Certification:	CE, FCC, PSE
Place of Origin:	Guangdong, China	Brand Name:	Toplight	Model Number:	Other, T9

Product Description

85-277V LED Circline Lamp T9 Annular Lights 8'' 10W

Product Description

2. Paramter

POWER	10W	LED colors	Cool white	Natural white	Warm white
LED quantity	112PCS	Color temperature	6000-6500K	4000~5000K	2700~3500K
LED sources adopted	Epistar 2835 SMD LED	Housing material	Aluminum and PC
Luminous flux	900-1000 lumens	IP code	IP class 30
Input voltage	AC85-277V	Beam angle	>120 degrees
Power factor	>0.95	Dimensions	205mm*30mm±0.5mm(T10 tube)
Light efficiency	>95%	Net weight	0.2 KG
Single Pacakge G.W.		Single Package Size	260mm260mm53mm
Color rendering index	Ra>80	Environment temperature	-20 to 40°C
Socket	G10Q	LED lifespan	50,000 hours
power supply install	Internal	Package	1pcs/box,10pcs/CTN,560280290mm

Models

Item Number	Base	Dimension	Power	CCT	PC cover	Certification
TP-G10SMD205-20	G10Q	T9 205x30mm	10W	2700-6500K	Clear/Frosted	CE,ROHS,PSE

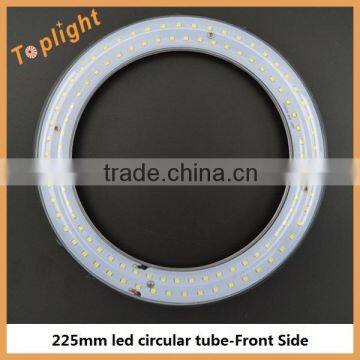

TP-G10SMD225-30	G10Q	T9 225x30mm	12W	2700-6500K	Clear/Frosted	CE,ROHS,PSE
TP-G10SMD300-32	G10Q	T9 300x30mm	18W	2700-6500K	Clear/Frosted	CE,ROHS,PSE

3.Circular led tube Advantages:

1.High quality LED Chip: Taiwan Epistar SMD2835,high brightness 112pcs led.

2.Complete independent Mould, with more professional and unique design.

3.Japanese Imported PC cover and RUBYCON capacitor, longer lifespan.

4.Newest style PCB with seamless connection.

5.Inner heat sink body from 6063 aluminum.

6.Free fee laser marking for your LOGO.

7.CE,RoHS,PSE & 3 years warranty.

4.Aging:

Circle tube light are over 72hours aging , the LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link

Test Data

Installation Instruction

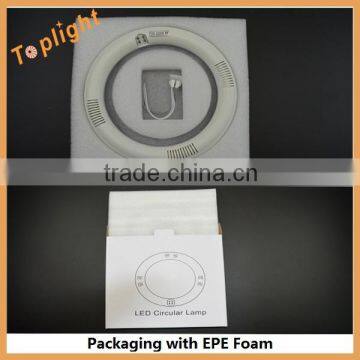

Packaging & Shipping

Thank you so much for your time to scan our products,If you are interested in know more,Kindly you contact us freely,Your inquiry will be replied in 24hours.

------------------Welcome to visit our factory !
