Specifications
2inputs /2 Thru and 8outputsStandard 19" Rack, 1.5U
4X16 bit LCD display window

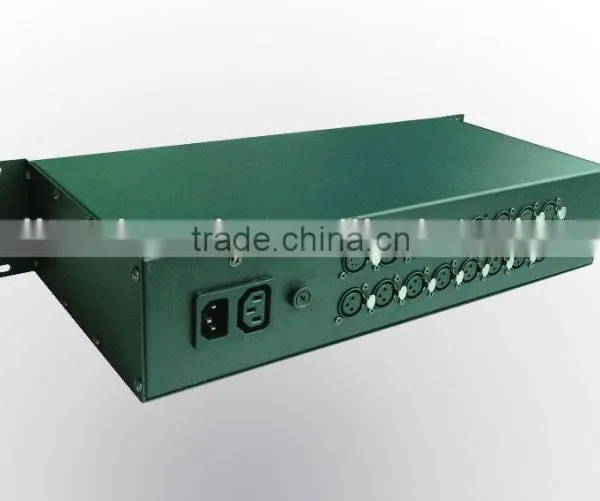

tem Name:DMX Splitter 16 LCD
Item Code: SEC6016c
Brand Summitlite
Features:
*2inputs /2 Thru and 8outputs
*Standard 19" Rack, 1.5U
*4X16 bit LCD display window
*Self-test each channel
*Self-identify if "ok "or "error" after DMX signal connection.
*Fully compliant to DMX-512 (1990)
*Each DMX output with independent driver
* The DMX value adjustable for each channel
* 3pin and 5pin DMX 8 way Outputs
*100% electrical isolation between in/output
*100% electronic isolation between output/output
*Signal & power LED indicator for each output
*Terminator resistor switch for end of a DMX chain
*Power input via IEC connector on rear panel
*Removable truss mount or wall mount
Technical Info:
Power input: AC120V-240V 50Hz/60Hz
Consumption: 10W
Dimensions: 482x 150 x 110mm
Weight: 3.5KG
