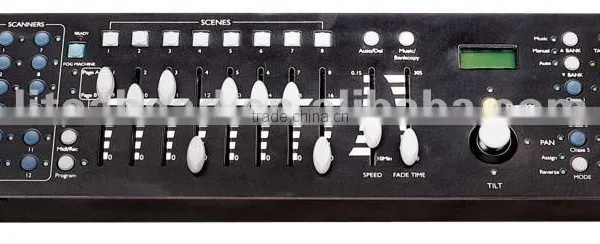

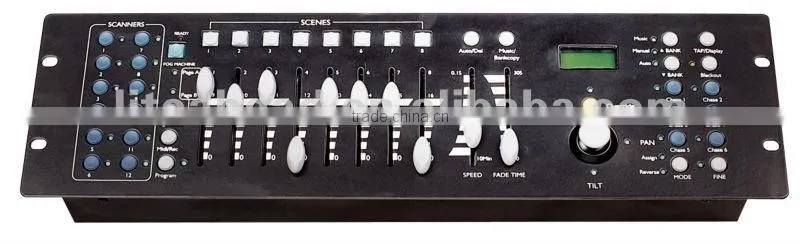

Help CenterStage Light 192CH DMX Controller SEC519a
Related Products
-
Stage Racked 48CH DMX ControllerNegotiableMOQ: 100 Pieces -
Stage Racked 24CH DMX ControllerNegotiableMOQ: 100 Pieces
-
Stage Racked 16CH DMX ControllerNegotiableMOQ: 100 Pieces
-
42 Chase Multifunction DMX ControllerNegotiableMOQ: 100 Pieces
-
T-bar 16CHASE DMX CONTROLLER MIDI VersionNegotiableMOQ: 100 Pieces
Specifications
12 scanners of 16 channels each.30 banks of 8 programmable scenes .
6 programmable chases of 240 scenes each .
Name: 192CH DMX CONTROLLER
Code: SEC5192A
Brand: SUMMIT
Item Name: Club 192CH DMX CONTROLLER
Item Code: SEC5192a
Summitlite Entertainment Controller Series Introduction:
Summitlite Entertainment Controller DMX 512 Series are a popular and standard DMX 512 controller system. Compatible to international universal DMX512 signal protocal(USITT , ESTA)
Summitlite International Support a wide range of standard DMX controller in most of small or professional Stage and DJ venue.
Meanwhile, Summitlite put the Power pack(SEC1XXX) and Dimmer pack(SEC20XX), Dimmer controller(SEC22XX&SEC23XX), Chase controller(SEC24XX&SEC25XX), and Strobe Controller(SEC26XX) even DMX distributor packSEC(60XX) under this family to make Summitelite as a integrated solution for stage builder and designer or our distributors.
All above items are mainly support our client on OEM solution with a reliable service and stability of quality.
The Summitlite DMX controller is all round use and programable DMX console. Hi-quality slader, lianear dimmer 0~100% or DMX value 0~255, LED Display LED interference. We the the profesional version SEC5XXX sereies and stage standard series SEC3XXX sreise. All Channel Fixture Buttons and similar information in similar types of controllers.
SEC5192a Product Features:
* 12 scanners of 16 channels each
* 30 banks of 8 programmable scenes
* 6 programmable chases of 240 scenes each
* 8 sliders for manual control of channels
* Assignable joystick for ease of movement
* File dump allows data to be sent or received between two units
* Auto mode program controlled by speed and fade time sliders
* Fade time / assign fade time
* Reversible DMX channels fixture to react in opposition to others in a chase
* 8 channel or 16 channel mode
* Fine adjustment for joystick pan and tilt
* Blackout master button
* Manual override button allow you to grab any fixture on the fly
* Built in microphone for music triggering
* Midi control over banks, chases and blackout
* DMX polarity selector
* Power failure memory
* Fog machine connector
Product Specification:
DMX output channels 192
Power input DC 9-12V 300ma min
Audio input by built-in microphone or line in, 100mv-1vpp
DMX output 2 (1 3-pin XLR female, 1 3-pin XLR male)
Midi 5-pin DIN
Voltage AC 120/240V 50/60Hz
Dimensions L516 x W160 x H90mm
Weight 2.7 kg
