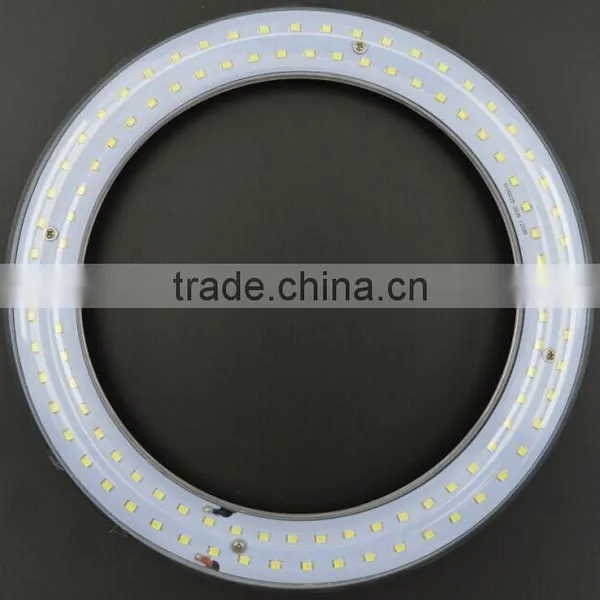

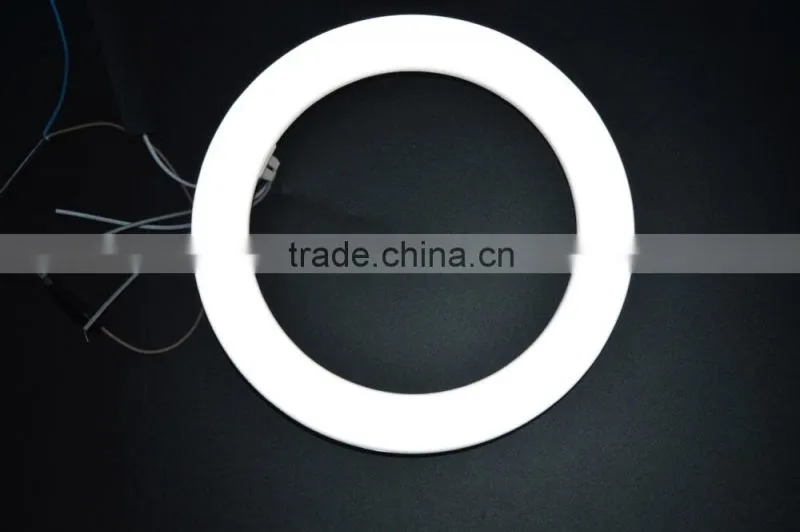

3 years warranty 18W G10Q 4pin LED 300mm circular Tube
T9 Tube & G10Q Socket LED Circular Ceiling light
TP-G10SMD205-20(11w), TP-G10SMD225-30(12w),TP-G10SMD300-32(18w)
1. Payment by Paypal/TT/Wester Union.
2. Free sample offer & Small order welcomed.
3. 24*7 After Sales Service.
4. Customized design is available,OEM and ODM are welcomed.
5. Laser label and Paper label for choose.
Trade Terms
Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
Lead time for 100~500pcs: 7days, 500~1000pcs:10days
Sample can be delivered in 3 days
Shipping port: Shenzhen/Hongkong
| Model number: TP-G10SMD300-32 |
| Power: 18W |
| LED Source: smd2835/150pcs |
| Colors: WW(2700k-3500k),NW(4000k-4500k),CW(6000k-6500k) |

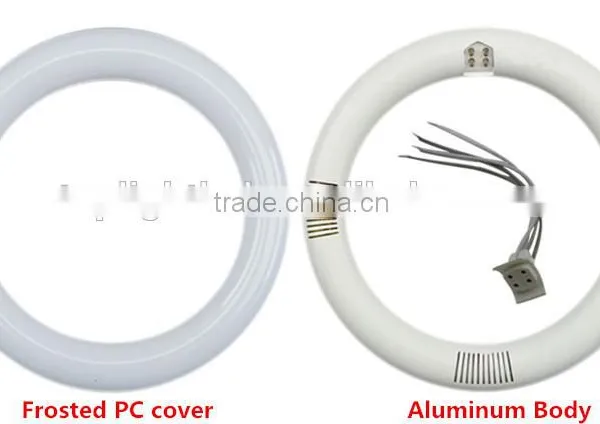

| Housing material: Aluminum and PC |
| Efficiency: 95-100lm/w |
| Voltage: 85-277VAC |

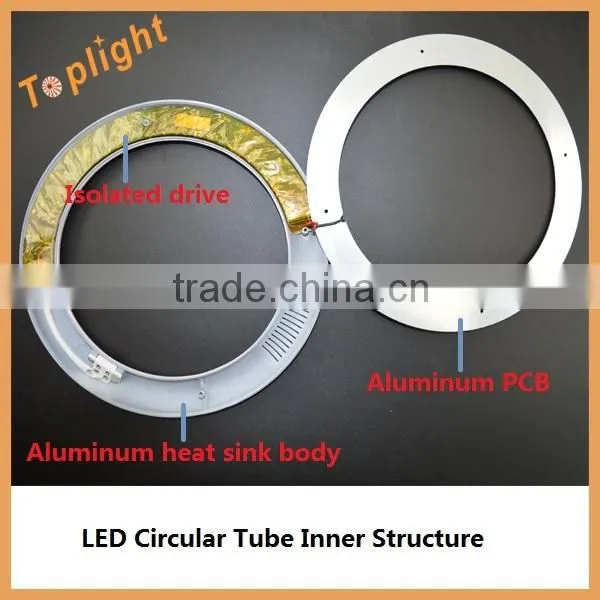

| Driver type: Internal safety isolated driver |
| Power factor: >0.95 |
| Beam angle: 120degrees |
| CRI: >80Ra |
| Lifespan: 50000hours |
LED Circular tube Models for your choose:
|
Tube Length (mm) |
Model No. |
Socket |
LED Quantity (pcs) |
Luminous Flux lm |
205mm±0.5mm |
TP-G10SMD205-20 |
G10Q |
112LEDs |
980-1040Lm |
225mm±0.5mm |
TP-G10SMD225-30 |
G10Q |
144LEDs |
1050-1150Lm |
300mm±0.5mm |
TP-G10SMD300-32 |
G10Q |
150LEDs |
1700-1750Lm |

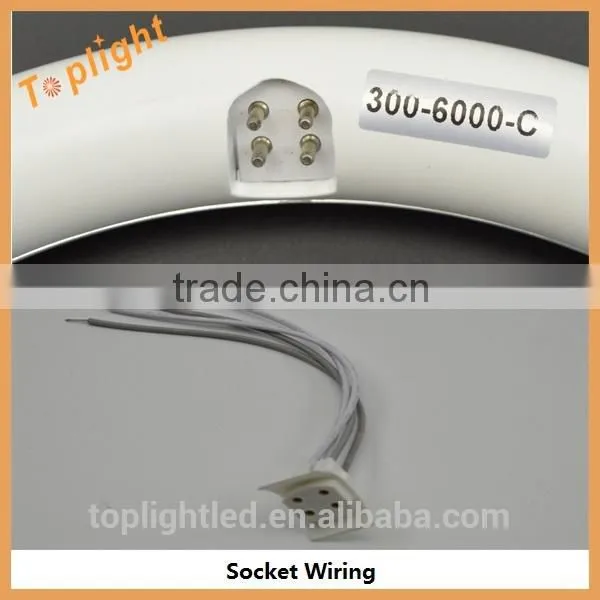

Product installation:
18W Circular T9 LED Tube Light could be installed on the G10Q base lamp.
Kindly Notice: before installing, please make sure the power source is off!

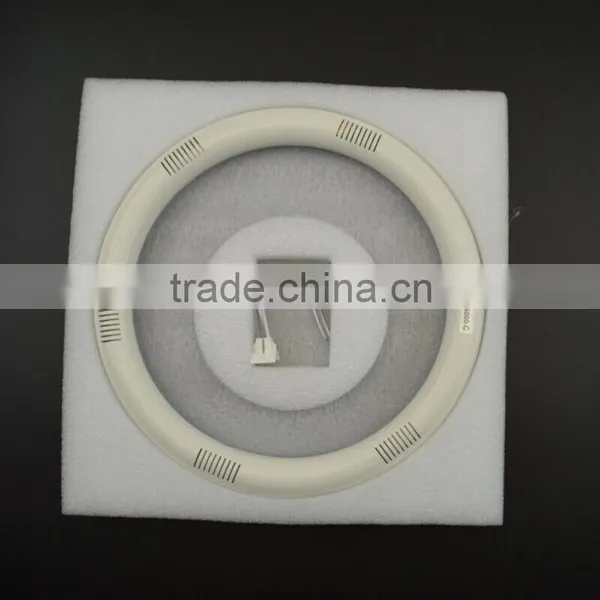

18W Circular tube Size:
Tube Length |
Model No. |
Net Weight |
Packing Size |
Carton Quantity |
300mm*30±0.5mm |
TP-G10SMD300-32 |
0.52kg |
580*290*280mm |
10pcs/CTN |
Welcome to place a sample order for quality testing!
