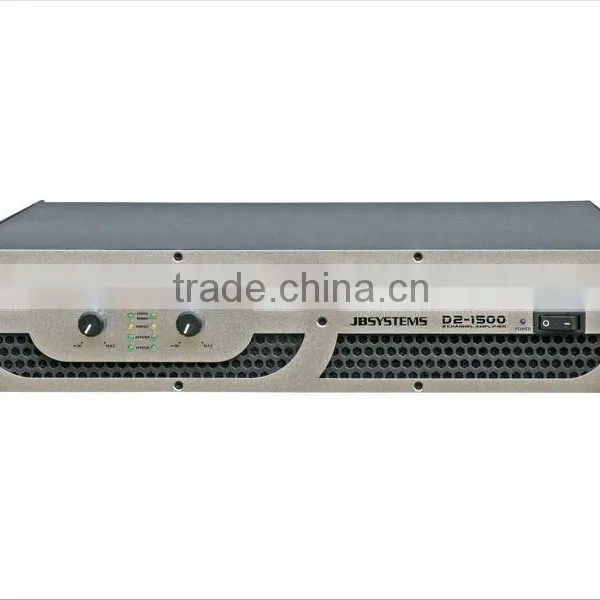

JBSYSTEMS Audio Professional 2-channel Amplifier

Name: JBSYSTEMS Audio Professional 2-channel Amplifier
Brand: JBSYSTEMS
SKU: 114196533

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

JBSYSTEMS

Model Number:

D2-1500

Summitlite International Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shengzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name JBSYSTEMS

Model Number D2-1500

Specifications

Professional 2-channel amplifier with built-in active crossover.
Very compact housing, only 2U (88mm) high

Description

Professional 2-channel amplifier with built-in active crossover.
Very compact housing, only 2U (88mm) high
Oversized power supply guarantees a powerful bass reproduction
Built-in active crossovers: no need for separate crossover units to setup an active system.
Each channel equipped with a 24dB/octave crossover: adjustable crossover point (90~250Hz) and 3 operation modes: HPF (high pass filter) + LPF (low pass filter) + OFF (no filter)
Two amplifier modes: stereo and bridge
Peak limiters can be switched on/off
Soft start power supply
Very efficient cooling
DC fault protection
High temperature protection
Overload and short circuit protections
Balanced XLR inputs
XLR-outputs: daisy chaining of several amplifiers
3 Speakon® outputs: left + right channels + bridge

Power stereo 8Ω (1kHz, THD+N < 0,1%) 2x 500Wrms
Power stereo 4Ω (1kHz, THD+N < 0,1%) 2x 75Wrms
Power bridge 8Ω (1kHz, THD+N < 0,1%) 1500Wrms
Freq. Resp. (+/-0.5dB): 20-20.000Hz
Active crossover: Built-in 24dB/oct. crossover 90~250Hz
Input sensitivity: 770mV
Input impedance: 20kΩ Balanced, 10kΩ un-Balanced
S/R ratio: >90dB
Damping factor 8Ω/1kHz:> 600
Cooling: Dual speed fan cooling
Input Connections: Balanced XLR
Output Connections: 3 Speakon® for Stereo & Bridge Output
Power Supply: 230Vac / 50Hz
Dimensions (mm): 482 x 473 x 88
Weigth (kg): 20.5
THD: < 0.1%
Crosstalk @ Rated Output 8Ω/1kHz: < 75dB
Protection: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse Thermal Cut
