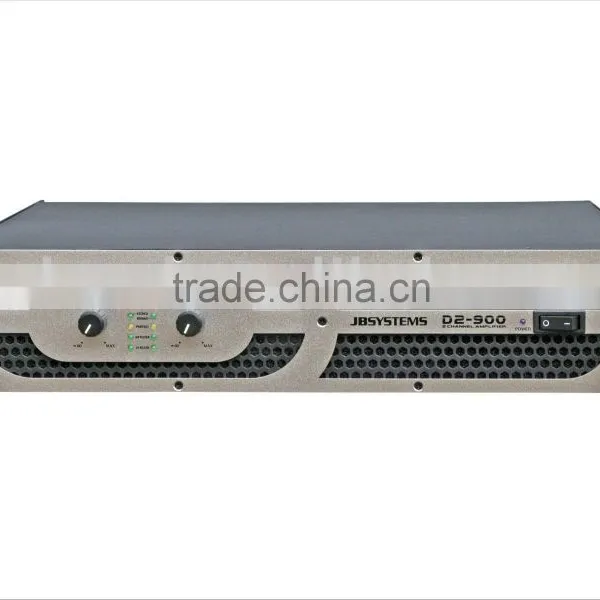

Digital Power Amplifier D2 900

Digital Power Amplifier D2 900 thumbnail-1
Digital Power Amplifier D2 900 photo-1
US$ 1 - 599 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JBSYSTEMS
Model Number:
D2 900
Contact Supplier Request Quote Chat Now
Summitlite International Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China local port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JBSYSTEMS
Model Number D2 900

Specifications

Amplifier,
2-channel
built-in active crossover,
3 speakon outputs,
high temperature protection,

professional amplifier, 2 channel amplifier, power amplifier



Brand: JBSYSTEMS

Item code:D2-900

Item name: Pro 2-channel amplifier



 Product Description



       Professional 2-channel amplifier with built-in active crossover.
       Power stereo 4Ω (1kHz, THD+N
       Power bridge 8Ω (1kHz, THD+N
       Very compact housing, only 2U (88mm) high
       Oversized power supply guarantees a powerful bass reproduction
       Built-in active crossovers no need for separate crossover units to setup an active system.
       Each channel equipped with a 24dBoctave crossover adjustable crossover point

       (90~250Hz) and 3 operation modes HPF
       (high pass filter) + LPF (low pass filter) + OFF (no filter)
       Two amplifier modes stereo and bridge
       Peak limiters can be switched onoff
       Soft start power supply
       Very efficient cooling
       DC fault protection
       High temperature protection
       Overload and short circuit protections
       Balanced inputs with XLR connectors

       XLR-outputs daisy chaining of several amplifiers
       3 Speakon outputs left + right channels + bridge
       3 models with different output power available


:: Technical Information



       Power stereo 8Ω (1kHz, THD+NPower stereo 4Ω (1kHz, THD+NPower bridge

        8Ω (1kHz, THD+NFreq. Resp. (+/-0.5dB) = 20-20.000Hz
       Built-in active crossover = 24dB/oct. crossover 90~250Hz
       Input sensitivity = 770mV
       Input impedance = 20kΩ Balanced, 10kΩ unbalanced
       S/R ratio = >90dB
       Damping factor 8Ω/1kHz >600
       Cooling Dual speed fan cooling
       Input Connections = XLR (bal and unbal)
       Output Connections = 3 Speakon for Stereo & Bridge Output
       Power Supply = 230Vac / 50Hz
       Dimensions(mm) = 482 x 473 x 88
       Weigth (kg) = 17
      THD: Crosstalk @ Rated Output 8Ω/1kHz = Protection: Soft Start, Short Circuit,

        Limiter, DC Fault, AC Line Fuse Thermal Cut
