Home > Lights & Lighting > LED Interior Lighting > LED Tube > 110V 230V 277V 2G11 Base 542mm Replacement Led pl Lamps
110V 230V 277V 2G11 Base 542mm Replacement Led pl Lamps
US$ 1 - 15
MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD3528/2835
Warranty(Years):
3
Input Voltage(V):
85-277
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Price AC85V-277V 8w 12w 15w 18w 22w 4 Pin Led pl 2g11NegotiableMOQ: 100 Pieces -
Double/single Pipe 542mm LED 2g11 18w Tube 4pin LightUS$ 8 - 12MOQ: 35 Pieces
-
Internal Driver LED 2G11 15W 417mmUS$ 8 - 12MOQ: 35 Pieces
-
41cm LED 2G11 Light 15W 4pins PLL LED LampUS$ 8 - 12MOQ: 35 Pieces
-
180 Degree 2G11 LED Tubo 15Watt 417mmUS$ 8 - 12MOQ: 35 Pieces
LED Light Source
SMD3528/2835
Warranty(Years)
3
Input Voltage(V)
85-277
Lamp Power(W)
18
Lamp Luminous Flux(lm)
1850
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Cool White
Working Temperature(℃)
-20, 40
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP44
Certification
CE, FCC, PSE
Place of Origin
Guangdong, China
Brand Name
toplight
Model Number
Other, TP-HI535-275-18W
110V 230V 277V 2G11 base 542mm replacement led pl lamps

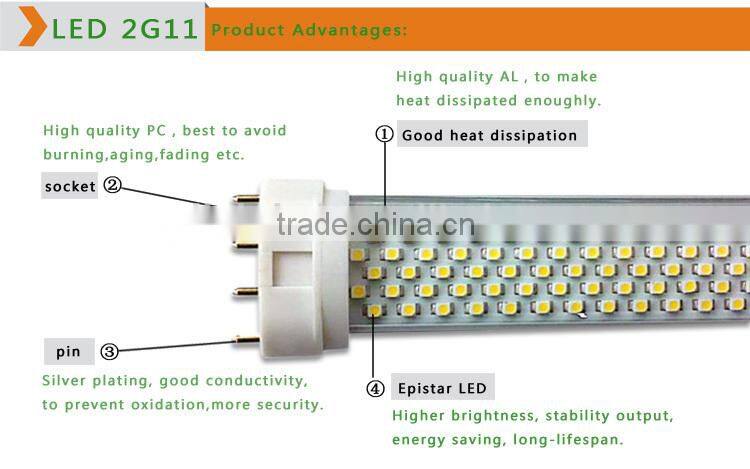

Advantage:
Price: resonable price
Good material: Epistar 3528/2835 SMD LED+ Aluminium board
Hight quality : Effective lighting, efficient heat dissipation, low power consumption CE/ROHS
Good service: 3 year warranty
2G11 led tube parameters:
| CFL replacement 4PIN 2G11 base led pl lamp | |||||
| Model | TP-HI225-08W | TP-HI320-12W | TP-HI415-15W | TP-HI535-18W | TP-HI535-22W |
| Power(W) | 8W | 12W | 15W | 18W | 22W |
| Luminous Flux | 700-800Lm | 1050-1150Lm | 1200-1350Lm | 1600-1700Lm | 1950-2150Lm |
| Replace cfl | 18W cfl | 24W cfl | 36W cfl | 40W cfl | 55W cfl |
| Overall Length | 227mm | 322mm | 417mm | 542mm | 542mm |
| Net Weight(kg) | 0.17kg | 0.24kg | 0.29kg | 0.38kg | 0.38kg |
| Led chip | Epistar smd 2835 chip | ||||
| CRI(Ra) | Ra>80,Ra>70 optional | ||||
| Lamp Base | 2G11,GY10Q optional | ||||
| Cover Material | Frosted PC or Clear PC | ||||
| Lamp body | Aluminum,good heat dissipation | ||||
| Color Temp | 2700K ~ 6500K(Warm white,pure white,cold white) | ||||
| Beam Angle | >120 degree | ||||
| Power Factor | PF>0.9 | ||||
| Input Voltage(V) | AC100-245V or AC85-277V | ||||
| Frequency(Hz) | 50~60Hz | ||||
| Life Span(H) | 50,000h | ||||
| Quality guatantee | 3 years warranty | ||||
| Certification | CE&ROHS | ||||
| Work Temp(°C) | -20°C~+45°C | ||||
| Storage Temp(°C) | -40°C~+85°C | ||||
| Features | Work with AC line directly | ||||

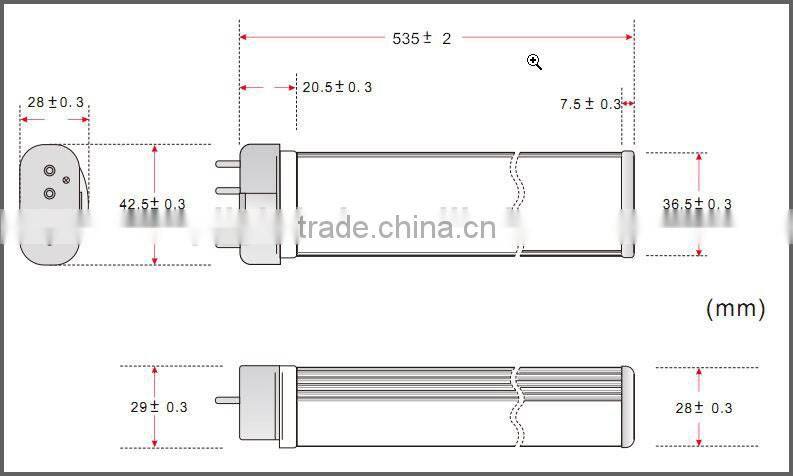

Dimensions:

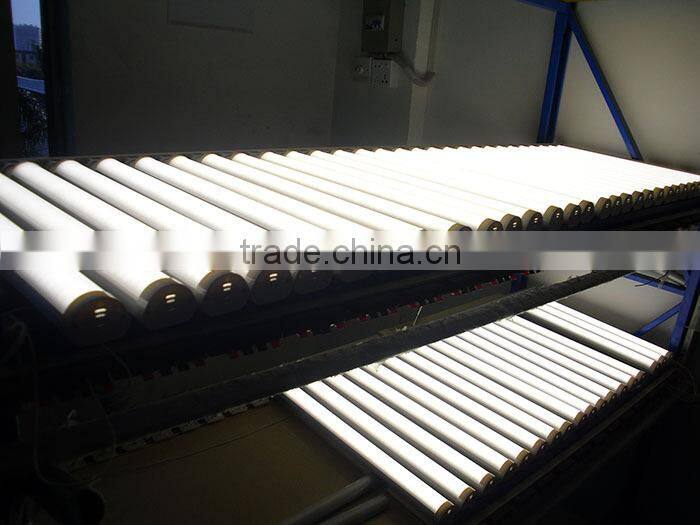

Aging Test:
LED 2G11 tube light light's aging time is over 72hours, LED tube lights' efficiency will improve better in the aging, and contribute to the efficiency of late use stability. LED in product quality control aging test is a very important link.
Packaging & Shipping:
Inner white box package + External carton packge
Shipping by DHL,UPS,FEDEX,TNT,EMS etc
