LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp

LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp thumbnail-1
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp thumbnail-2
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp thumbnail-3
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp thumbnail-4
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp thumbnail-5
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp thumbnail-6
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp photo-1
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp photo-2
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp photo-3
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp photo-4
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp photo-5
LED 2G11 Tube Light FPL Tube Replacement 2 Tubes 4 Pin 2g11 Lamp photo-6
US$ 6.5 - 10.8 MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar LED chip
Warranty(Years):
3
Input Voltage(V):
85-277VAC
Contact Supplier Request Quote Chat Now
Shenzhen Toplight Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar LED chip
Warranty(Years) 3
Input Voltage(V) 85-277VAC
Lamp Power(W) 22
Lamp Luminous Flux(lm) 2200lm
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700~6500K
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP33
Certification CCC, CE, EMC, FCC, LVD, PSE
Place of Origin Guangdong, China
Brand Name Toplight
Model Number Other, TP-HI565-168-22W

LED 2G11 tube light FPL tube replacement CRI>80 4 pin 2g11 base 22w!

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp



Product Description

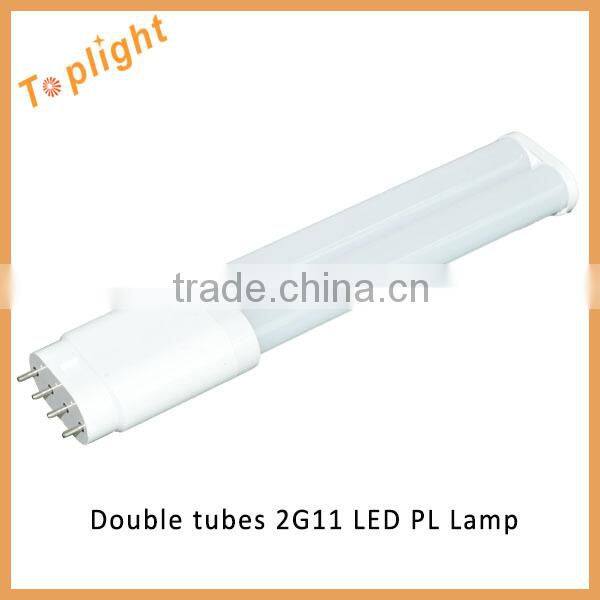

Double tubes 2G11 LED PL Lamp Specifications:

Model No.
 TP-HI565-168-22W

Electrical Parameters

Rated Power
22W
Rated voltage
 AC 85~277V
Rated frequency 50-60HZ
Power Factor >0.95
Driver Type
 Built-in Isolated drive with Rubycon capacitor
Replacement
 Replace 40~60w traditional fluorescent lamp
Power supply
high-performance frequency constant current power supply

Optical Parameters

LED Chip Brand Taiwan Epistar Chip
LED chip quantity 2835SMD 168pcs
Viewing angle
 >120°
Color temperature   2700~6500K
Luminous Flux   2000~2200lm
Light Efficiency
 >100lm/w
CRI
 70~80Ra

Structure

Chip Arrangement
 One or multiple line Design
Lamp Base
2G11/GY10Q
Specific Function
External Driver feasible
Tube Material
PC cover+6063 aluminum
Product Size
L572mm*W47mm*H24.5mm
Heat sink material
 6063 aluminum
PC Cover Kind
Milky/Stripe/Clear
Other Parameters
operating humidity
20-80%  RH no condensation
Temperature Environment
 -20℃~+40℃
Tube surface temperature
 Below 45 ℃
Carton Packaging Size
 L585*W280*H270mm
Life time
50000 hours
Certifications
 CE(EMC,LVD)/RoHS/PSE/FCC
Warranty 3 years







Doulbe tube 2G11 LED lamp Advantages:

1.LED Chip: Taiwan Epistar Chip SMD2835,high brightness,168leds/22w/pc,lumen>2000lm.

2.Complete independent Mould,with more prefect appearance and professional design.

3.Imported PC cover and RUBYCON capacitor from Japanese,which is the highest level.

4.Compatible inductive ballast or electronic ballast, and can directly replace old lamp.
5.Built-in or exernal driver are optional, and offering three designs for built-in driver.
6.Lamp base kind,except 2G11, and GY10Q and others are acceptable.

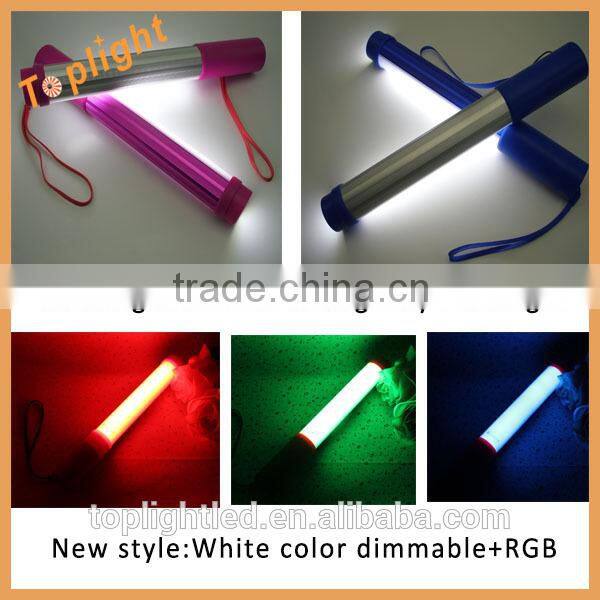

7.White Color temperature and Red,Green, Blue color are feasible.
8.Product Size can be customized according to client's request.

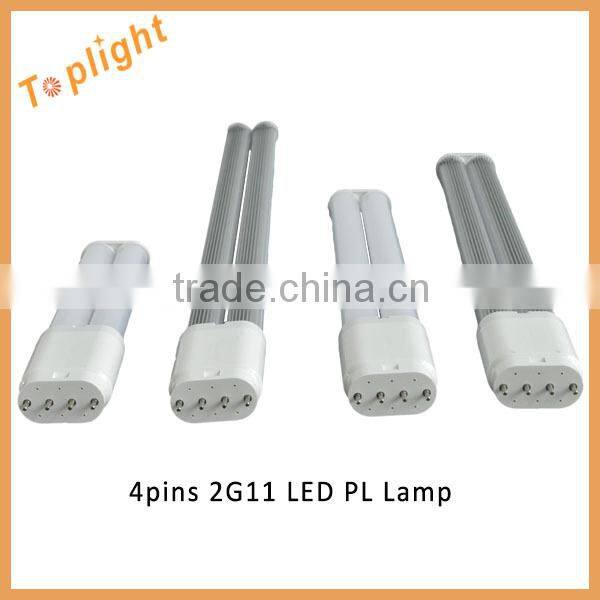

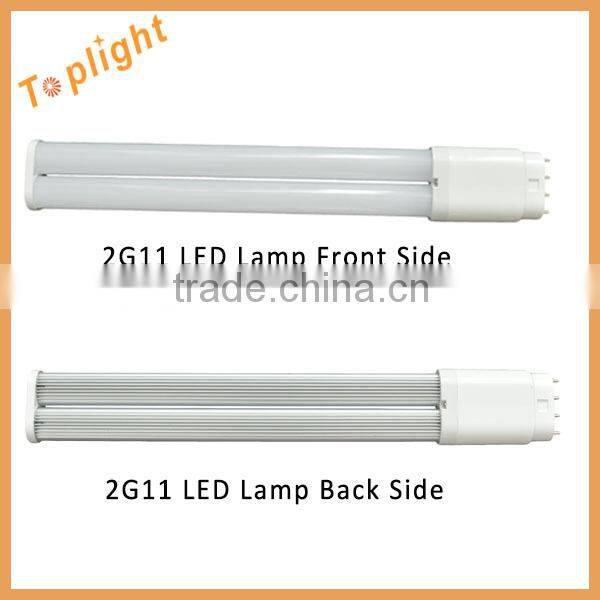

Double tube 2G11 led PL lamp Display:

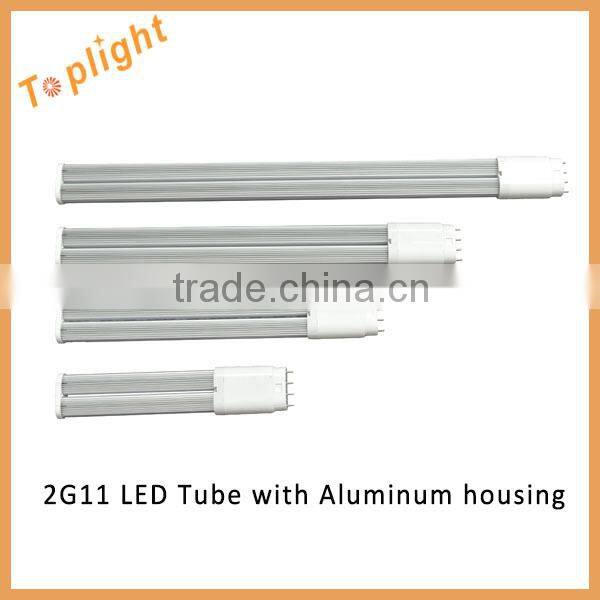

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp

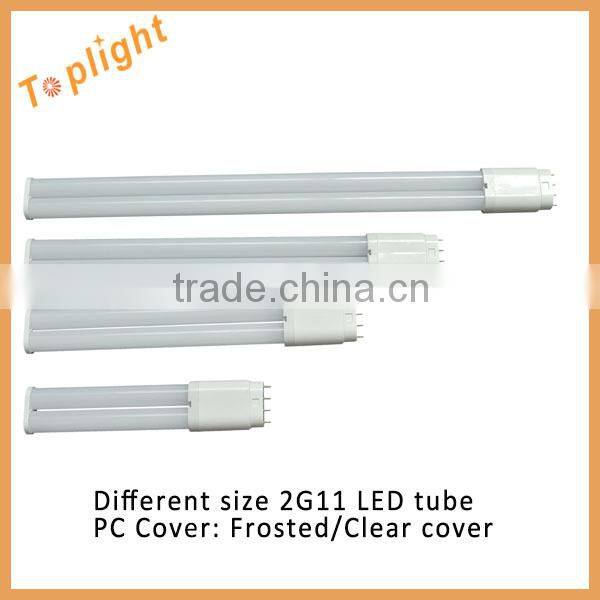

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp



LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp



LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp

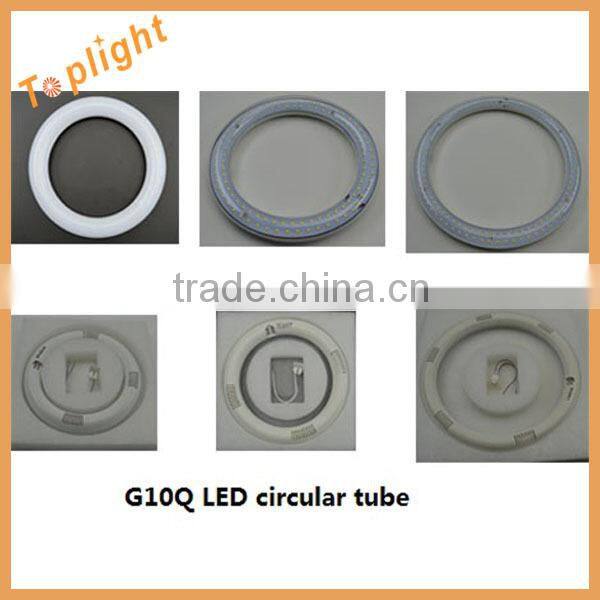

The other two type 2g11 led PL lamp from single tube:

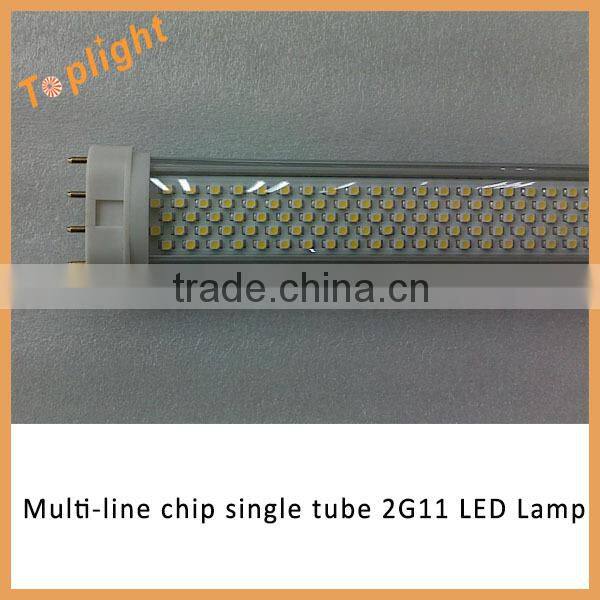

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp

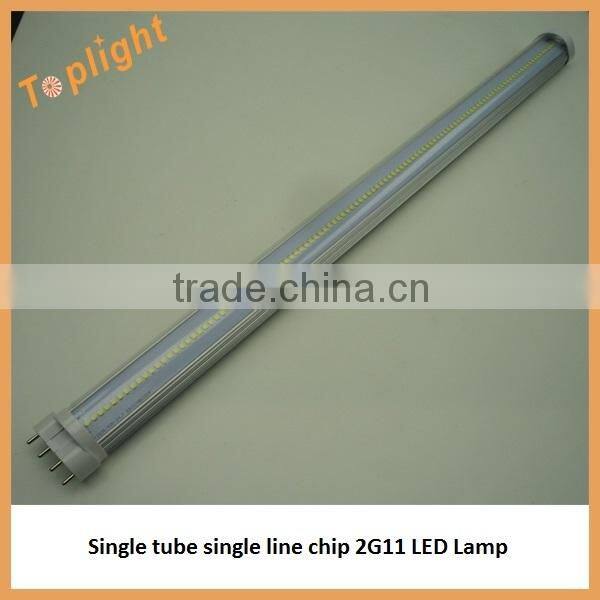

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp



2G11 LED Tube Light Packaging:

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp

2G11 led tube packaging:
The single inner box size: 560*47*35mm; The Carton Size:585*280*270mm; 1pcs/box, 30pcs/carton.

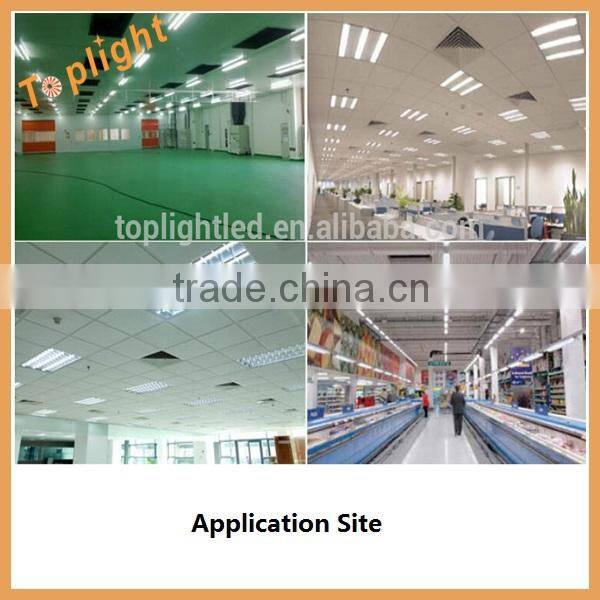

2G11 LED PL Light Application:

2G11 LED PL light main use for indoor lighting, such as, living room, bedroom, kitchen,

washroom, hospital, hotel, Meeting room , Supermarket ,factory,etc.

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp





Our Services

1. Response within 12 hours.

2. Customer label is supported.
3. OEM and ODM orders are welcome.
4. IES files and Dialux lighting design services are available.
 5. The Payment Terms: Paypal, Western Union, Bank Transfer(T/T). 6. Defective items will be compensated immediately or in next order.

7.  The shipping methods: By Express(DHL/FedEX/UPS/TNT/EMS,etc), by air, and by sea.

8. Professional After-sale service:

1). Customers send us details about the damage of goods, such as pictures or video;

2). Damage is reported to engineering and QC department by sales department;

3). Possible reasons of damage and best solutions are suggested to customers;

4). Maintenance or new components or new tubes free of charge to customers within warranty.







Related Products



The following pictures are other hot selling products.

If you are intested in someone products, please directly click the product picture and enter in the related product link and scan product information.

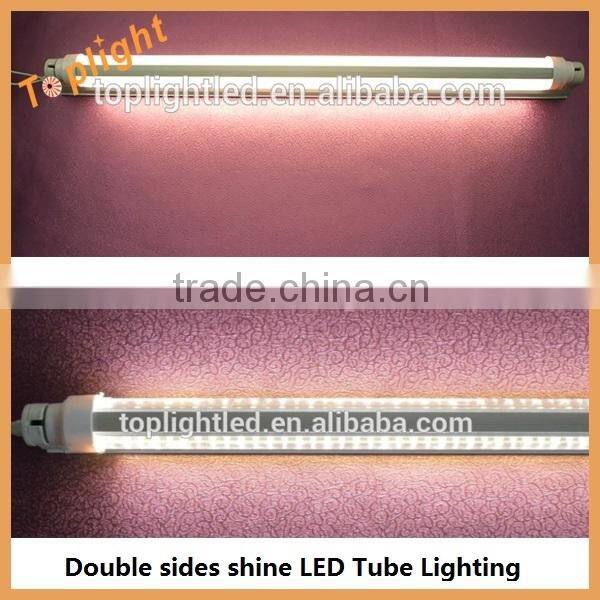

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp

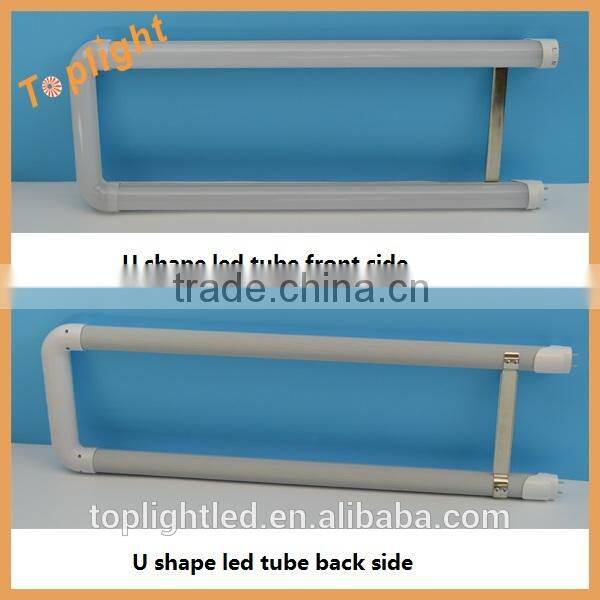

LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp





LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp





LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp



LED 2G11 tube light FPL tube replacement 2 tubes 4 pin 2g11 lamp



Thanks for your kindly attention to us!

We can offer SAMPLES from the factory stock!

Please send your requirement to us, we will reply you within 12 hours.
