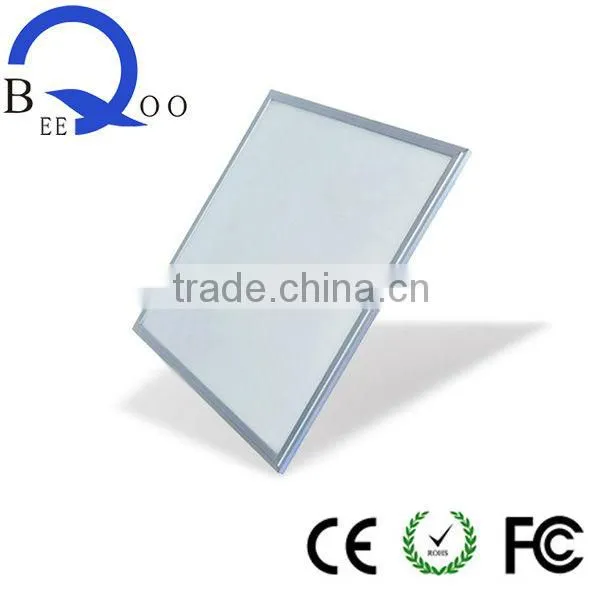

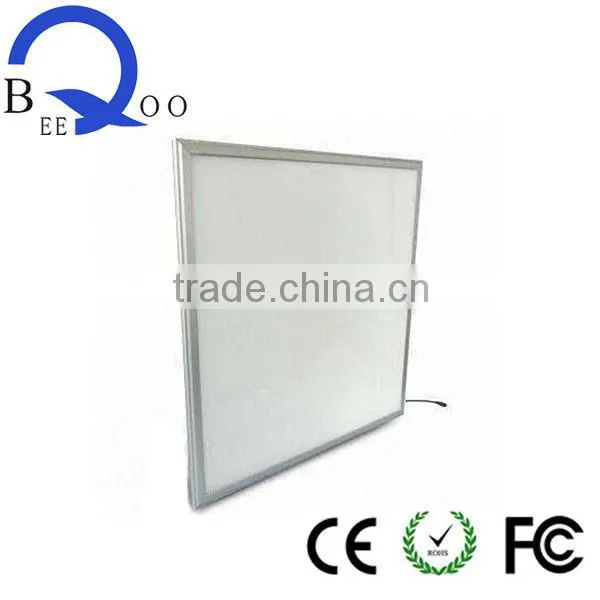

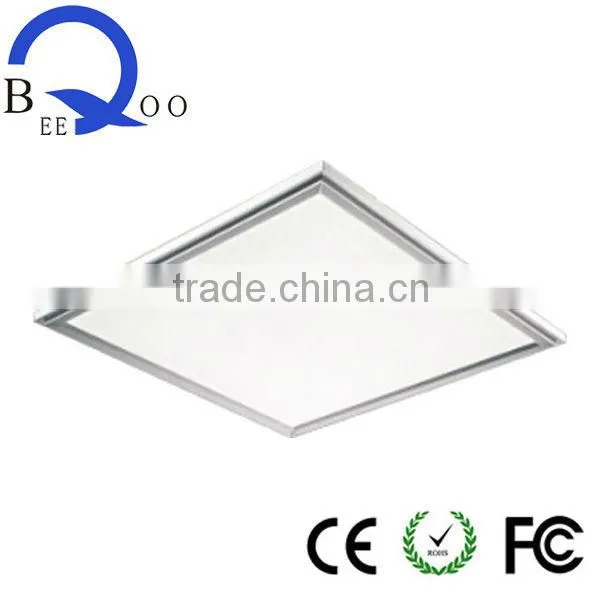

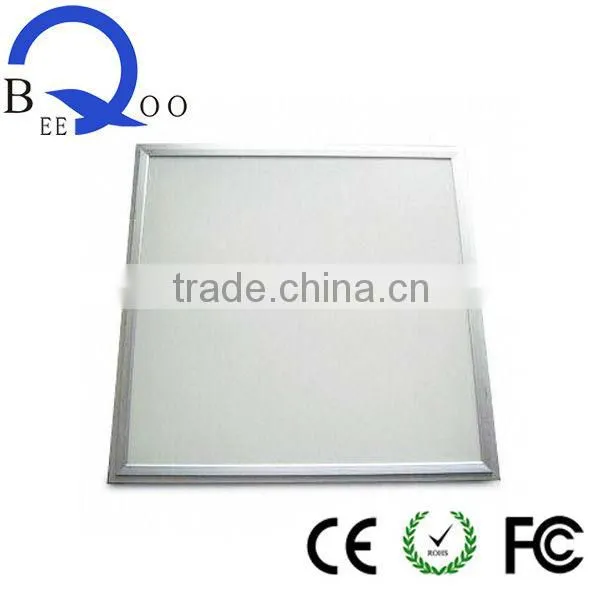

Help CenterAluminum Bridgelux High Brightness 48W 60x60 Led Ceiling Panels With PMMA Cover
Related Products
-
China Bridgelux Powerful 300*600mm Super Thin Recessed 18W Led Panel Light for Office Ligthing With TUV ROHS PSEUS$ 39 - 39MOQ: 1 Piece -
Bridgelux Epistar Led Panel Light,3014 18W Led Panel Light,square 300*300mm Led Panel Light Made in Korea ProductsUS$ 29 - 29MOQ: 1 Piece
-
Arabic Bridgelux High Power ce Rohs Approved Flat 9w Mini Led Ceiling Panel Light KitUS$ 24 - 24MOQ: 1 Piece
-
Amazing Price!!! 2014 Hot Sale 600x600 LED Panel LightUS$ 20 - 50MOQ: 1 Piece
-
CE&FCC&RoHS China Manufacturer 18W Square LED Panel LightUS$ 20 - 50MOQ: 1 Piece
Specifications
led ceiling panels1.Manufacturer
2.CE/RoHS/FCC approved
3.Long lifespan
4. Three years warranty
led ceiling panels details
1. Adopt SMD 3014/2835 LED chip.
2. Lumen efficiency of leds can be 78-85 Lm/W, LED efficiency can be up to 100lm/w.
3. Passed CE, RoHS, FCC, EMC, LVD certifications.
4. We have patent on the design.
5. 3 years warranty for Mean Well driver, 2 years for BEEQOO driver, 3 years for LED chip.
6. Emitting colors available: warm white, pure white, cool white, red, yellow, green, blue, RGB etc.

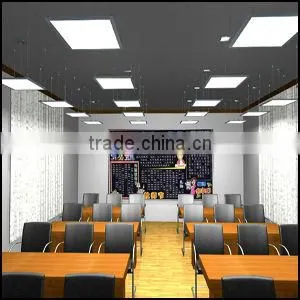

led ceiling panels applications
Widely used in the hotels, advanced clubs, underground car parks, meeting rooms, offices, schools,
factories, commercial lighting, shopping malls, supermarkets, kitchen, corridor, display, backlight, building decorative lighting projects and so on.
led ceiling panels specifications
48w led pannel light specifations
| Item No. | BQ-PNL6060-48W | |||
| Power | 48W | |||
| Input voltage | AC 85-265V/50-60Hz | |||
| LED source | SMD3014 | |||
| LED QTY | 500pcs | |||
| Total harmonic distortion | ≤9% | |||
| Power factor | >0.98 | |||
| LED efficiency | 78-85lm/w | |||
| LED lamp luminous efficiency | 78-85Lm/W | |||
| Color temperature | WW: 2700-3500K | |||
| PW: 4500-5500K | ||||
| CW: 6000-7000K | ||||
| CRI(Ra) | ≥70 | |||
| IP grade | IP40 | |||
| LED junction temperature | ≤70°C | |||
| Ambient temperature | -25°C—45°C | |||
| Material | Aluminium + tempered glass | |||
| Lifepsan | 50,000hrs | |||
| Warranty | 3years | |||
| Certification | CE/RoHS/FCC | |||

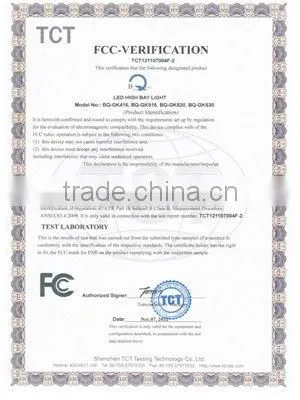

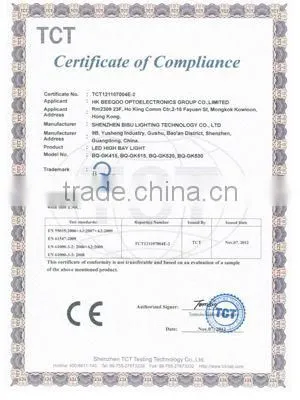

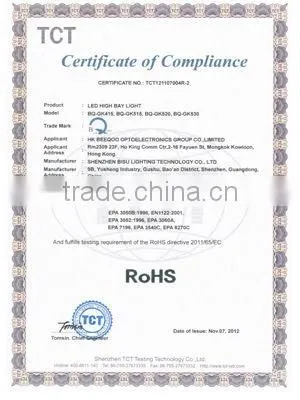

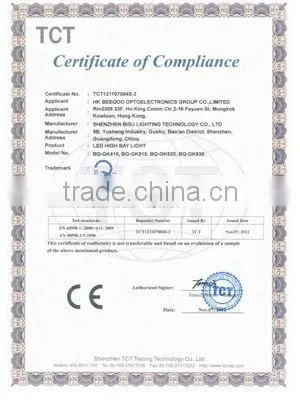

led ceiling panels Certifications
led ceiling panels Additional information
1. OEM and ODM are availble.
2. Your inquiry will be replied within 24 hours by experienced staff.
3. Specific models with unique design can be done on demand and exclusively reserved to your distribution.
4. Detailled cooperation framework can be done case by case to preserve confidentiality and ensure long term partnership.
Visit our website . Do not hesitate to come in our factory or to meet us during our next exhibition.
