Specifications
flat panel led lighting1.Manufacturer
2.Twaiwan Epistar LED chip
3.Many colors available
4.CE/RoHS/FCC/EMC/LVD approved
flat panel led lighting details
1. All adopt SMD3014 LED chip.
2. Lumen efficiency of leds can be 78-85 Lm/W, LED efficiency can be up to 100lm/w.
3. Passed CE, RoHS, FCC, EMC, LVD certifications.
4. We have patent on the design.
5. 3 years warranty for Mean Well driver, 2 years for BEEQOO driver, 3 years for LED chip.
6. Emitting colors available: warm white, pure white, cool white, red, yellow, green, blue, RGB etc.

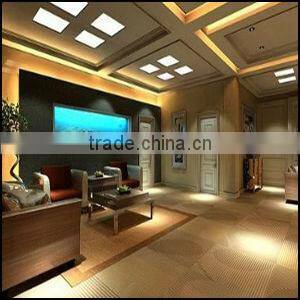

flat panel led lighting applications
Widely used in the hotels, advanced clubs, underground car parks, meeting rooms, offices, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, corridor, display, backlight, building decorative lighting projects and so on.
flat panel led lighting specifications
| Item No. | BQ-PNL3030-18W | |||
| Power | 18W | |||
| Input voltage | AC 85-265V/50-60Hz | |||
| LED source | SMD3014 | |||
| Total harmonic distortion | ≤9% | |||
| Power factor | >0.98 | |||
| LED efficiency | 95-100Lm/W | |||
| LED light luminous efficiency | 78-85Lm/W | |||
| Color temperature | WW: 2700-3500K | |||
| PW: 4500-5500K | ||||
| CW: 6000-7000K | ||||
| CRI(Ra) | >70 | |||
| IP grade | IP20 | |||
| LED junction temperature | ≤70°C | |||
| Ambient temperature | -40°C—45°C | |||
| Material | Aluminium + PC | |||
| Lifepsan | 50,000hrs | |||
| Warranty | 2years | |||
| Certification | CE/RoHS/FCC/EMC/LVD | |||
Certifications
Additional information
1. OEM and ODM are availble.
2. Your inquiry will be replied within 24 hours by experienced staff.
3. Specific models with unique design can be done on demand and exclusively reserved to your distribution.
4. Detailled cooperation framework can be done case by case to preserve confidentiality and ensure long term partnership.
Visit our website . Do not hesitate to come in our factory or to meet us during our next exhibition.
