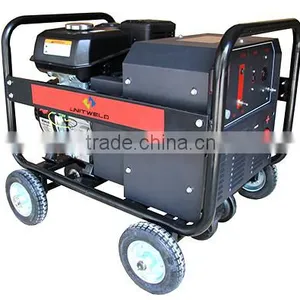

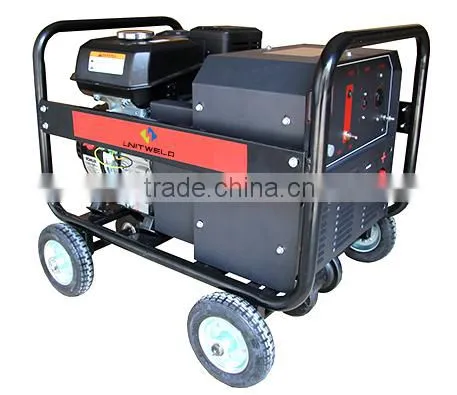

GH 130 ARC Engine Driver 3000W Welding Generator
Feature:
A Welding performance
1.Adopting digital control feedback technology to control current, the current smooth, good dynamic characteristic ,Fast response; Arc length fluctuation is small
2.Easy to start arc, little spatter, stable current, and good formation
3.Welding current as the digital display, can adjust the current , accurately adjusement,good for welding process specification
4.High duty cycle:100%
5.strong arc force, Soft arc
B Generation performance
1.Adopt digital control technology to make small waveform distortion and low distortion rate
2.High efficiency:higher 20% power than the same generator
3.Protection for over load, over hot,
C Machine performance
1.High reliability and practicality: Using all-in-one structural design, simple and reliable structure, durable, easy maintenance
2.Wide using: city, outdoor, high and low temperature environment
Specifications:
| Model | GH130 | ||||
| Welder | Welding type | MMA | engine | Power (hp) | 6.5 |
| No-load voltage(V) | 68 | Air displacement(ml) | 200 | ||
| Rated current(A) | 90 | Valve type | Overhead | ||
| maximum current(A) | 120 | Fire method | CDI | ||
| Current range(A) | 30~120 | Oil tank capacity(l) | 5 | ||
| Duty cycle Imax | 60% | Oil waring system | Exist | ||
| Electrode diameter(mm) | 1.6~3.2 | speed(r/min) | 3600 | ||
| Generator | maximum power(kW) | 3.2 | Fuel consumption(g/hp.hr) | 230 | |
| rated power(kW) | 2.8 | Starting up | Manual starting | ||
| Rated voltage(V) | AC220 | Complete appliance | Insulation class | IP23 | |
| frequency(Hz) | 50 | Size(mm) | 550×460×490 | ||
| Phases | Single phase | Weight (kg) | 45 | ||
