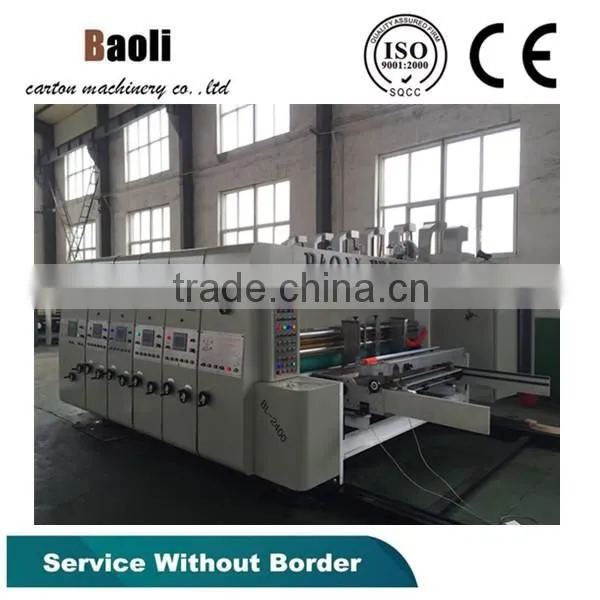

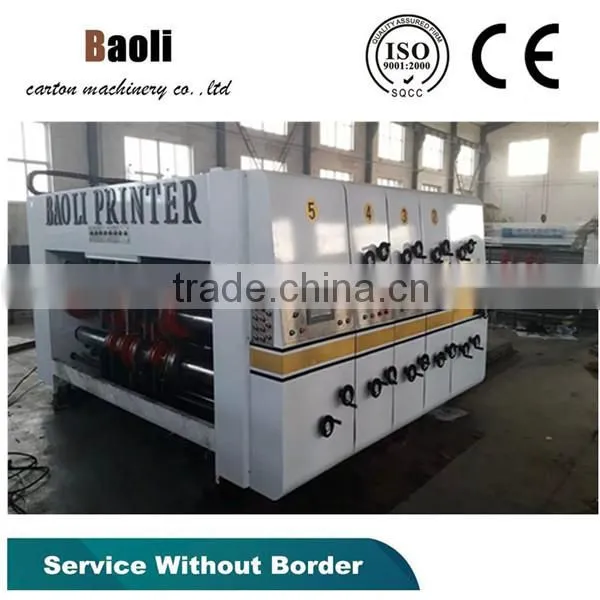

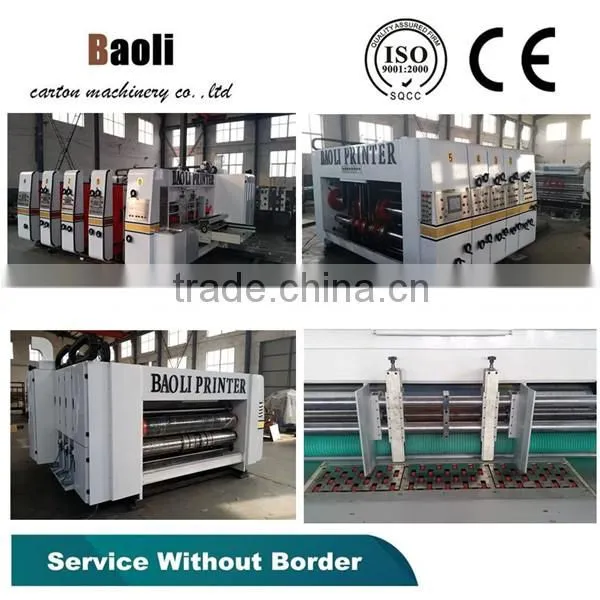

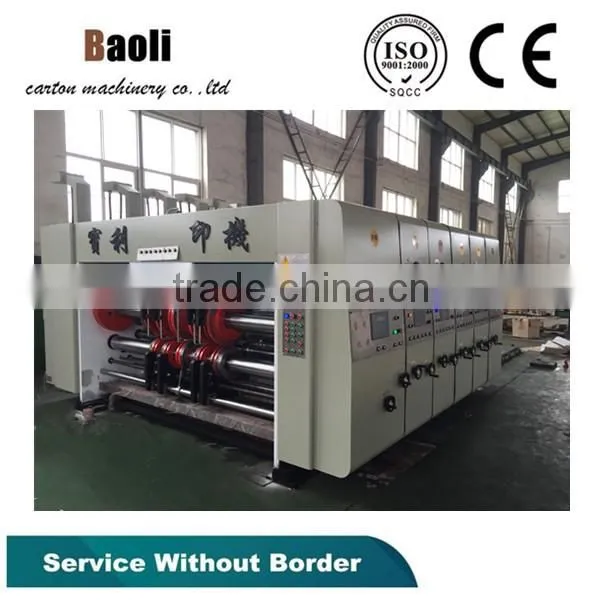

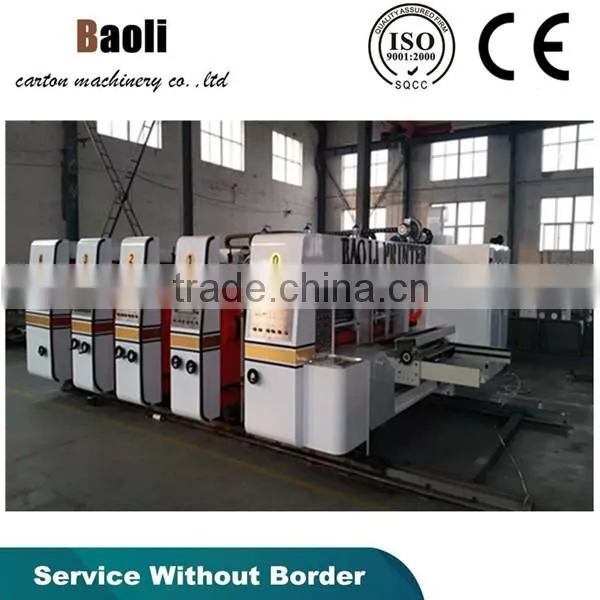

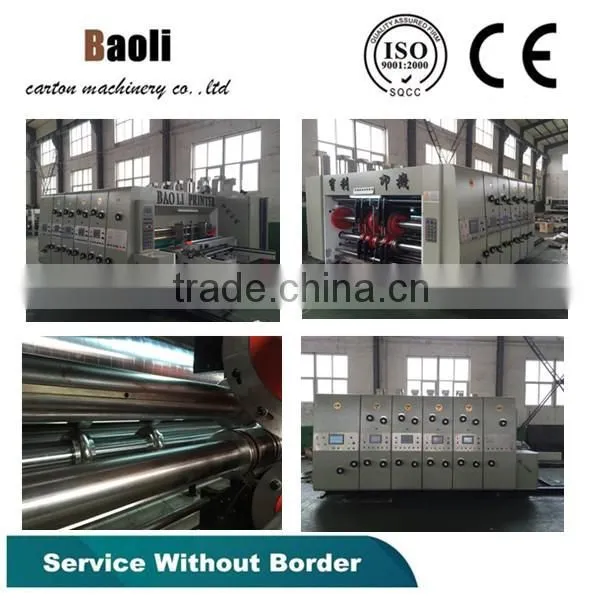

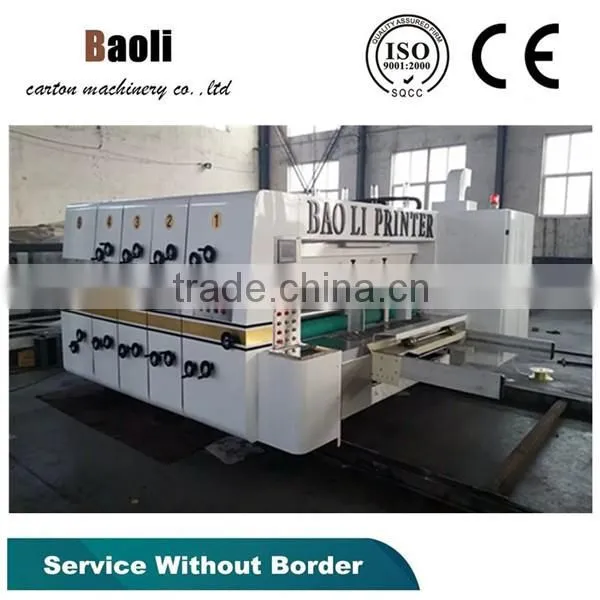

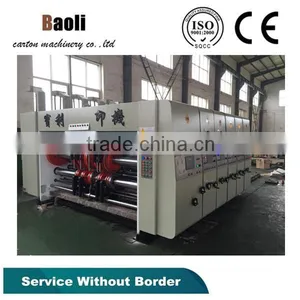

1-4 colors Flexographic printing machine for carton box
Function and characteristics:
1. Whole machine electric parts was choice the domestic famous brand, good quality and steady.
2. Complete machine baffle and important parts used the temper for decrease the metal internal force; and that parts are made by high precision processing center and grinded by digit controlled grinder.
3. All the transmission axles and rollers are made by high-quality steel, and processed through temper and dynamic balance ; plated with rigid chrome and grinded surface.
4. All the transmission gears was used the 45# alloy steel, which is grinded after heat-treatment, and it was made by rubbing, it still maintains the high topping precision.
5. The whole machine undergoes the spray lubrication, intuitionist show setting, setting the double oil pipe balance system.
6. Option: Presetting adjustment function, feeding, printing, slotting, zero setting, memory reposition automatic.
7. Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient.
8. Option the vacuum adsorption, kick feeding or lead edge feeding to the customer request.
Option: Anilox roller, And stacker Machine.
Unction of printing Department
1. All the axle and roller was used the high grade steal , computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface.
2. Printing phases was adopted the planetary gear structure, the electric digit 360 adjustment , show the digit(stop, running can adjustment).
3. Printing roller landscape orientation was adopted the touch screen control, and electric digit
adjustment, the adjustment scope is 20mm.
4. Pneumatic septum pump supply the ink, the ink cup show the quantity.
Hanging plate device , total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
Fixing the oil interval , printing pressure roller, lead roller interval were used the self-lock
worm wheel and worm device adjustment and fix.
Printing phase fix was used the pneumatic brake structure, the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.
8. Option: reposition function, computer memory printing plate position, which can automatic reposition when scrub the plate.
Steel anilox roller, steel face chrome, pressure the anilox and rigid chrome.
Pneumatic uplift plate device, the anilox roller break away pneumatic , smooth the oil automatic when the
mainframe stop, it can prevent the oil dry.
Our services:
1) All the equipments are offered with one year quality warranty. After the guarantee is expired, we offer long-term maintenance services and supply of parts and components at cost price.
2) The equipments will be delivered accompanied with detailed installation and operation manual and related information.
