Advanced Technology Multi Color Automatic Corrugated Cardboard Flexo Printing & Slotting & Die Cutting Machine

Advanced Technology Multi Color Automatic Corrugated Cardboard Flexo Printing & Slotting & Die Cutting Machine photo-1
Advanced Technology Multi Color Automatic Corrugated Cardboard Flexo Printing & Slotting & Die Cutting Machine photo-2
Advanced Technology Multi Color Automatic Corrugated Cardboard Flexo Printing & Slotting & Die Cutting Machine photo-3

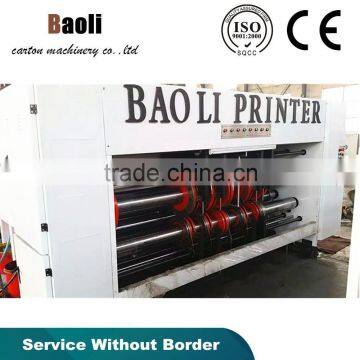

Advanced Technology Multi Color Automatic Corrugated Cardboard Flexo Printing & Slotting & Die Cutting Machine photo-4
US$ 14,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Letterpress
Place of Origin Hebei, China
Brand Name baoli
Model Number GYK
Usage Paper Printer, Other, Paper Printer, Printing Machine With Slotting Unit
Automatic Grade Automatic
Voltage 380v/440v
Gross Power 18.5/22kw
Weight 16000/19000/22000kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine

machine introduction



Separation and combination of the machine

A:Control of separation and combination of machine units is electrically, with alarm to keep the safety of operating personnel.



B:There is friction clutch on the transmission shaft, to avoid damage the machine when operation.



C:Pneumatic interlock device.

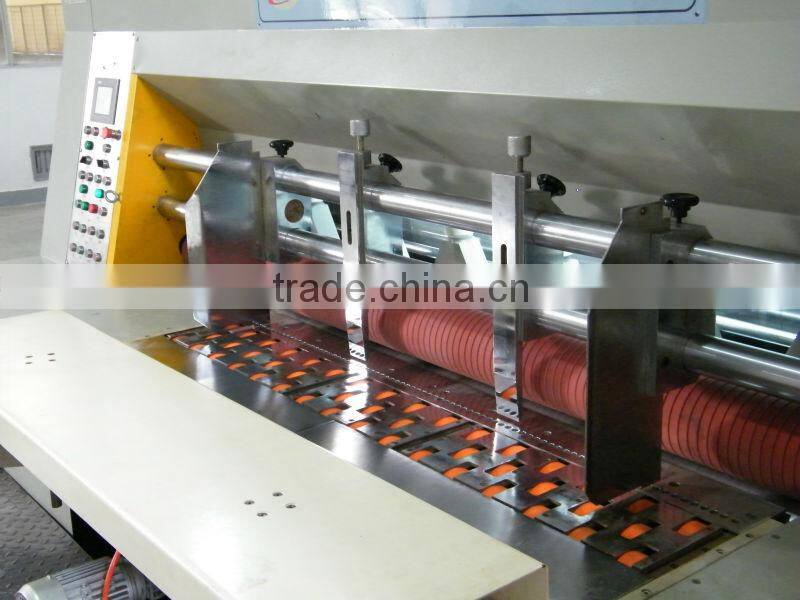

Front edge idler wheel feeding system

A Suction feeder. Fan: 11 kw. The air volume can be adjusted according to the camber of the



paperboard to keep feeding smoothly.



B There is interlock control clutch in the slotting unit to control the scram feeding.



C Cylinder drives sheets up and down. It acts fast and easily.



D  Front edge idler wheel feeding system

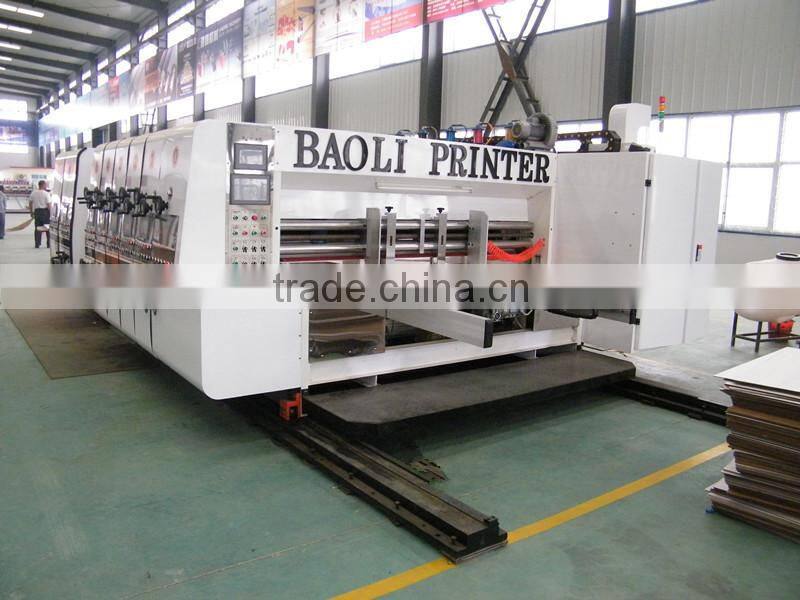

machine pictures

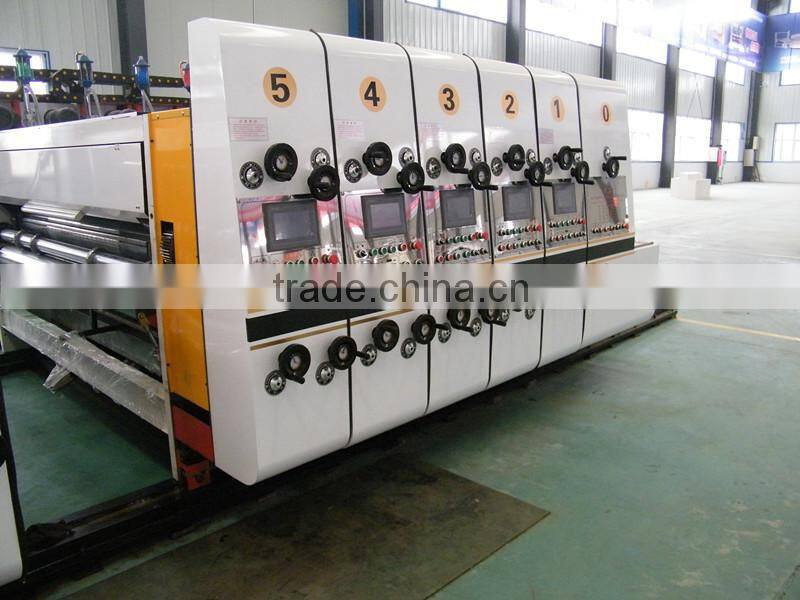

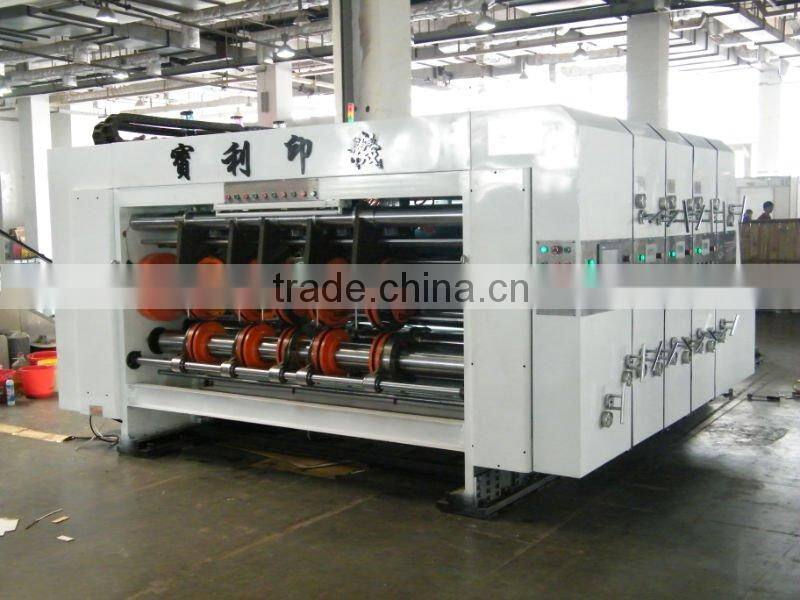

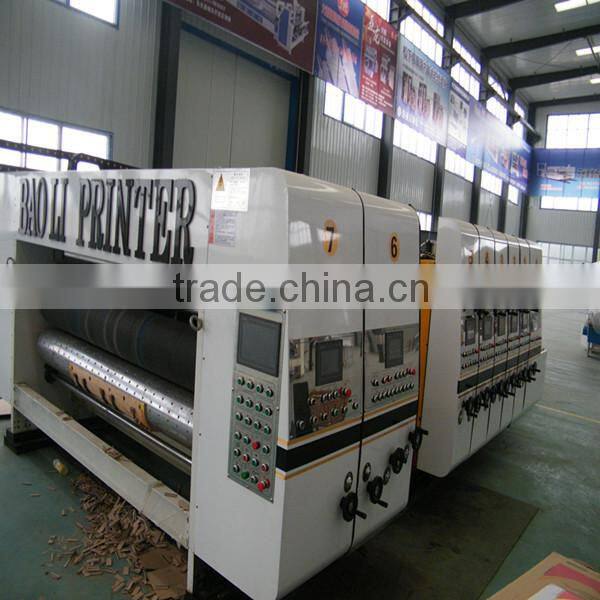

Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine



Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine



Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine





Printing roller (plate roller)



A Outer diameter: Φ390.6mm (it is Φ405mm including the plate.)

B Surface of roller is grinded and hard chrome-plated.

C Treated with balance correction, runs steady and smoothly.




Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine



Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine

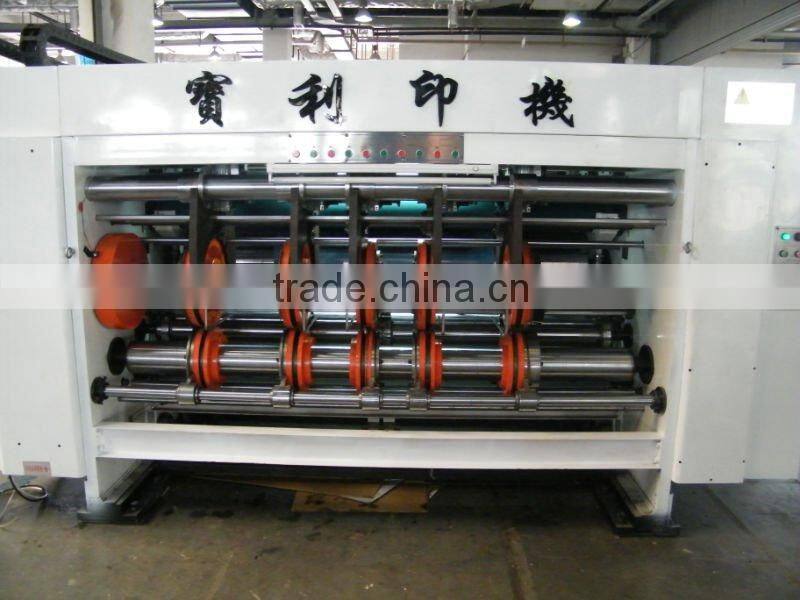

slotter knife block translation adjusting system



A Diameter of axle: Φ156mm, surface-grinded, hard chrome plated. It is steady when move.

B Width of slotter knife: 7mm.

C Slotting knife. Alloy steel. After heating and grinding treatment. Tooth shape blade. Hardness and toughness are all good.

D Trimming knife. Alloy steel. After heating and grinding. Knife-edge is sharp. High precision.

E  Creasing wheel and slotting knife block are adjusted electrical machinery conjoined.



Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine



Advanced technology multi color automatic corrugated cardboard flexo printing & slotting & die cutting machine
