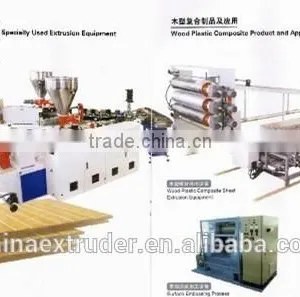

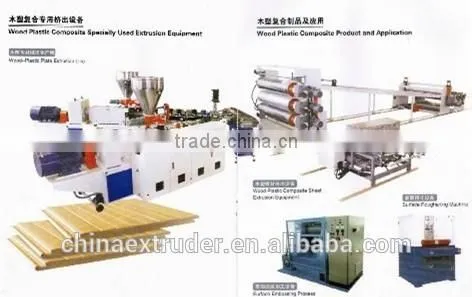

WPC machine for foam board
WPC foam board production machine
WPC crust foam board extrusion machinery
we supply turnkey WPC foam board machine.
1. Equipment list
1.1 Twin Screw Extruder SJSZ-80/156: One set
1.2 good quality T die mould:one set
1.3 Vacuum Calibrating Table :One set
1.4 cooling bracket:one set
1.5 nine rollers haul-off machine: One set
1.6 edge-cutter:one set
1.7 Automatic Cutting Machine: One set
1.8 Tilting table :One set
2. summarization
2.1 Suitable resin:PVC resin+wood powder+chemical additives
2.2 Line speed: Max 1.5 m/min
2.3 Max output: 350 kg/h
2.4 Outer dimension 28 * 2.5 * 3 m
2.5 Weight :15T
2.6 Total power: 120 kW
2.7 Power supply 380V±10%,50Hz; controling power supply:220V±10%
3.Main Description:
JOY series wood-plastic board production line, using main material: PVC+ wood powder.
This product is suitable for construction template, cabinet plate, windowsill, skirting board, and other WPC plates.
This production line adopts our unique and original developed WPC technique and formula.
We can design different product formula and parameters as per different
application.
Main parameter:
Model |
Width |
thickness |
SJSZ-80/156 |
915mm |
4-20mm |
1220mm | ||
Main motor power |
55/75KW |
|
Capacity |
300-400kgs per hour |
|
