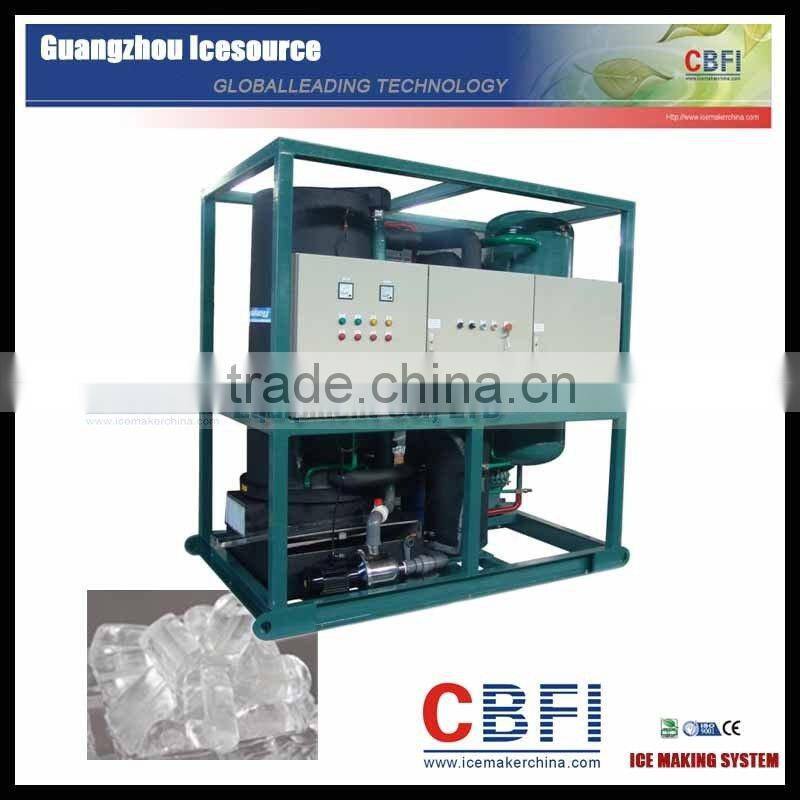

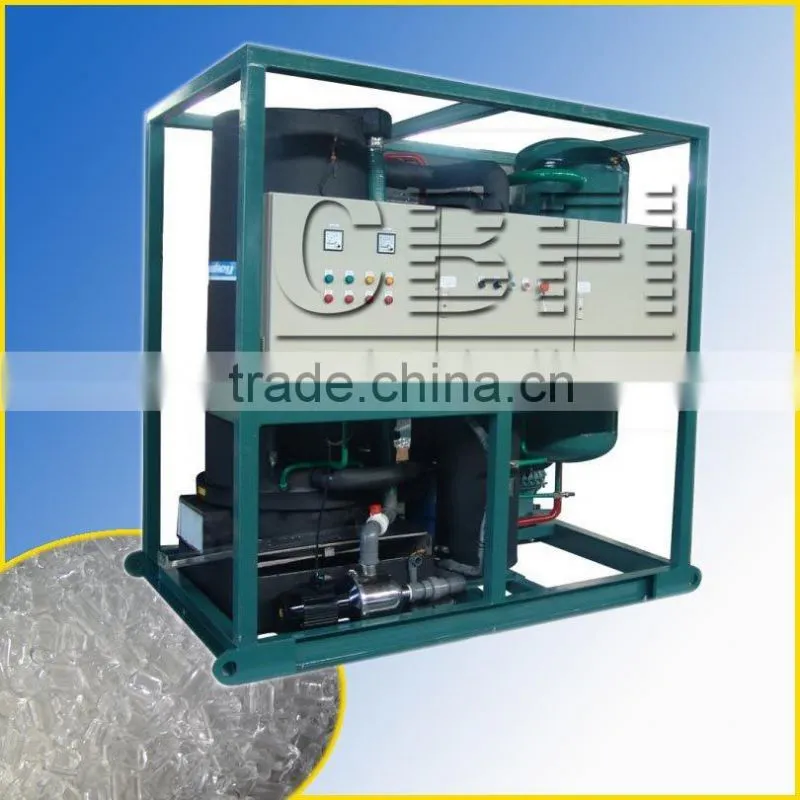

Tube Ice Maker Match with Automatic Ice Outlet (3tons per day)

Specifications

Tube Ice Maker:
1. Compressor: Germany brand Bitzer
2. Tube ice: 22mm, 28mm, or 35mm
3. Ice maker for produce edible ice





TV Series Tube Ice Maker Machine:

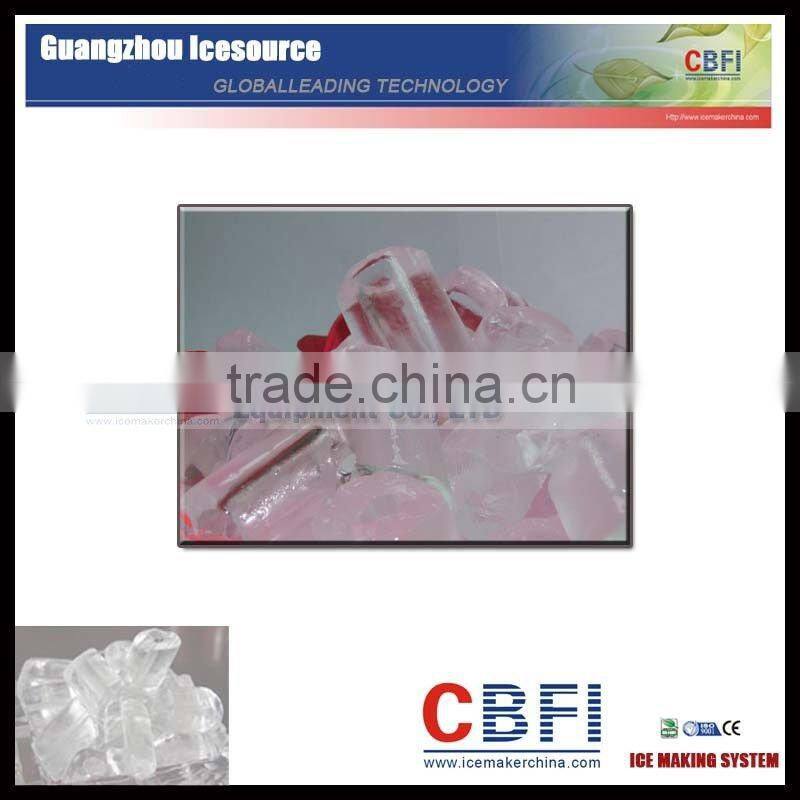

Tube ice is a regular cylinder ice that has hollow in the central section of the ice.

The outer diameter is 28mm, 32mm, 35mm, the height can be 30mm to 50mm.

The inner diameter can be adjusted to the time by which the forming of the ice is required.

The tube ice has the advantages of big thickness, good-looking, long-time storage, not easy melting and good permeation.



Mainly used in daily diet, keep fresh for vegetable, fruit and aquatic products.



Tube Ice Maker Machine Models for Reference:



Item No.	Production	Compressor Rated Power	Circulating Water Pump Power	Cooling Water Pump Power	Cooling Fan Power	Ice Cutter Motor Power	Machine Dimension	Weight of Machine
	Ton/24H	KW	KW	KW	KW	KW	L*W*H	KG
TV10	1.0	3.69	0.37	1.1	0.18	0.75	1320*950*1800	900
TV20	2.0	7.11	0.55	1.1	0.18	0.75	1400*1100*1800	1200
TV30	3.0	9.68	0.55	1.1	0.37	0.75	1500*1100*1950	1500
TV50	5.0	17.47	0.55	1.5	0.75	0.75	1600*1250*2200	1800
TV100	10.0	30.89	0.75	2.2	1.5	1.5	1700*1300*2200	3500
TV150	15.0	42.6	1.5	2.2	2.2	1.5	3000*1500*2200	4250
TV200	20.0	53.2	1.5	2.2	2.2	1.5	3500*1500*2200	6500

























Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature and ambient temperature.



1. Installation of ice tube machine is easy, only need connect water, power for the machine. All testing       work wIill be finished in our factory.



2. Ice making water formed ice in the stainless steel round plate, then, automatically enter into ice falling off procedure, the whole process control by PLC program control, no need people monitor.



3. Evaporator of tube ice machine is round plate type, so, the machine is space save.



4. Ice outgoing automatically, can connect with automatically ice packing machine or converyor belt.



5. All surface that contact with water or ice are stainless steel or other rust-resistant material insured the sanitation of tube ice.
