Specifications
Industry ice plate machine1,Daily output:1 to 50 tons per day.
2,Ice thickness 5mm-10mm.
3,For fishing and concrete system

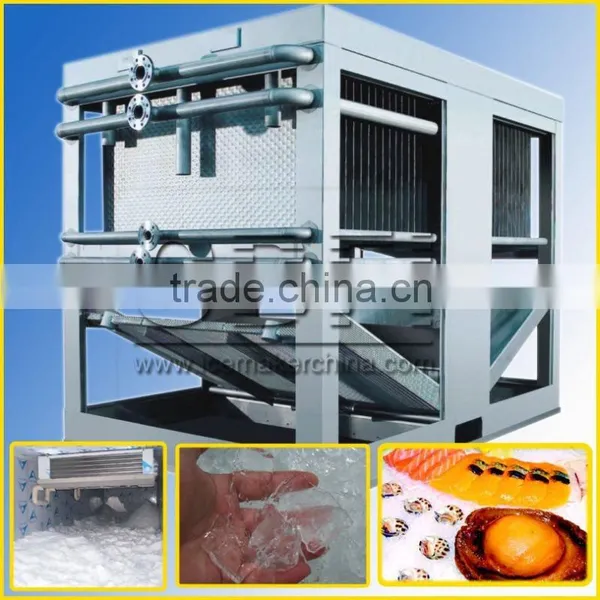

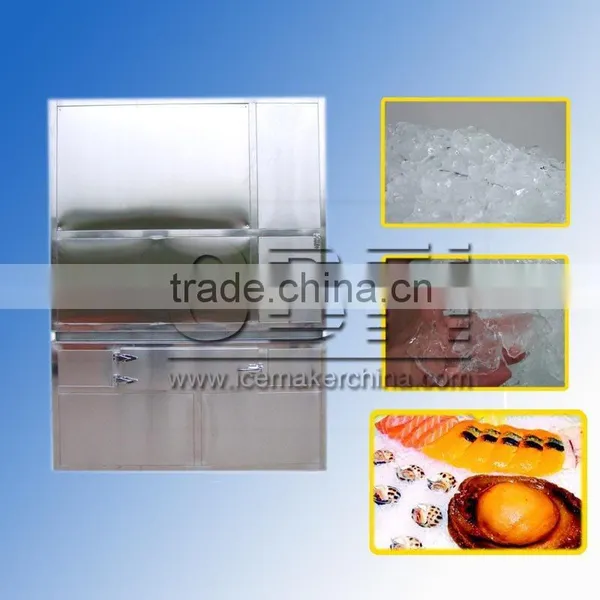

Plate ice making machine for fishing and cooling

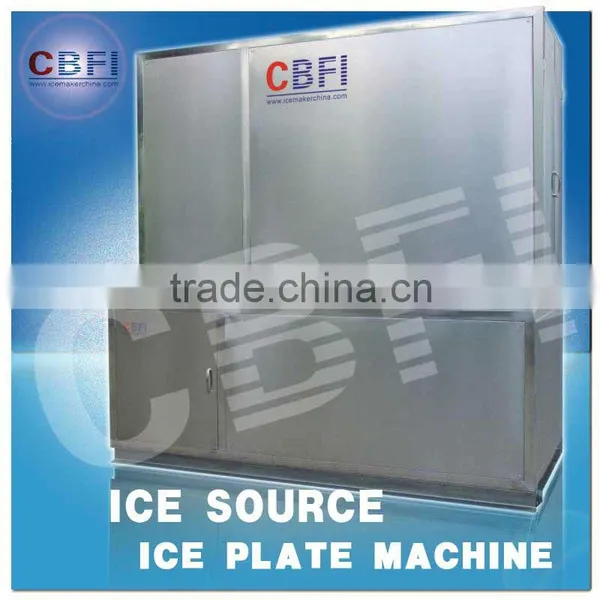

HYF Series Ice Plate Machine
Daily capacity of ice tube machine can be from 1ton to 50tons.

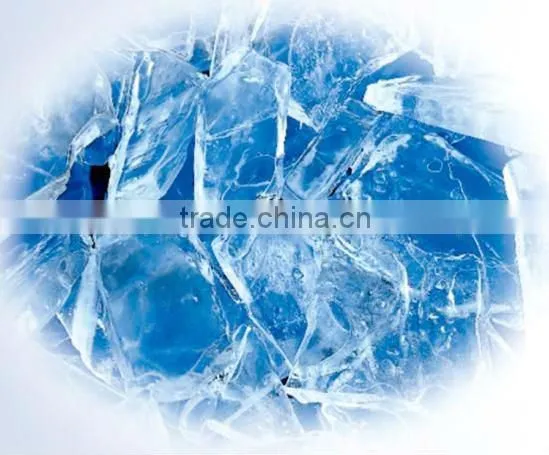

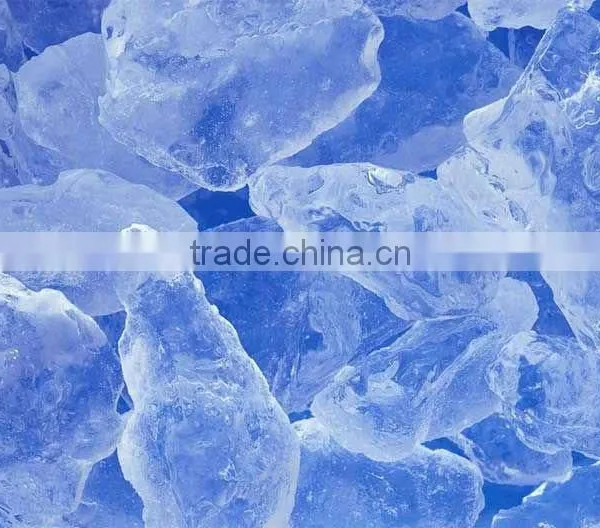

Ice plate machine for produce ice with thickness around 6mm to 8m, ice thickness is adjustable; the shape of ice is small pieces, size around 40mmx50mm.
The ice is for processing and keeping fresh for sea food, meat, chicken, vegetable, fruit and so on, also can be used in industrial area, for example concrete cooling.
Quick introduction of CBFI Plate ice machine:
Type: |
Plate ice machine |
Power Supply: |
380V/3Phase/50Hz,220V/3Phase/50Hz,415V/3Phase/50Hz |
Model No: |
CBFI – HYF100 |
Capacity: |
10Ts/day |
Cooling way: |
Water-cooling |
Compressor: |
Bitzer/Copeland |
Refrigerant: |
R22/R404A |
Dimension: |
2500mmx2100mmx2530mm |
Weight: |
3100kg |
Features of CBFI Plate ice machine:
- Energy-saving can reach 30%. Making ice system is multiple system, which could be 60kw per ton plate ice;
- Daily capacity varies from 1 ton to 50 tons;
- Easy to operate: PLC control system, no need manpower;
- Thickness: 6mm-8mm, optional.
HYF Series Ice Plate Machine
Model |
Output |
Compressor Power |
Water Pump Power |
Water Consumption |
Outer Dimension(mm) |
Net Weight |
|
Ton/24h |
KW |
KW |
L/H |
L*W*H |
Kg |
HYF10 |
1 |
2.51 |
0.4 |
42 |
1900*1370 *1665 |
660 |
HYF15 |
1.5 |
3.93 |
0.4 |
63 |
1900*1470* 1700 |
730 |
HYF20 |
2 |
5 |
0.75 |
83 |
1900*1550* 1700 |
750 |
HYF25 |
2.5 |
5.25 |
0.75 |
104 |
1900*1650*1700 |
890 |
HYF30 |
3 |
7.5 |
0.75 |
125 |
1900*1770*1800 |
1100 |
HYF40 |
4 |
11 |
0.75 |
167 |
2500*1800*2000 |
1500 |
HYF50 |
5 |
15 |
1.1 |
208 |
2500*1850* 2100 |
1900 |
HYF60 |
6 |
18.75 |
1.1 |
250 |
2500*1890*2100 |
2100 |
HYF80 |
8 |
22.5 |
1.5 |
333 |
2500*1920*2100 |
2500 |
HYF100 |
10 |
30 |
2.2 |
417 |
2500* 2100*2530 |
3100 |
HYF120 |
12 |
37.5 |
2.2 |
500 |
2500 2200*2300 |
3320 |
HYF150 |
15 |
43 |
3.7 |
625 |
2500* 2200*2480 |
3500 |
HYF200 |
20 |
59 |
3.7 |
833 |
3470* 2200*2480 |
4700 |
HYF250 |
25 |
73 |
3.7 |
1042 |
5100* 2200* 2480 |
4900 |
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provide
CBFI , Guangzhou Icesource Refrigeration Equipment Co., Ltd is founded in November, 2004. We located in Panyu District, Guangzhou city, Guangdong Province, which is near two famous ports of South China - Nansha port and Huangpu port – and Baiyun International Airport.
We specialize in research, design, produce and sell large production of ice block machine, ice cube machine, ice plate machine, ice tube machine and relative machines and its accessory such as cold room, crane, ice crushing machine, etc.
With tenet of “painstakingly created high quality products and wholeheartedly service” and principle of “emphasis on social and economic benefits ”, we gained two patented technologies of flat-plate heat exchange and circulating heat gas for ice dropping, which greatly improve the stability and safety of our ice machine and ensure our machine prominently energy saving when comparing with other products on the market.
