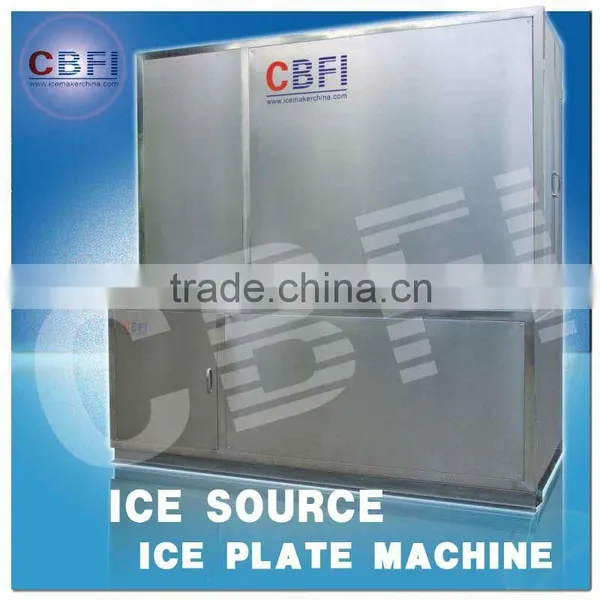

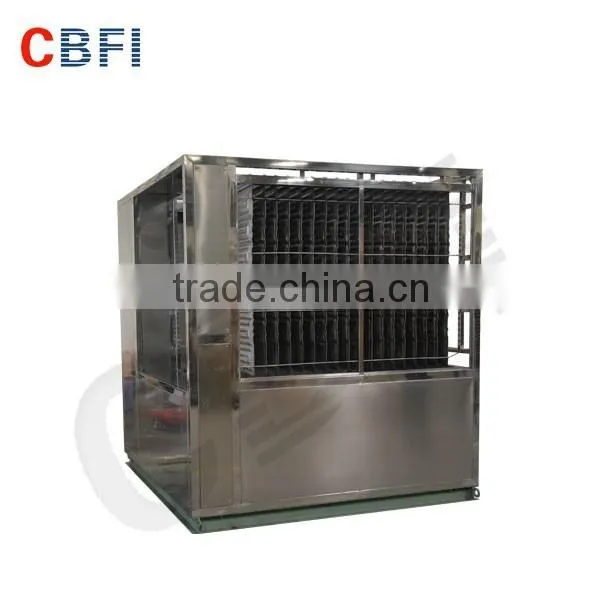

Industrial automatic ice plate making machine for sale
HYF Series Ice Plate Machine
Daily capacity of ice tube machine can be from 1ton to 50tons.
Ice plate machine for produce ice with thickness around 6mm to 8m, ice thickness is adjustable; the shape of ice is small pieces, size around 40mmx50mm.
The ice is for processing and keeping fresh for sea food, meat, chicken, vegetable, fruit and so on, also can be used in industrial area, for example concrete cooling.
HYF Series Ice Plate Machine
Model |
Output |
Compressor Power |
Water Pump Power |
Water Consumption |
Outer Dimension(mm) |
Net Weight |
|
Ton/24h |
KW |
KW |
L/H |
L*W*H |
Kg |
HYF10 |
1 |
2.51 |
0.4 |
42 |
1900*1370 *1665 |
660 |
HYF15 |
1.5 |
3.93 |
0.4 |
63 |
1900*1470* 1700 |
730 |
HYF20 |
2 |
5 |
0.75 |
83 |
1900*1550* 1700 |
750 |
HYF25 |
2.5 |
5.25 |
0.75 |
104 |
1900*1650*1700 |
890 |
HYF30 |
3 |
7.5 |
0.75 |
125 |
1900*1770*1800 |
1100 |
HYF40 |
4 |
11 |
0.75 |
167 |
2500*1800*2000 |
1500 |
HYF50 |
5 |
15 |
1.1 |
208 |
2500*1850* 2100 |
1900 |
HYF60 |
6 |
18.75 |
1.1 |
250 |
2500*1890*2100 |
2100 |
HYF80 |
8 |
22.5 |
1.5 |
333 |
2500*1920*2100 |
2500 |
HYF100 |
10 |
30 |
2.2 |
417 |
2500* 2100*2530 |
3100 |
HYF120 |
12 |
37.5 |
2.2 |
500 |
2500 2200*2300 |
3320 |
HYF150 |
15 |
43 |
3.7 |
625 |
2500* 2200*2480 |
3500 |
HYF200 |
20 |
59 |
3.7 |
833 |
3470* 2200*2480 |
4700 |
HYF250 |
25 |
73 |
3.7 |
1042 |
5100* 2200* 2480 |
4900 |
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provide
