Large Ice Cube Machine
Part I.About Ice Cube Machine:
1. Ice cube machine for produce food grade ice, cube ice is edible ice.
2. Cube ice you can see often in Restaurant, Hotel, and Wine bar and so on.
3. Cube ice have two sizes for choose, 22mm x 22mm x 22mm, 29mm x 29mm x 22mm.
4. Daily capacity of ice cube machine can be from 1tons to 20tons.
Part II.Ice Cube Machine Different Model:
Item No. | Production | Compressor Rated Power | Circult -ing Water Pump Power | Cool -ing Water Pump Power | Cooling Fan Power | Machine Dimension | Weight of Machine |
| Ton/24H | KW | KW | KW | KW | L*W*H | KG |
CV1000 | 1.0 | 3.69 | 0.37 | 1.5 | 0.37 | 1200*1000*1600 | 800 |
CV2000 | 2.0 | 7.11 | 0.37 | 1.5 | 0.55 | 1630*1600*1686 | 1000 |
CV3000 | 3.0 | 9.68 | 0.37 | 2.2 | 0.75 | 1980*1630*1840 | 1200 |
CV5000 | 5.0 | 17.47 | 0.55 | 2.2 | 1.5 | 2890*1780*1840 | 1600 |
CV8000 | 8.0 | 28.52 | 1.1 | 4 | 1.5 | 4820*1780*2000 | 2500 |
CV10000 | 10.0 | 37.68 | 1.1 | 4 | 1.5 | 5730*1780*2000 | 3000 |
CV15000 | 15.0 | 52.41 | 1.65 | 5.5 | 2.2 | 8620*1780*2000 | 4500 |
CV20000 | 20.0 | 75.36 | 2.2 | 8 | 3 | 11460*1780*2100 | 6000 |
Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition: water temperature: 23Centi degree, evaporate temperature:-12Centi degree, condensing temperature 40Centi degree, reference valve under 50Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
Part III.Customers:
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
Welcome more and more customers come to us, visit our factory and give us suggestion, let us make progress, thanks!
Part IV.Packing:
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provide

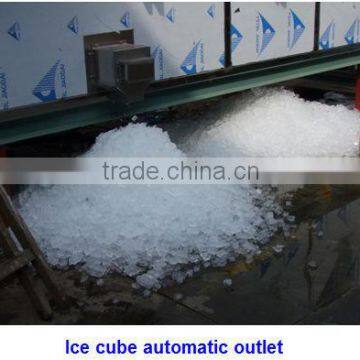

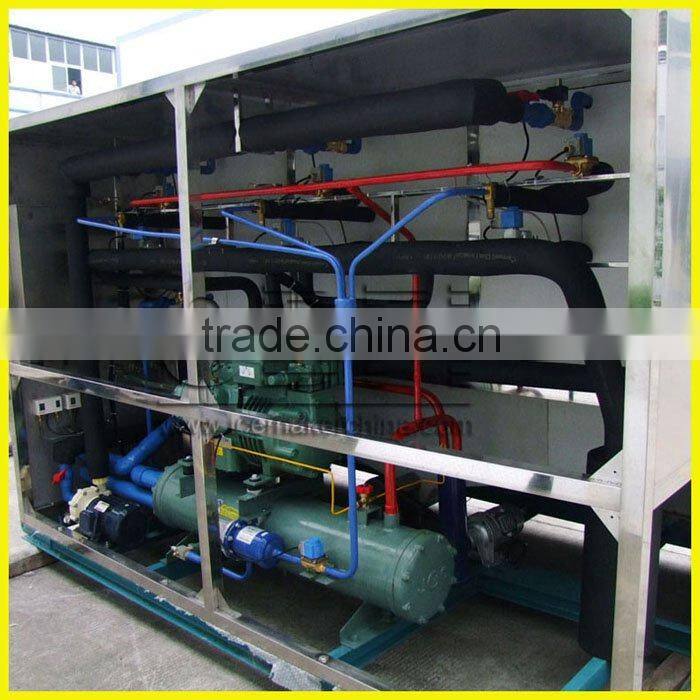

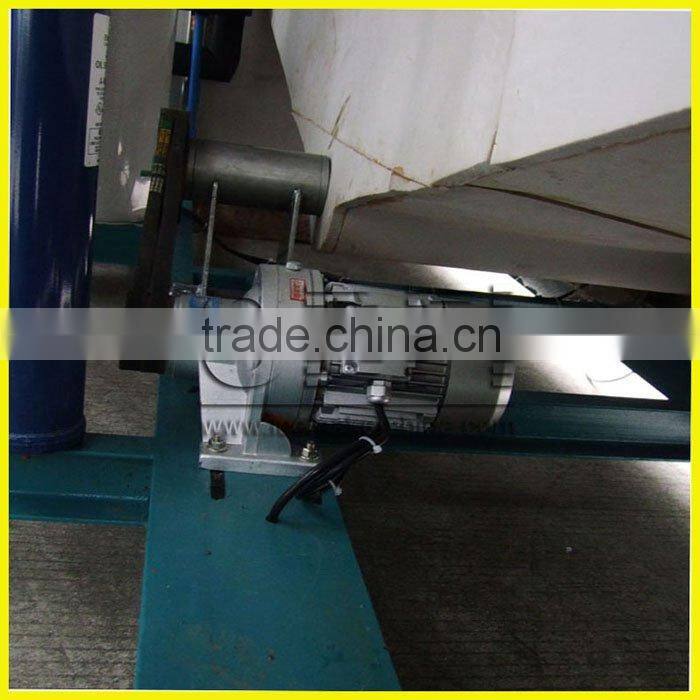

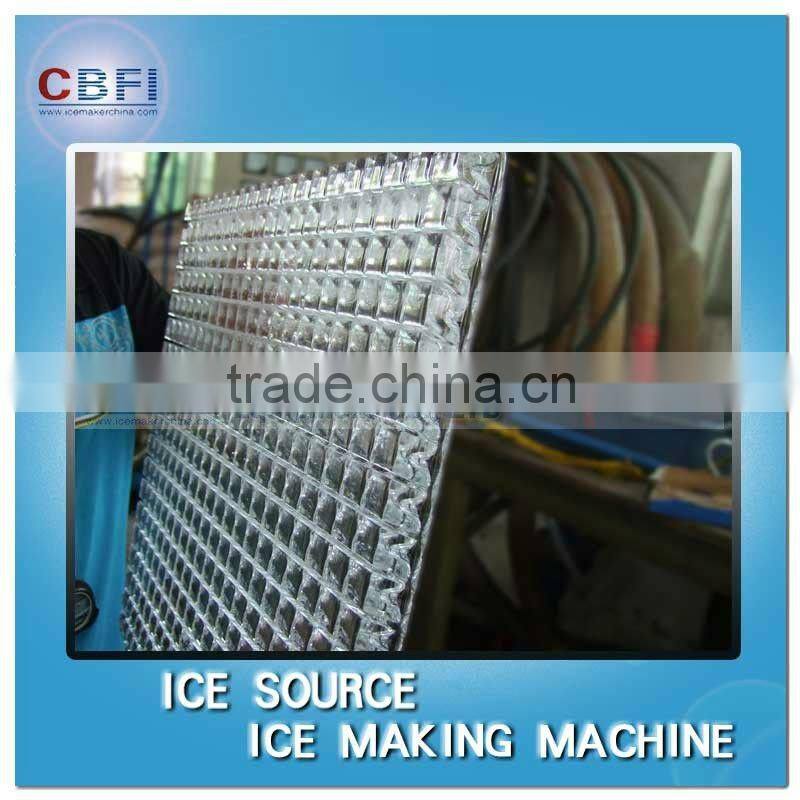

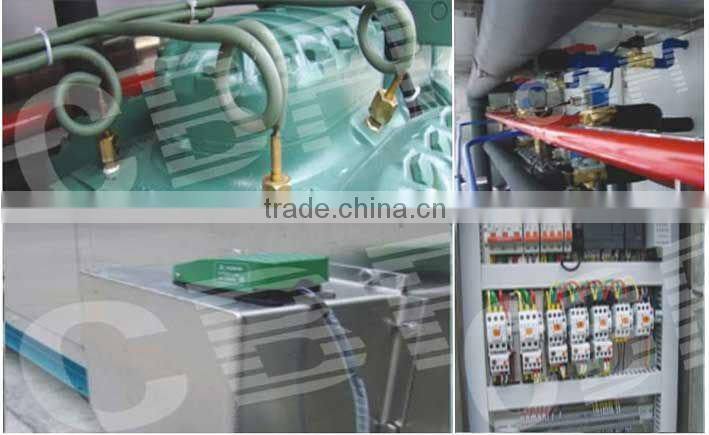

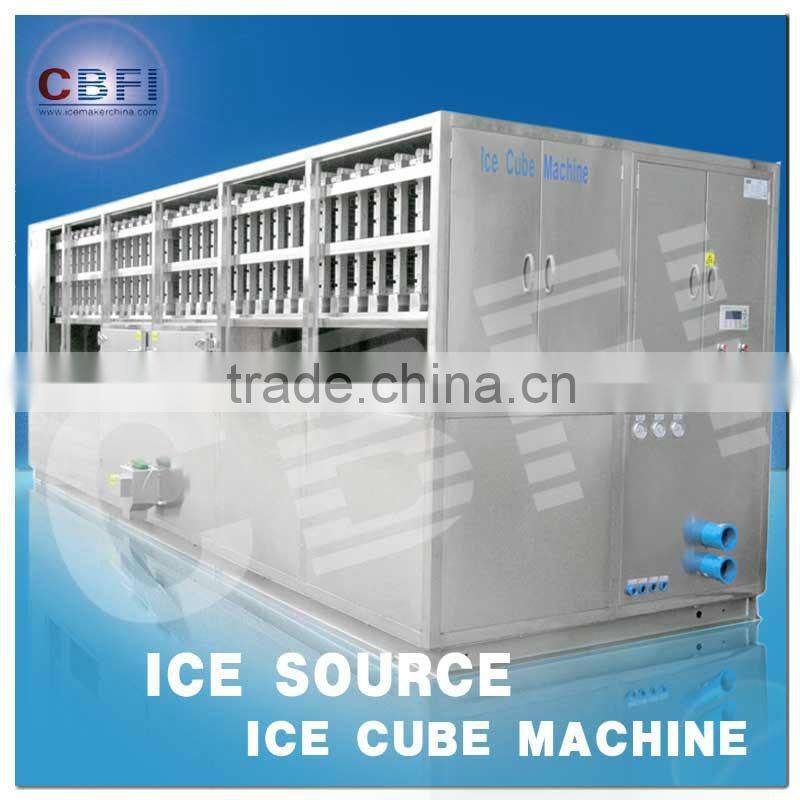

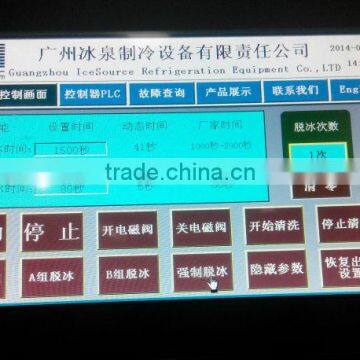

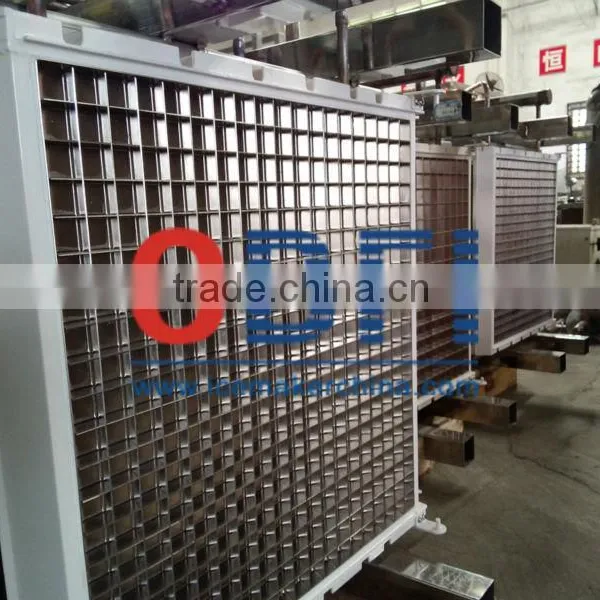

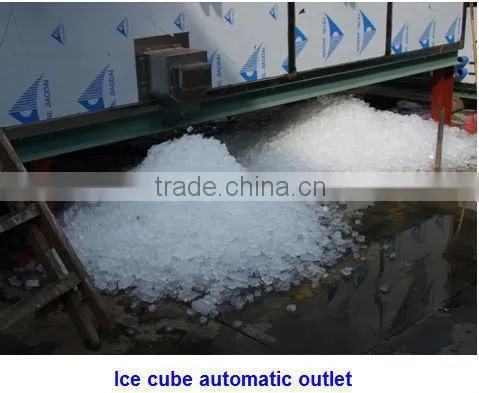

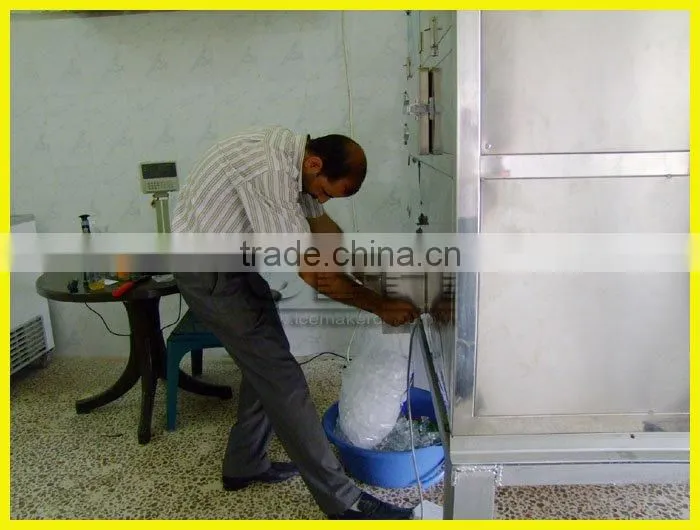

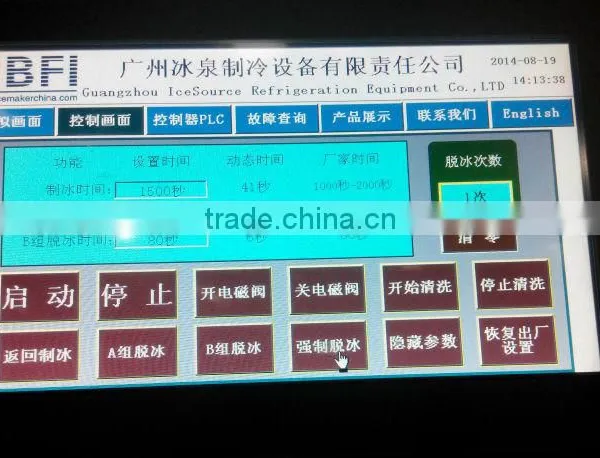

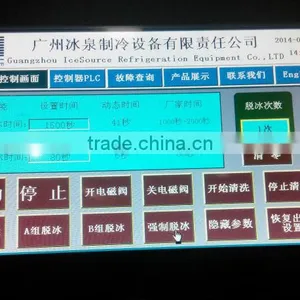

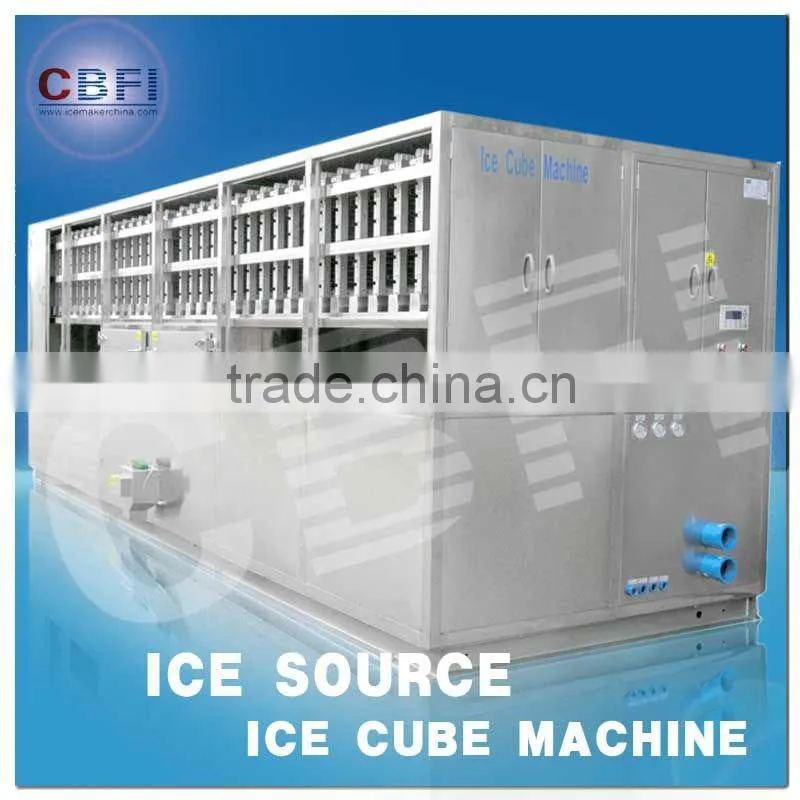

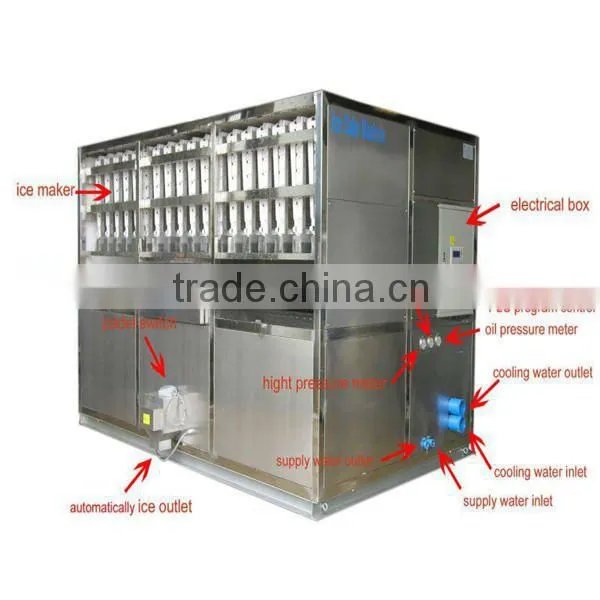

Part V.Ice Cube Machine Pictures:
