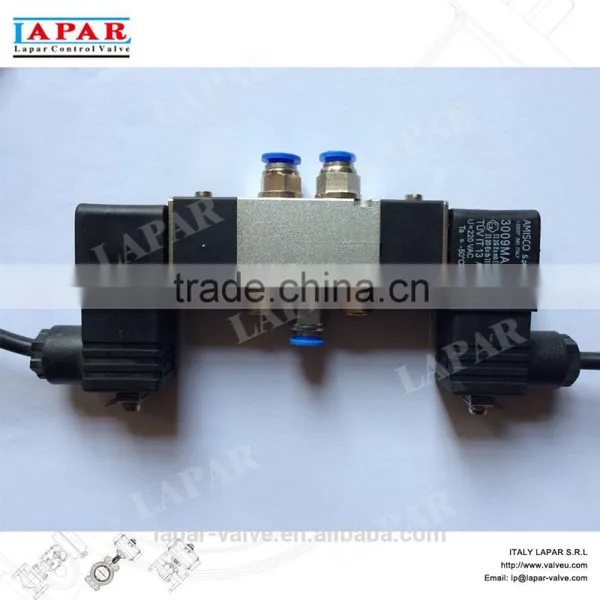

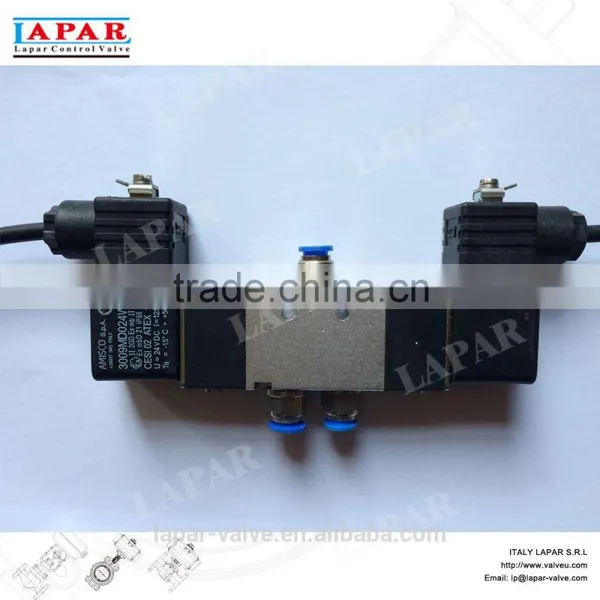

LAPAR IP65 Double Coil Solenoid Valve, Pilot Actuated Solenoid Valve, Pipe Connection Type Solenoid Valve With AMISCO Coil
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Pilot
Power:
Solenoid
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LAPAR Dual Coil Solenoid Valve, Pilot Actuated Solenoid Valve, Pipe Connection Type Solenoid ValveNegotiableMOQ: 1 Set -
LAPAR Panel Mount Solenoid Valve, Pilot Actuated Solenoid Valve, Explosion Proof Solenoid ValveNegotiableMOQ: 1 Set
-
LAPAR NAMUR Interface Solenoid Valves, Pilot-operated Solenoid Valve, Explosion Proof Solenoid ValveNegotiableMOQ: 1 Set
-
LAPAR Pipe Connection Solenoid Valve, Cheap Solenoid Valve, 24v Solenoid ValveNegotiableMOQ: 1 Set
-
LAPAR NAMUR Mount Solenoid Valve 3/2 or 5/2 FunctionNegotiableMOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Pilot
Power
Solenoid
Material
Other, Die-Cast Aluminium
Temperature of Media
Medium Temperature
Media
Gas
Port Size
G1/8 G1/4 G3/8 G1/2
Place of Origin
Shanghai, China
Model Number
LPZ11
Brand Name
LAPAR
LAPAR IP65 double coil solenoid valve, pilot actuated solenoid valve, pipe connection type solenoid valve with AMISCO coil
The Material of Parts
Valve Body : Die-Cast Aluminium
Spool : Aluminium
Seals : NBR
Spring : Stainless
Cap : Zinc Pressure Die-Cast
Pilot Parts : Glass Filled Nylon
Armature : Stainless Steel
Armature Seals : Viton
Installation Standard |
NAMUR/VDI/VD3845 |
Shortest Active Time |
40ms |
Voltage Error |
±10% |
Power Consumption |
AC:5.0VA~9.0VA DC:2.5W~6.5W |
Working Temp. |
-20~+50℃ |
Enclosure Class |
IP65 |
Insulation Class |
F Class |
Acting Type |
Inner Guide Type |
Cable Connection |
Pg9 |
Media |
Filtered compressed air |
Maximum Frequency |
5Limes/Sec |
Working Pressure |
0.15~0.85MPa |
