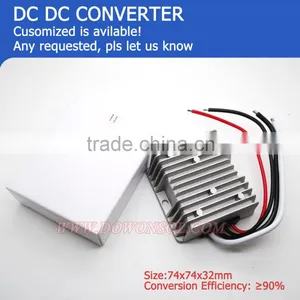

8-40V to 24V 6A 150W step down and bost dc volt converter
Output power(W) 150W
Input voltage(V) 8-40V DC
Output voltage(V) 24V DC
Output Type: Single
Input:
Input voltage range(V)8V-40V DC
Efficiency 94%
Output:
Output voltage range(V) VOUT: 24V DC
Output current(A) 6A
Voltage adjustable 2%
Ripple wave: 50Mv Starting delay time: < 2S
Isolation Non-isolated
Waterproof Waterproof IP68
Other:
Dimension 74*74*32mm, net weight: 320g
Cooler natural cooling
Rated temperature: 45 degree
Operating temperature -40degrees -80degrees
Input transient voltage protection, output over-current protection, output short circuit protection, chip overheating protection function.
This power supply without reverse connection protection, input and output negative pole line cannot be reversed
| Product range | Product model | V-in | V-out | I-out | Efficiency | Weight(g) | Size (LxWxH) |
| 50W DC Converter | J48D5K50Z | 48V | 5v | 10A | Higher than 90% | 280g | 74X74X32mm |
| 60W DC Converter | J48D5K60Z | 48v | 12v | 5A | Higher than 90% | 280g | 74X74X32mm |
| 120W DC Converter | J48D5K120Z | 48v | 12v | 10A | Higher than 90% | 280g | 74X74X32mm |
| 240W DC Converter | J48D12K240Z | 48v | 12v | 20A | Higher than 90% | 280g | 74X74X32mm |
| 360W DC Converter | J48D12K360Z | 48v | 12v | 30A | Higher than 90% | 280g | 150x127x63mm |
| 120W DC Converter | J48D24K120Z | 48v | 24v | 5A | Higher than 90% | 280g | 74X74X32mm |
| 240W DC Converter | J48D24K240Z | 48v | 24v | 10A | Higher than 90% | 320g | 74X74X32mm |
|
Our products are great for outdoor environment and widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.
We have other custom made specification if you can not find a suitable model from our TCH Warehouse Store, please contact our product engineer
|
