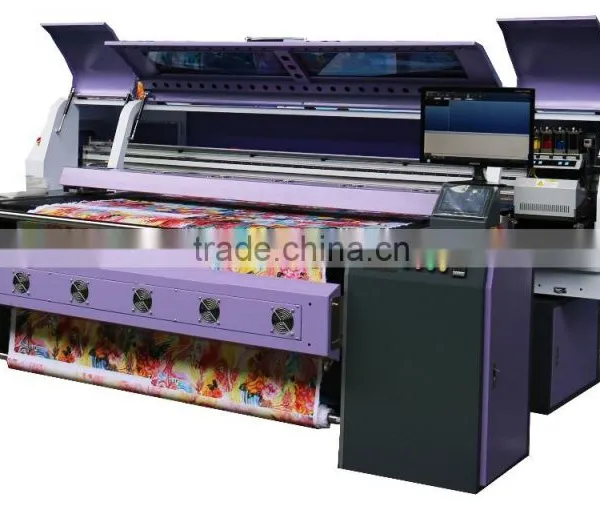

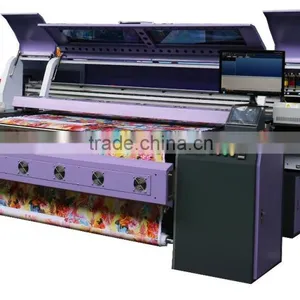

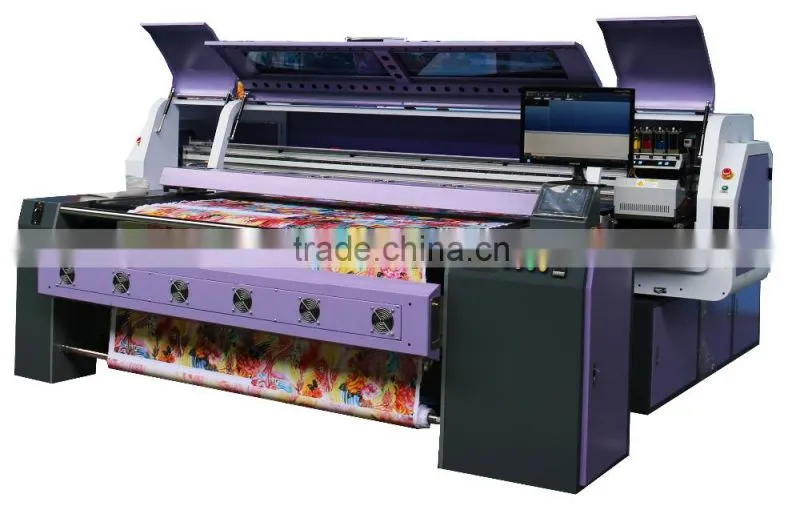

Belt printer for cotton fabrics direct printing with starfire 1024 head roll and piece cotton
FD1868isbelt printer in China market which adopt Starfire1024 industrial printer head,it is the fastest belt printer for fabrics direct printing,and the head keeps longer life than other industrial heads.The whole machine adopt imported belt parts and use high quality metal parts to guarantee the machine quality and printing stability.
Discription:
- Ø Adopt Starfire1024 metal printer heads which each head got 1024 nozzles,the surface of printer head uses metal to improve ability of corrosion resistant.
- Ø Nozzles with 10/25PL,110V high frequency to print high color resolution and saturation,FD1848TX keeps huge advantage than other belt printers in market.
- Ø The whole printer made with high strength, dual linear guide, Panasonic 400W servo motor, ensure that the machine can support high strength and precision printting,the whole machine can keep life longer more than year than other printers.
- Ø Adopt longest belt in market,the total length is 6m,operation plate is 3m.
- Ø All the belt parts can be guaranteed to use at least three years without quality problem.
Parameter:
Model |
FD1848TX |
Printer head |
Starfire1024,2 or 4 heads available |
Print Width |
1.8m |
Belt length |
3m(Total 6m) |
|
|
Ink Type |
Textile Pigment ink,Disperse Dye ink,Reactive ink,Acid dye ink |
Speed |
600*600dpi for Two heads is over 65M2/h,4 heads is over 130M2/h |
Media Type |
All kinds of fabrics direct printing |
Number of Color |
C,M,Y,K |
Print Interface |
USB 2.0 |
Humidity and Temperature |
35-80% 18-30℃ |
Weight |
2000kg |
Packing Size(L*W*H) |
3000mm*3200mm*1300mm |
Power Consumption |
<60W;1000W;2000W,220V 10% 15A 50Hz |
Printed sample with pigment ink:
