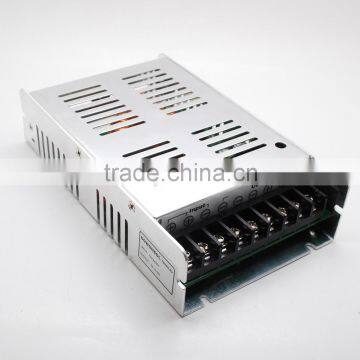

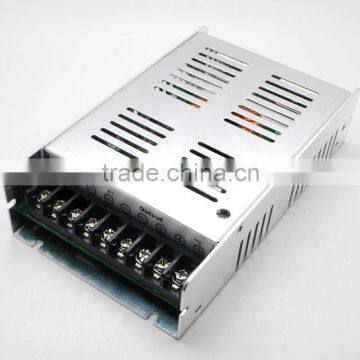

dc to dc Converter 12V/24V to 5V 40A 200Wmax for LED Display

Item no.

J122405C200Z

Output power(W)

200W

Input voltage(V)

12-24V DC

Output voltage(V)

5V DC

Output Type:

Single

Input voltage range(V)

10-30V DC

Star voltage(V)

10V DC   100% load

Input Reverse connection protection

No

Input low voltage protection(V)

≤7.9VDC output off, ≥ 10V DC Auto recovery.

No load (W)

< 3W

Efficiency

91%

Output  voltage range(V)

5.0V DC

Output current(A)

40A

Voltage adjustable

1%

Load adjustable

3%

Mvp-p

100mv,  out connect 22UF capacitor ESR<0.1Ω 100KHZ

Over current

Rated output condition, more than 120% of rated current, over-current protection will work, Current limit voltage drop, when over-current is off, auto recovery.

Short circuit

if the current =>45A, output voltage will be 0V and auto recovery

Input Reverse connection

No

Isolation

Non-isolated

Waterproof

Non-waterproof

Dimension

165*98*38mm, net weight: 450g

Cooler

natural cooling

Rated temperature ℃

45℃

Operating temperature

-20℃-80℃

Probability of reliability

>100000h

Our products are great for outdoor environment and widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.

We have other custom made specification if you can not find a suitable model from our TCH Warehouse Store, please contact our product engineer
