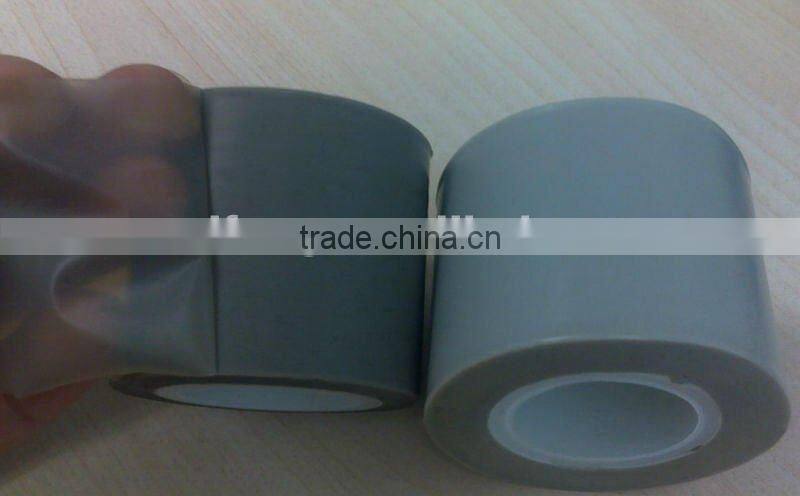

Help CenterHigh Temperature PTFE Film Tape
Related Products
-
PTFE Film TapeNegotiableMOQ: 20 Square Meters -
Heat Resistant Skived PTFE Film TapeNegotiableMOQ: 20 Square Meters
-
High Temperature Ptfe Film TapeUS$ 16 - 35MOQ: 20 Square Meters
-
Nitto 923UT Adhesive Tape/ Ptfe Film TapeUS$ 16 - 35MOQ: 20 Square Meters
-
Top Quality PTFE Film Skived TapeNegotiableMOQ: 20 Square Meters
Specifications
PTFE film tape1.Anti-voltage intensity
2.High breakdown voltage
3.Wide range of operation temperature
PTFE film tape
Usage
- Agglutinant
- electric iron board producing
- F4 wax cloth belt, transmission belt combining adhibiting
- F4 copper board inner adhibiting
- Window
- Electroanalysis
- High temperature tape raw material
- Capacitance raw material
- Biology temperature protecting material
- Non-metal compensator in thermo-eletric plant
- Flameproof electric machinery
- Surface protecting material
Advantages
1.Minimal Water Absorption
2.Excellent Machining
3.Acid and chemical resistant
4.Good Electrical insulation
5.High working temperatures
6.Low friction
Characteristic
- Good adherence .
- Good adherence to mental.
- High and low temperature preservation
- -200~200°C high temperature intensity better than F4
- No-begriming ,and no-stagnant in tube
- Touching point angle=114°C
- Security and insulation
- Under 60HZ-60MHZ high and low temperature , permittivity is 2.1.
- If firing, and will still insulate .
- Volume resistance more than 1018Ωm
- Surface resistance more than 2 X 1013Ω
- Voltaic Arc more than 165 seconds insulation
- High diaphaneity
- Good penetrability in ultraviolet radiation,and lowest refraction coefficient
specification and allow tolerance
model |
classify |
Thickness(mm) |
Thickness tolerance(mm) |
width (mm) |
width tolerance(mm) |
Length (mm) |
9201-1 |
oriented |
0.03mm,0.035mm |
±0.002mm |
60,90,120 |
±3.0mm |
≥50mm |
0.04mm,0.045mm |
±0.003mm |
60,90,120 |
||||
0.05mm,0.06mm |
±0.004mm |
60,90,120 |
||||
9201-2 |
oriented |
0.03mm,0.04mm |
±0.003 |
60,90,120 |
±3.0mm |
≥50mm |
0.05mm,0.06mm |
±0.004mm |
60,90,120 |
||||
0.07mm,0.08mm |
±0.005mm |
60,90,120 |
||||
semi-directional |
0.03mm,0.04mm |
±0.003mm |
60,90,120 |
|||
0.05mm,0.06mm,0.07mm |
±0.005mm |
60,90,120 |
||||
0.08mm,0.09mm,0.10mm |
±0.005mm |
60,90,120 |
||||
|
9201-3 9201-4 |
omnidirectional |
0.05mm,0.06mm,0.07mm |
±0.010mm |
60,90,120 |
±2.0mm |
≥50mm |
0.20mm,0.25mm,0.30mm |
±0.02mm |
60,90,120 |
≥20mm |
|||
0.20mm,0.25mm,0.30mm |
±0.03mm |
120,200,250,300 |
±3.0mm |
|||
|
Skived sheet |
0.5mm,1.0mm,1.5mm |
±0.05mm |
120,200,250,300 |
±3.0mm |
≥15mm |
