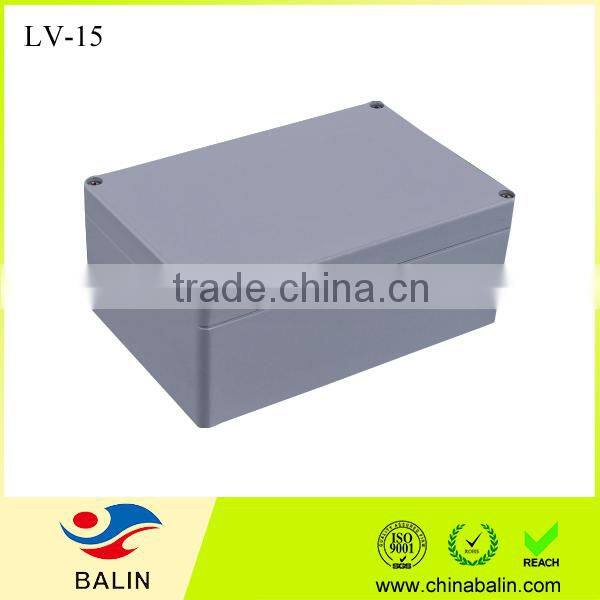

LV-15 Aluminum Die Cast Enclosure

LV-15 Aluminum Die Cast Enclosure thumbnail-1
LV-15 Aluminum Die Cast Enclosure photo-1
US$ 0.5 - 1 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Balin
Model Number:
LV-15
Contact Supplier Request Quote Chat Now
Xiamen Balin Magnetic Materials Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Balin
Model Number LV-15
Protection Level IP65
Type Junction Box
External Size 240*160*100mm



LV-15 aluminum die cast enclosure

LV-15 aluminum die cast enclosure

LV-15 aluminum die cast enclosure

LV-15 aluminum die cast enclosure



LV-15 aluminum die cast enclosure



PRODUCT NAME

LV-15 aluminum die cast enclosure

SIZE(L x W x D)

120*80*65mm

MATERIAL

ADC12

COLOUR

Grey

PROTECTION LEVEL

IP65



Standrad assessories:

 PARTS

S/N

PARTS NAME

 QTY

 MATERIALS

 SPECIFICATION



1





COVER



1



Al



Plastic powder coating



2





BASE



1



Al



Plastic powder coating



3





SEALING



1



SILICON





4





SCREW



4



STAINLESS STEEL





Material: ADC12

Base color : RAL 7001-gray

Cover color :RAL 7001-gray

Cover Screws materials: Stainless steel

Gasket material : Silicon Rubber

Rating:

Ingress Protection (EN 60529):IP 66

Impact Resistance (EN 62262):IK 08

NEMA Class:NEMA 1, 4, 4X, 12, 13

Temperatures:

Min temperature °C (short term):  -50

Max temperature °C (short term):   140

Min temperature °C (continuous):  -50

Max temperature °C (continuous):   80

Min temperature °F (short term):   -60

Max temperature °F (short term):   285

Min temperature °F (continuous):   -60

Max temperature °F (continuous):  175

Note:
1. Mounting foot kits, plastic or brass cable glands are optional.

2. The color can be customized, but order quantity must reach our MOQ.

3. Modification can be done for most of products, such as punching, adding or changing PCB pillars.and so on, but there will be surcharge.

4. Certificates for waterproof and ex-proof are not available.

5. Drawing from website is just for reference.



LV-15 aluminum die cast enclosure

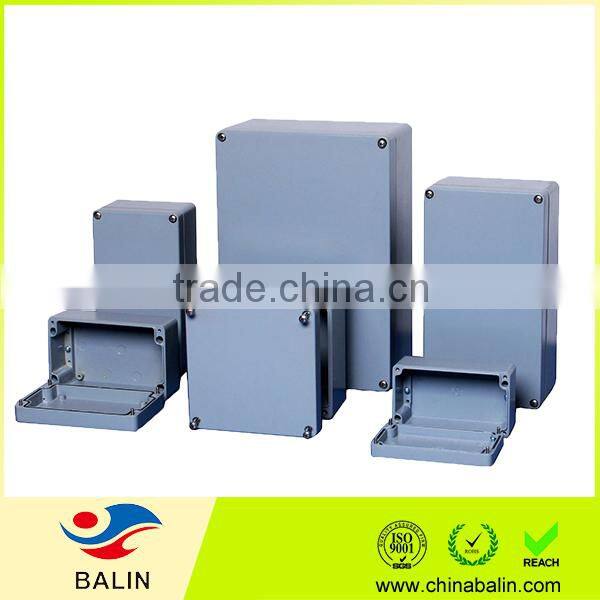

Aluminum waterproof junction box series:

LV-15 aluminum die cast enclosure
LV-15 aluminum die cast enclosure
LV-15 aluminum die cast enclosure
LV-15 aluminum die cast enclosure

LV-15 aluminum die cast enclosureLV-15 aluminum die cast enclosure
LV-15 aluminum die cast enclosureLV-15 aluminum die cast enclosure
