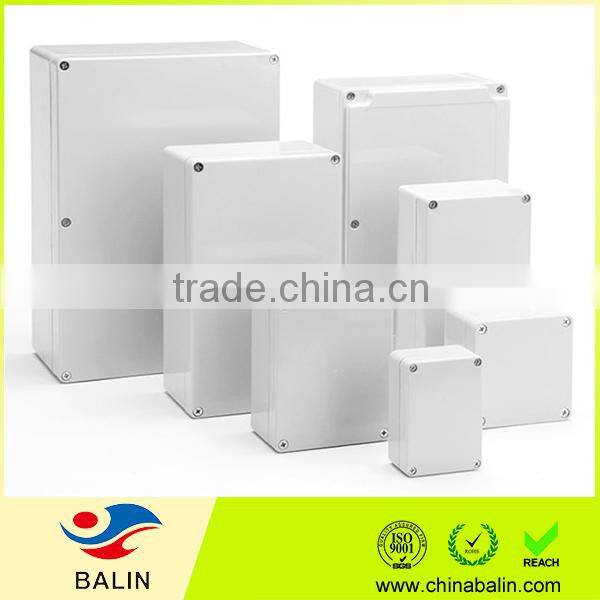

PRODUCT NAME |
Electrical junction box dimensions |
SIZE(L x W x D) |

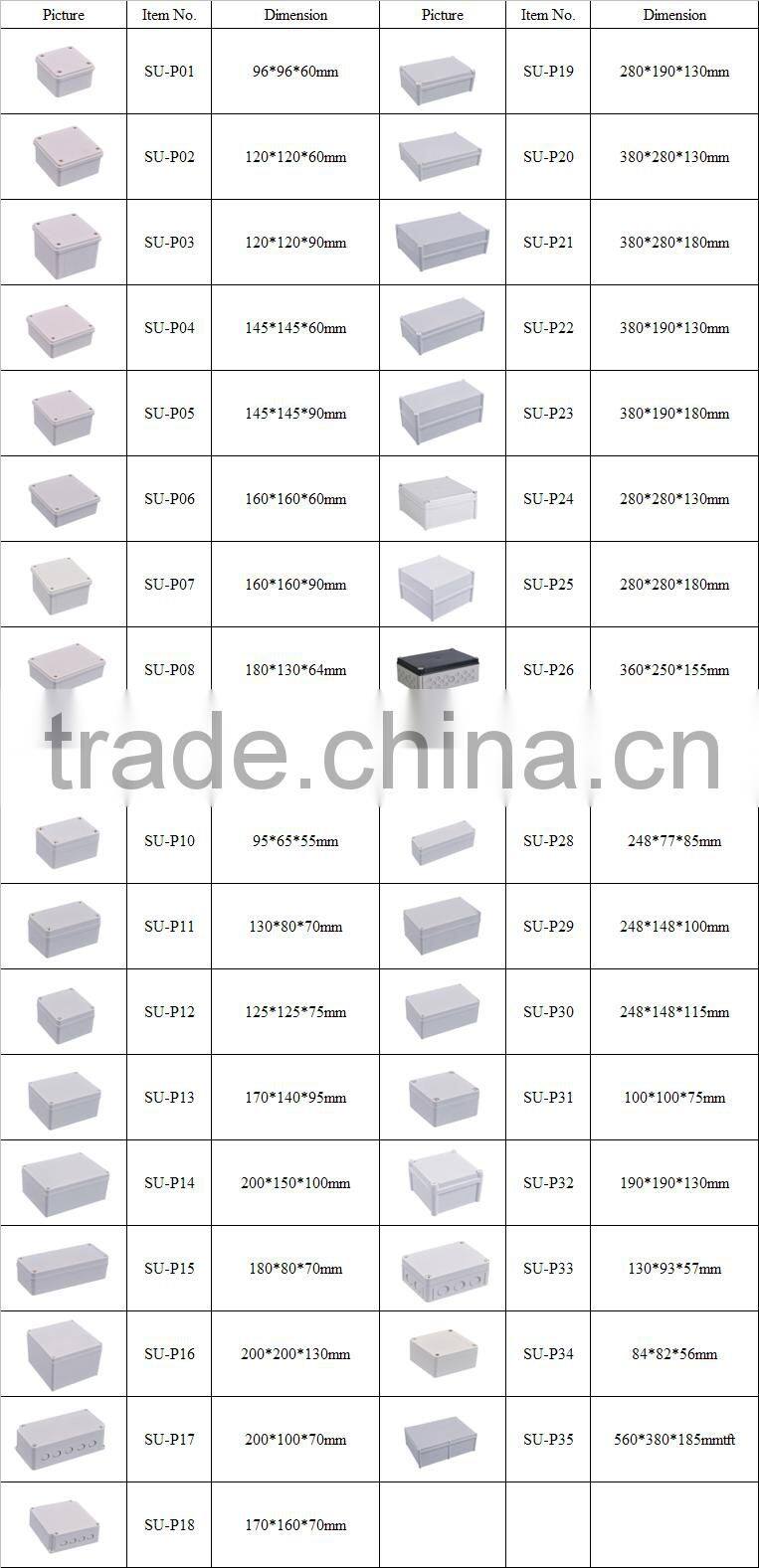

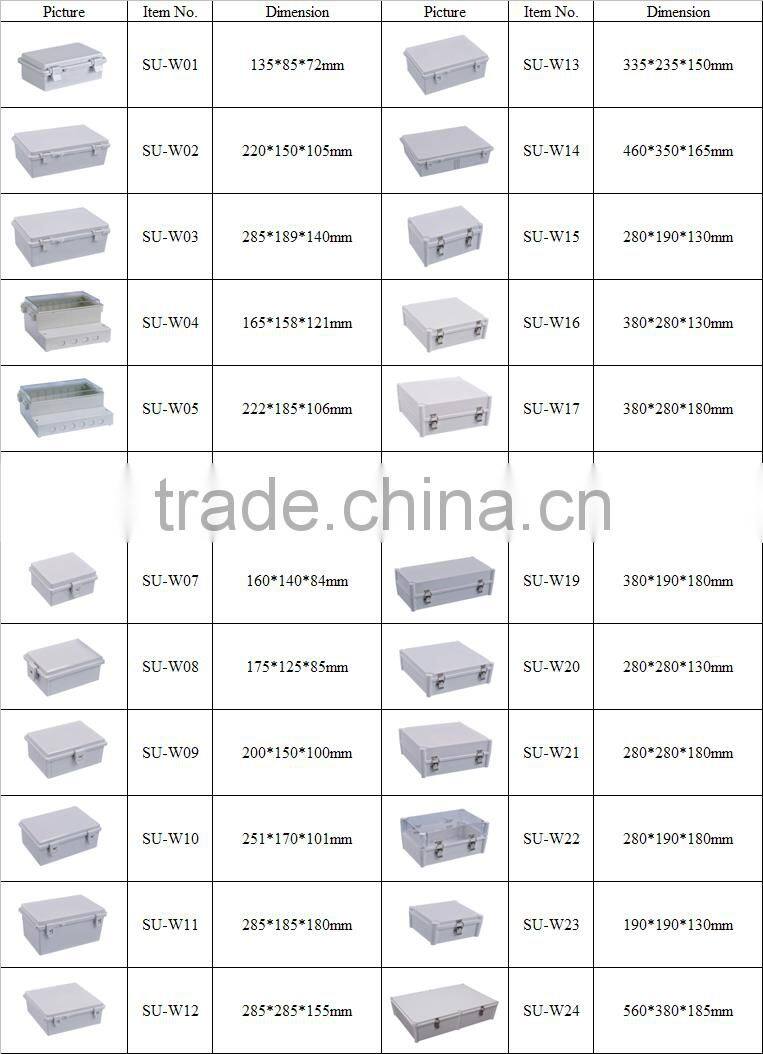

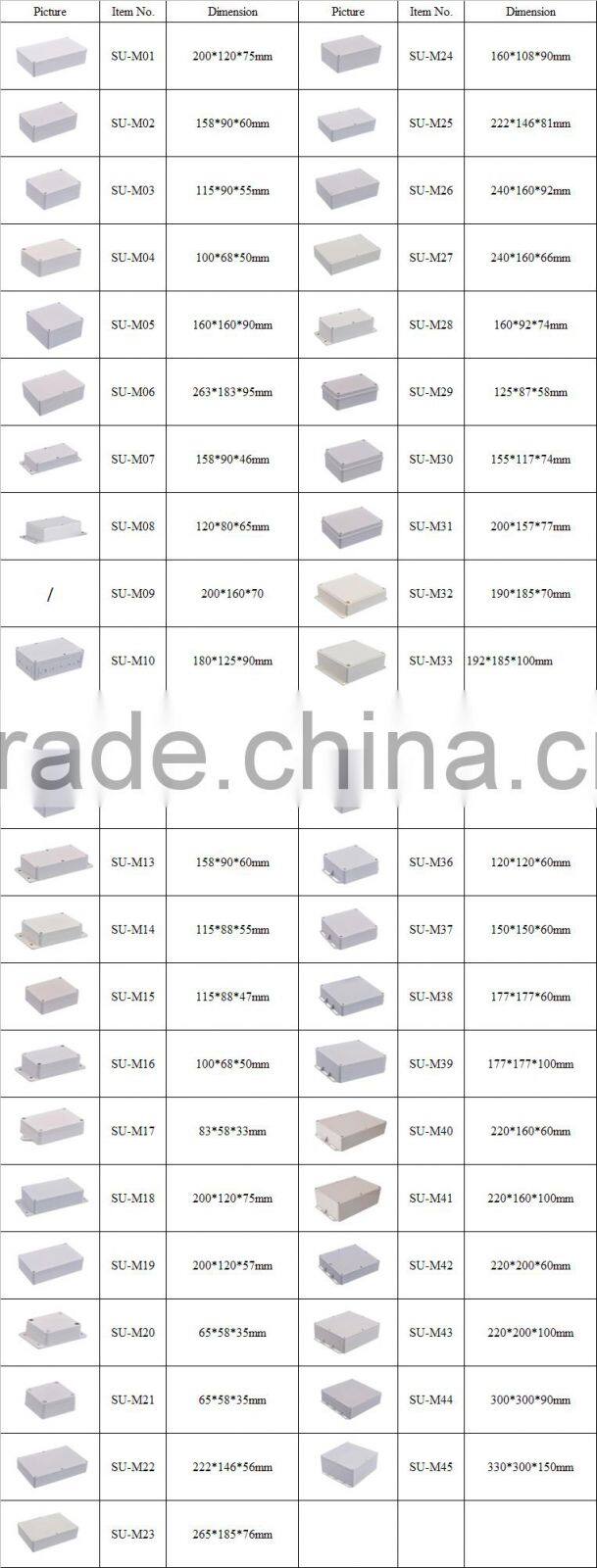

200*120*75mm, 158*90*60mm, 115*90*55mm, 100*68*50mm, etc. |
MATERIAL |
ABS |
COLOUR |
Light gray |
PROTECTION LEVEL |
IP65 |
Standrad assessories:
PARTS | ||||
S/N |
PARTS NAME |
QTY |
MATERIALS |
SPECIFICATION |
|
1
|
COVER |
1 |
ABS |

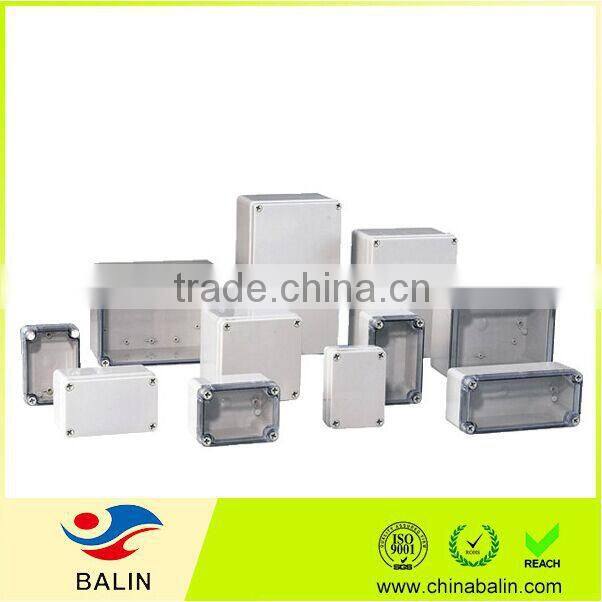

Transparent PC, flame-retardant or anti-eletrostaic plastic is available. |
|
2
|
BASE |
1 |
ABS |
|
|
3
|
SEALING |
1 |
SILICON |
|
|
4
|
SCREW |
4 |
STAINLESS STEEL |
|
Material: ABS/PC
Base color : RAL 7035-light gray
Cover color :RAL 7035-light gray
Cover Screws materials: Stainless steel
Gasket material : Silicon Rubber
Rating:
Ingress Protection (EN 60529):IP 65
Impact Resistance (EN 62262):IK 07
Electrical insulation:Totally insulated
Halogen free (DIN/VDE 0472, Part 815):Yes
Flammability Rating (UL 746 C 5):UL 94 HB
Glow Wire Test (IEC 695-2-1) °C:650
NEMA Class:NEMA 1, 4, 4X, 12, 13
Temperatures:
Min temperature °C (short term): -40
Max temperature °C (short term): 80
Min temperature °C (continuous): -20
Max temperature °C (continuous): 60
Min temperature °F (short term): -40
Max temperature °F (short term): 176
Min temperature °F (continuous): -40
Max temperature °F (continuous): 140
Note:
1.Mounting foot kits, plastic or brass cable glands are optional.
2. Material and color can be customized, but order quantity must reach our MOQ.
3. The material can be changed to transparent PC, flame-retardant or anti-electrostatic plastic, butorder quantity must reach our MOQ.
and so on, but there will be surcharge.
5. Certificates for waterproof and ex-proof are not available.
