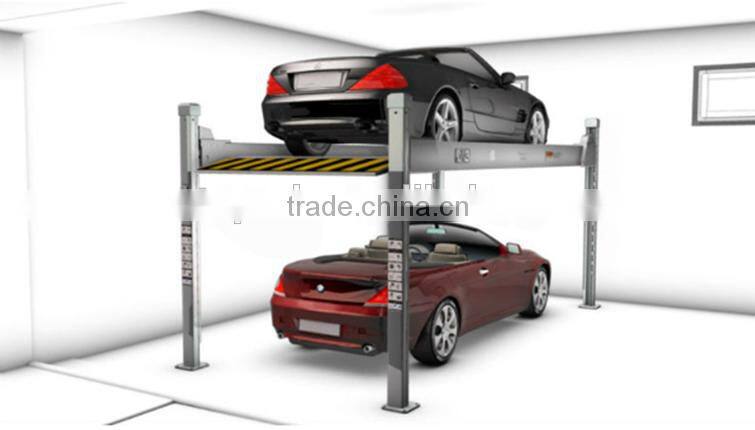

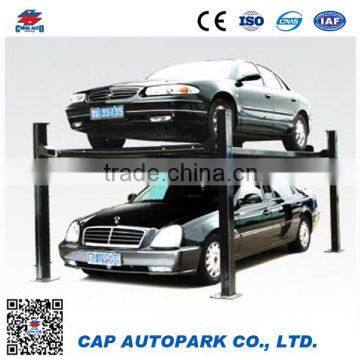

4 POST MINI AUTOPARK

4 POST MINI AUTOPARK thumbnail-1
4 POST MINI AUTOPARK photo-1
US$ 1,500 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other
Height (mm):
Vehicle Length 5000
Width (mm):
Vehicle Width 1850
Contact Supplier Request Quote Chat Now
CAP Auto-Park Co., Ltd.(Jiangsu)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other
Height (mm) Vehicle Length 5000
Width (mm) Vehicle Width 1850
Place of Origin Jiangsu, China
Brand Name CAP
Model Number CAP-MAP-PPS-M4
Warranty 1 Years

PRODUCT DESCRIPTION

This kind of parking system is the simple way of Puzzle parking system,  which only have one pallet serving 2 vehicle.

4 POST MINI AUTOPARK





PERFORMANCE

The parking pallet is able to move up and down, when the pallet is on the up level, driver can directly drive the vehicle into the spot on ground.

When retrieving vehicle on the up level, vehicle downside must be driven away first.





FEATURE

1. Double parking spaces;

2. Simple and compact structure;

3. Fast and easy installation;

4. Simple operation with self-recover key switch;

5. Multiple safety devices;

6. Customized size and surface color;

7. Low maintenance cost;

8. It does not block field vision and ventilation of the building;

9. Can be moved or relocated by caster kit easily.

4 POST MINI AUTOPARK

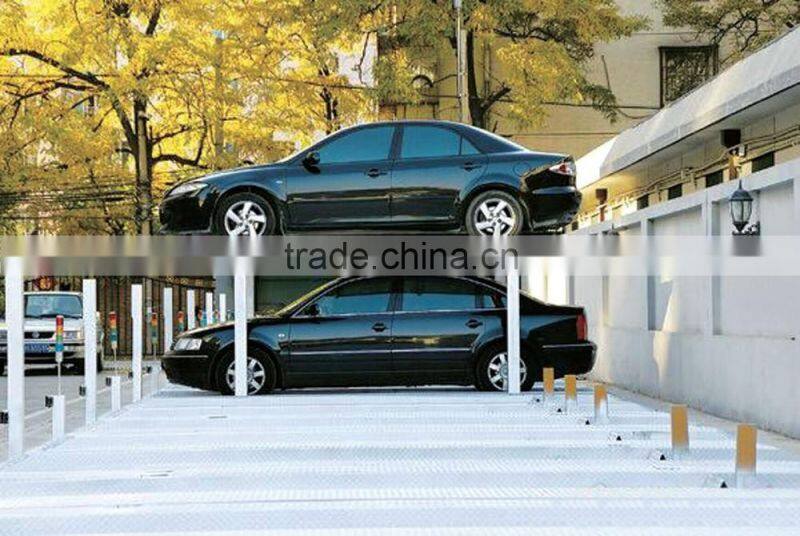

APPLICATION

1. It is fit for outdoors, basements and villas.

2. It is suitable for both commercial and residential parking purposes.

3. It can be used for both sedan & small SUV.

 4 POST MINI AUTOPARK



SPECIFICATION

Model

CAP-MAP-PPS

  Remarks

Vehicle spec.   L X W X H (mm)

≤5000 x 1850 x 1550

can be customized

Vehicle weight (kgs)

≤1750

2350(max)

Speed (m/min)

Max. 2.5



Power (kw)

3.7



Parking mode

Forward(backward) in & backward(forward) out

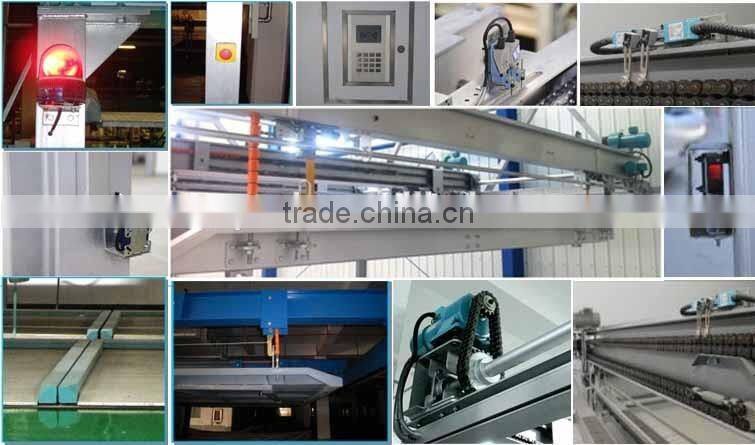

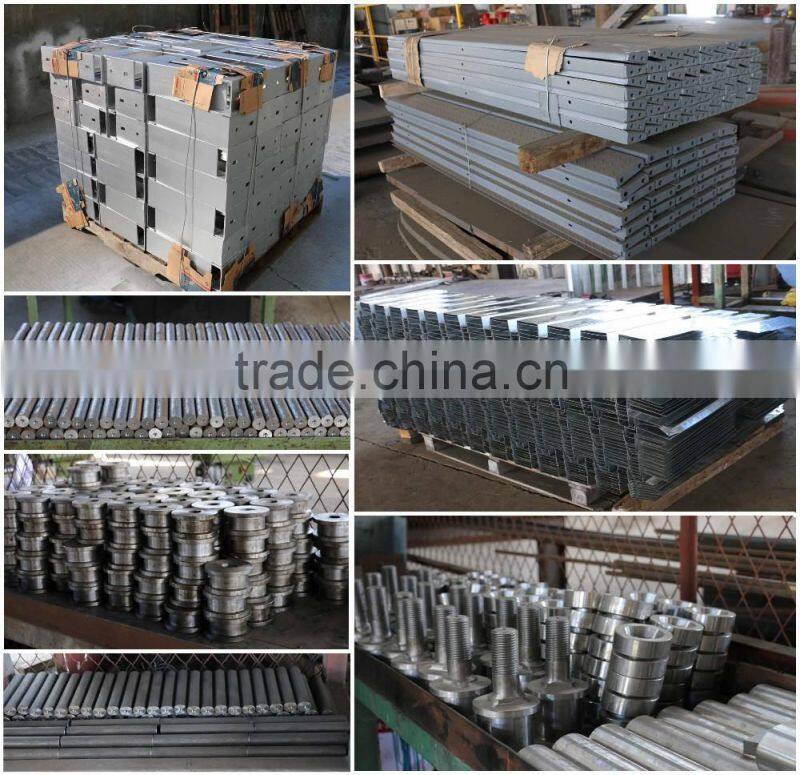

PRODUCT WORKMANSHIP

We use advanced technology such as laser cutting, robotic welding etc. which ensure our product not only high quality but also beautiful appearance.

4 POST MINI AUTOPARK





PACKING & SHIPPING

1. Iron frame to fix equipment;
2. All electric wires and motor put into carton;
3. Iron frame and carton will be covered by stretch film;
4. Each package will twine three stretch film to prevent water.

4 POST MINI AUTOPARK





CONTAINER LOADING

40ft

4-9 units





OUR SERVICES

1. 5 years guarantee for main structure and 1 year for parts;

2. 24 hours technical support by e-mail;

3. Calling or door to door service;

4. Friendly English software, user manual or detailed drawing/CD;

5. To meet different user purposes, we provide customized service.




FAQ

1. How many cars could be parked for each set?

2 cars.

2. Could this MINI PUZZLE PARKING SYSTEM be used for parking SUV?

Yes. It’s suitable for 2 SUVs, 2 Sedans or 1 SUV & 1 Sedan.

3. Is MINI PUZZLE used indoor or outdoor?

Both ways are ok.

Platform is combined with customized cover plates; Finishing of structure is powder coating.

4. What's the MOQ?

1 set for 2 vehicles.

5. Is the installation simple and easy?

Yes. Most of structure and parts are pre-positioned in factory. Detailed installation manual and drawing are provided from us. If the project is necessary, we could send our engineer for site guidance.







COMPANY INFORMATION



CAP AUTO-PARK CO., LTD. is the pioneer and leader of Parking comprehensive service industry in China , invested by China Ever Bright Group that is one of the key enterprises managed by China government, and CAP has more than 30 branches and sister companies all over the world; meanwhile, more than 90,000 garages designed and constructed by CAP.







Technology: CAP has been cooperating with the world top Auto-parking companies more than 20 years. Through introducing and adopting of the advanced technologies, CAP kept trying innovation to reach realizations of many outstanding patents all over the world.







Product: various styles of Auto-parking products to satisfy different parking requirements much more safe, convenient and efficient.







Business Model: Mass customized production, Investment & development and operation & management.







Professional Team: more than 50 experts with average over 10 years working in Auto-parking industry.







Production Capability: 35,000 garages annually.
