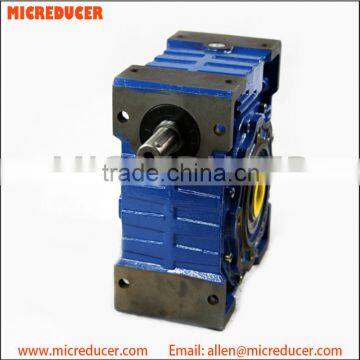

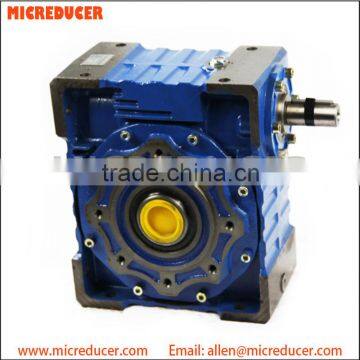

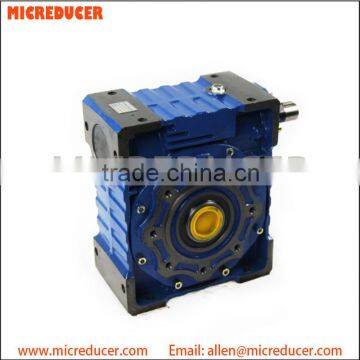

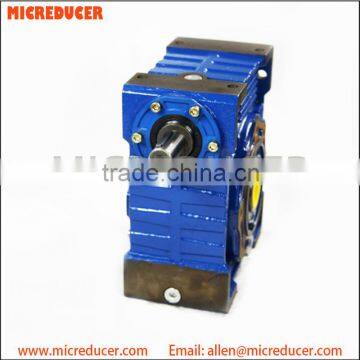

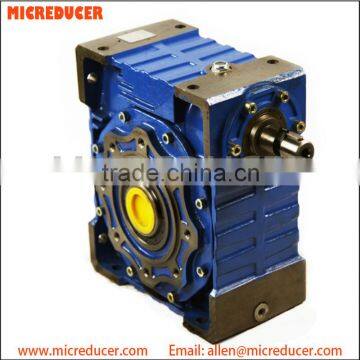

Help CenterChinese NRV Type Reduction Gearbox
Related Products
-
Bonfiliglio Like NRV Series Worm Drive Speed ReducerUS$ 24 - 156MOQ: 1 Set -
Worm Wheel NRV Series Gear Speed ReducerUS$ 24 - 156MOQ: 1 Set
-
NRV 025 Right Angle Speed ReducerUS$ 32 - 32MOQ: 1 Piece
-
Italian Designed NRV Series Worm Gear Speed ReducersUS$ 24 - 156MOQ: 1 Set
-
China Made NRV Series Worm GearboxUS$ 24 - 156MOQ: 1 Set
Motovario Like Reducers NMRV+NMRV25 to 150 Speed Reducer
| Type: | Worm Gear Speed Reducer | ||||||||
| Model: | NRV110-150 | ||||||||
| Ratio: | 1:7.5,10,15,20,25,30,40,50,60,80,100 | ||||||||
| Color: | Blue/Silver Or On Customer Request | ||||||||

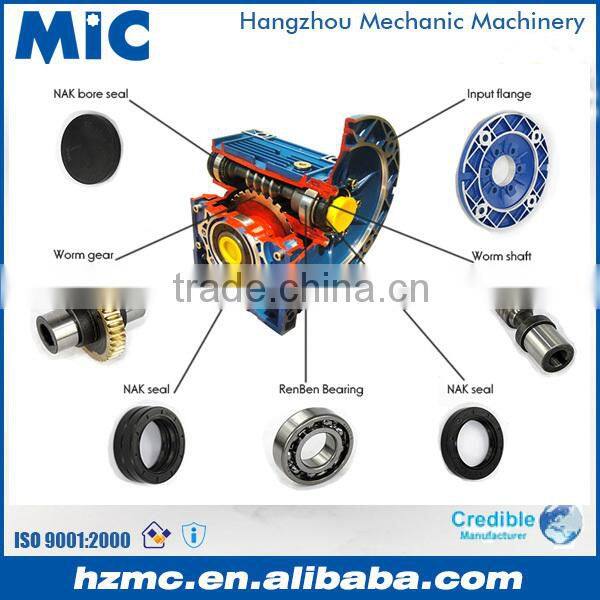

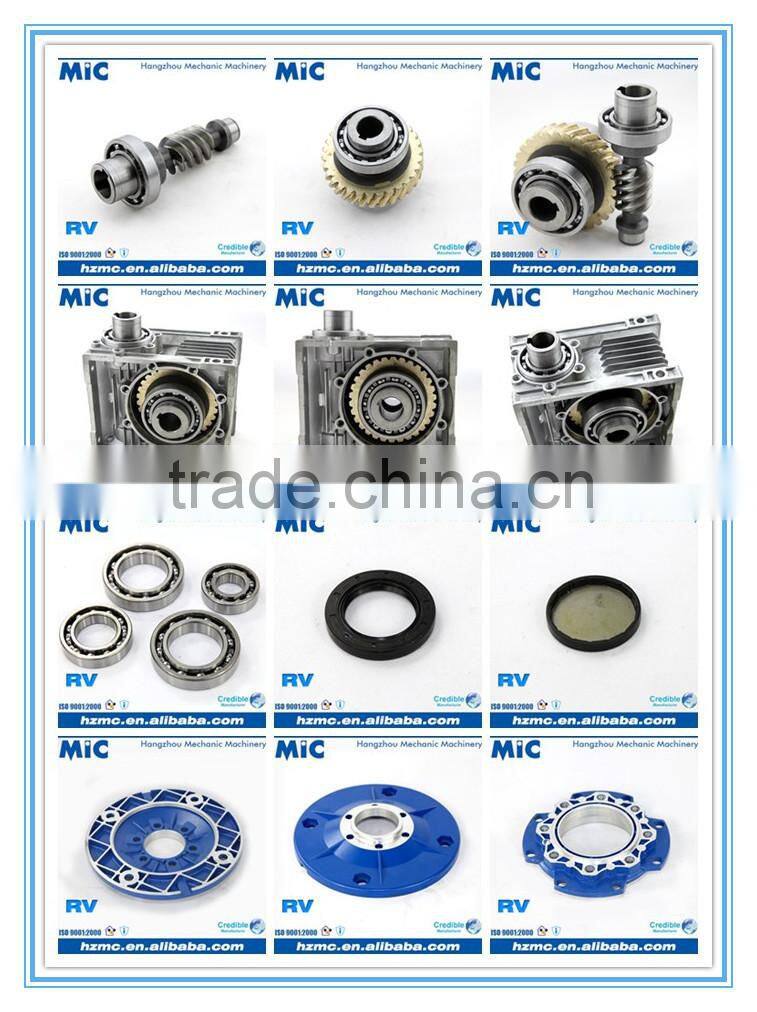

| Material: | Housing: Cast Iron | ||||||||
| Worm Gear-Copper-9-4# | |||||||||

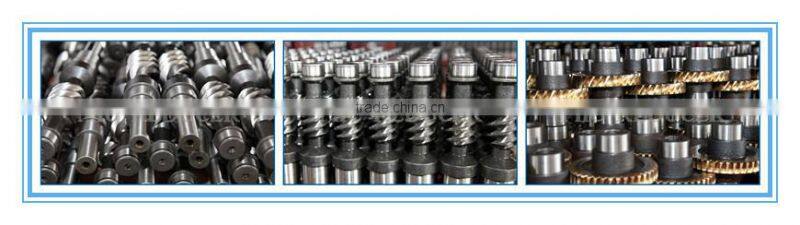

| Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |||||||||
| WheelBoss : Cast Iron | |||||||||
| Packing: | Carton and Wooden Case | ||||||||
| Bearing: | Input: C&U W&W Output: HGH or Upon Customer Request | ||||||||
| Seal: | SKF & NAK | ||||||||
| Warranty: | 1 Year | ||||||||
| Input Power: | 1.1KW-25.8KW |
||||||||

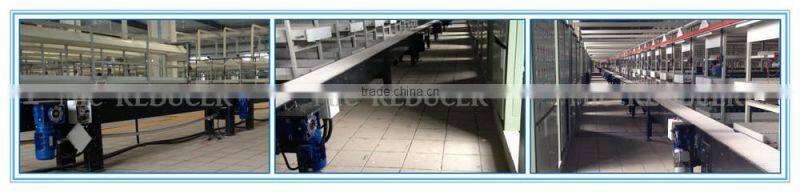

| Usages: | Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass... |
||||||||
| IEC Flange: |
|
||||||||
| Lubricant: | Synthetic&Mineral |
||||||||

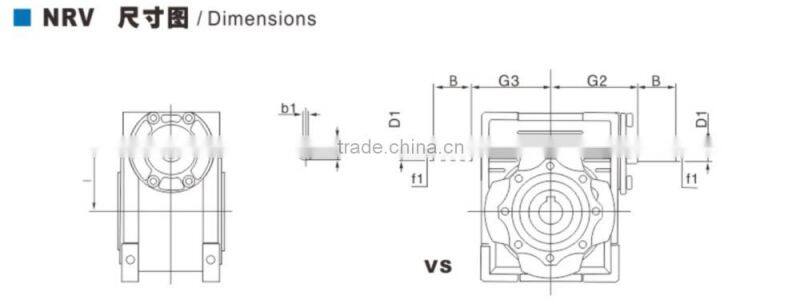

| NRV | 030 | 040 | 050 | 063 | 075 | 090 | 110 | 130 | 150 |
| B | 20 | 23 | 30 | 40 | 50 | 50 | 60 | 80 | 80 |
| D1 | 9j6 | 11j6 | 14j6 | 19j6 | 24j6 | 24j6 | 28j6 | 30j6 | 35j6 |
| G2 | 51 | 60 | 74 | 90 | 105 | 125 | 142 | 162 | 195 |
| G3 | 45 | 53 | 64 | 75 | 90 | 108 | 135 | 155 | 175 |
| I | 30 | 40 | 50 | 63 | 75 | 90 | 110 | 130 | 150 |
| b1 | 3 | 4 | 5 | 6 | 8 | 8 | 8 | 8 | 10 |
| f1 | - | - | M6 | M6 | M8 | M8 | M10 | M10 | M12 |
| t1 | 10.2 | 12.5 | 16 | 21.5 | 27 | 27 | 31 | 33 | 38 |
#House shape on request is available
- mountings....................................................................................MIC

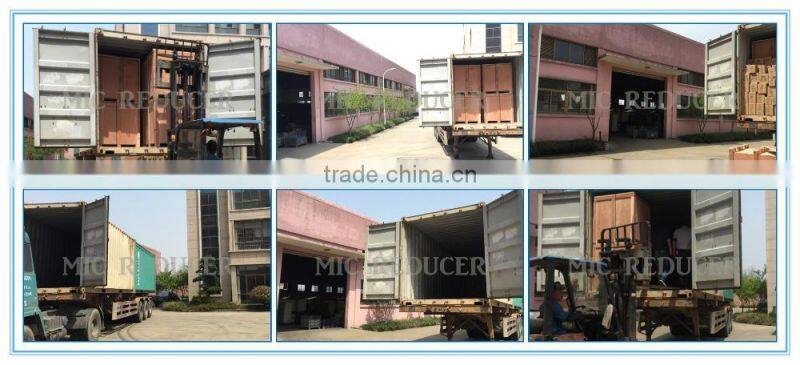

How to delivery:
By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - We arrange to delivery goods to some place in China appoint by buyers.
Process Of An Order:
1.Please check product detailed information above:
A.Model/Size B.Transmission Ratio
C.Shaft Direction D.Order Quantity.
2.Our Export Service Team will contact you with a qultation file 3 hours after our team get your enquiry.
3.When you please an order, our team will confirm with you about color, package,method of payment and delivery, then a sales contract will be sent to you to confirm.
4.Packing: Carton and Wooden Case.

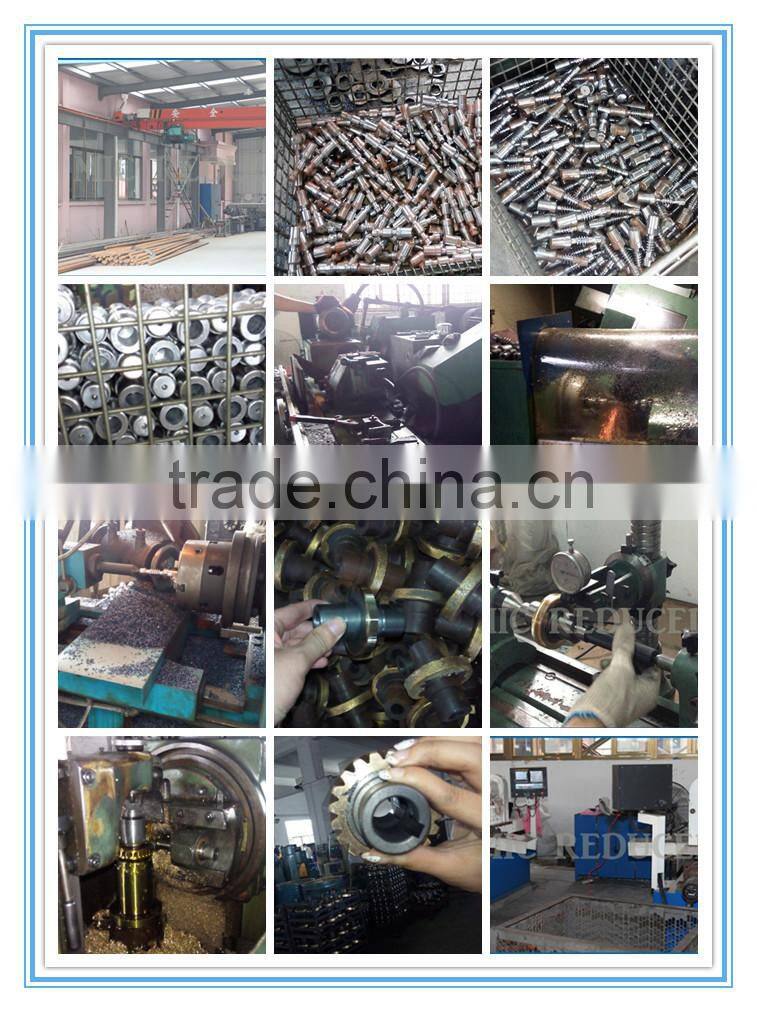

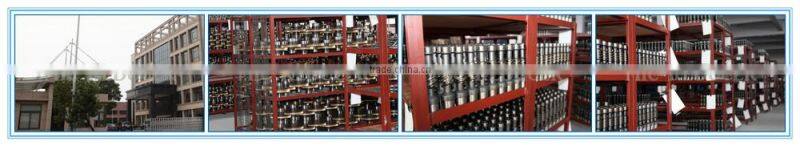

Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
