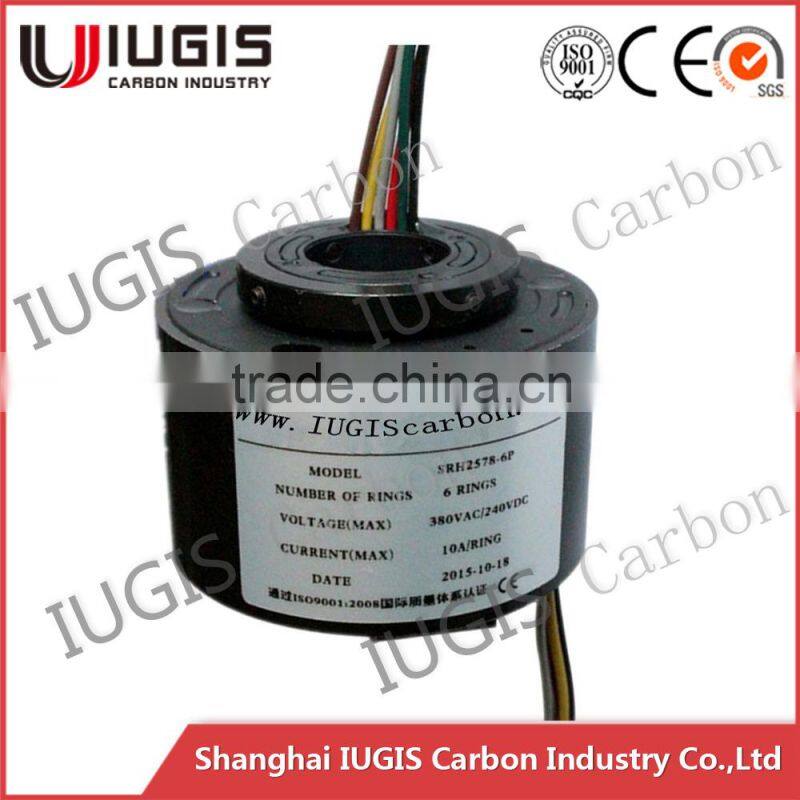

SRH2578 6 wires Through Bore Slip Ring for Process Equipment
Through-Bore Slip Ring
Typical Applications: Industrial Machine-Maching Centers, Raotary Index Table, Heavy Equipment Turrets, Cable Reels, Test Equipment, Palletizing Machines, Magnetic Clutch, Process Equipment, Raotary Sensors, Emergency Lighting, Robotics, Exibition Display Equipment, Medical Equipment...
|
|
|||||||||||||||||||
Specification |
Unit |
Operate Speed |
0-600rpm |
Contact material |
Gold or silver alloy |
Bearing |
Steel ball bearing |
Housing |
ABS Engineering plastics |
Temperature range |
-40 to 80 |
IP |
IP 51- IP 65 |
Feature:
Via diameter 25mm, an outer diameter: 78mm
SRH2578 is a standard series of through-hole slip rings, through-hole diameter of 25mm (applicable to any <= 50mm), an outer diameter of 78mm overall precision conductiveplastic and aluminum structures of the slip ring. Support signal 2A,10A, 10A voltage 240VAC / VDC.
Compared to similar products with high rotational accuracy, more stable performance and longer life. The use of contact materials used precious metal plated + superhard,torque is small, stable, long life, small fluctuations in resistance, contact resistance, ensuring excellent transmission performance.
Customize Data:
1. Whether Need Through Bore: Diameter of Through Bore
2. Transmission Type ( Power, Signal or Data )
3. Dimension: Outside Diameter and Length
4. No. Of Circuits (Power & Signal)
5. Rated Voltage/ Current
6. Connecting Way
7. Rotation Speed
8. IP Class
IUGIS Supply:
1. Traditional Slip Ring
2. Through-Bore Slip Ring
3. Capsule Slip Ring
4. Wind Energy Slip Ring
5. Integral Slip Ring
6. FORJ Fiber Optic Rotating Joint
7. SHFRJ High-frequency Slip Ring
8. Pancake Slip Ring
9. Mercury Slip Ring
10. Engineering Machinery Slip Ring
11. Wire/Cable Slip Ring
12. Agricultural Machinery Slip Ring
13. Plucker Slip Ring
14. ZS Collector Ring
15. Customized Slip Ring
Our Products Are Widely Used in: Security, Factory Autonation, Electric Instrumentation, Medical, Aerospace, Civil and Military Fields. Such as: Crane, Giant Wheel, Cotton Picker, Medical Equipment, Strander, Webcam, Automatic Revolving Door, Amusement Equipment, Irrigation Machine.....
1. Delivery time is 5-7 days for sample and 15 working days for the bulk order;
2. Strong production capacity and strictly quality contol system;
3. Payment condition: 30% before condition, 70% before delivery:
4. Your inquiry and problems related to our products will be replied in 24 hours;
5. Well-tained and experienced staffs to answer all you questions;
6. Payment: L/C, D/A, D/P, T/T, PAYPAL,WESTUNION,MONEYGRAM;
7. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINAPOST
After Sales Service
1.1year warranty for most of our products;
2.We will arrange delivery of the goods on time:
3.Within the warranty period, we will bear all the qulity problem of our produts;
4.Beyond the warranty period, we will despatch the replacement parts to help fix the products;
5.Without any problem, we will gain the feedbacks of our products to help improve better products.
