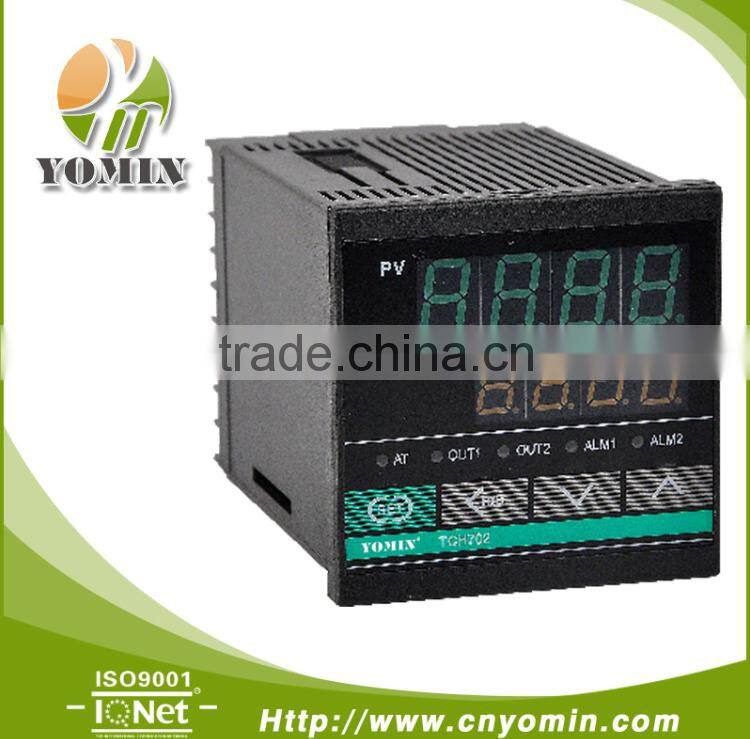

China manufacture Temperature Controller CD/CH Series CH702, Temperature controller/ Quality Choice

FOB Price

USD $3 - $30 / Piece

10 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Ningbo/Shanghai/Wenzhou
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	YOMIN	Model Number:	CH702
Usage:	Household	Theory:	Temperature Controller	Accuracy:	0.1
Temperature Range:	0~999℃

Product Description

China manufacture Temperature Controller CD/CH Series CH702, Temperature controller/

Technical Data

Model Name

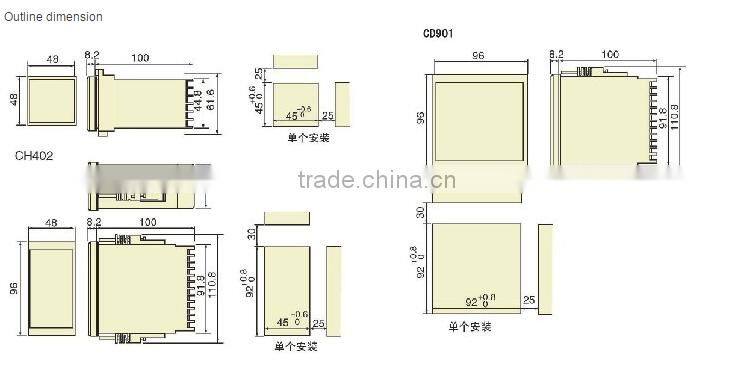

1.Outline dimension	See the outline dimension picture
2.Control Mode	F:PID operation and auto calculating (reverse operation)	D:PID operation and auto calculating(Forward operation)
2.Control Mode	W:eating/cooling PID operation and auto calculating(cooling water)*1	A:heating/cooling PID operation and auto calculating(cooling water)*1
3.Input mode	Refer to Input Range Table
4.Range Code	Refer to Input Range Table
5.First control output(OUT1) (Heating side)	M: Relay contact output V: Voltage impulse output T: Thyratron output	8: Current output(IC4-20mA) G: Thyratron driving & triggering output
6.Second control output( OUT2) (Cooling side)*2	No mark: when the control mode is F or D M: Relay contact output V: Voltage impulse output	T: Thyratron output 8: Current output(IC 4-20mA)
7.First alarm(ALM1) 8.Second alarm (ALM2)*2	N: no alarm A: Upper-limit bias alarm B: Lower-limit bias alarm C: Upper/lower limit bias alarm D: alarm in area E: Standby upper-limit bias alarm attached F: Standby lower-limit bias alarm attached G: Standby upper/lower limit bias alarm H: Upper-limit input value alarm	J: lower-limit input alarm K: Standby upper-limit input alarm attached L: Standby lower-limit input alarm attached P: Heater breakage alarm(CTL-6)3 S: Heater breakage alarm(CTL-12)3 R: Control line breakage alarm *4 V: Upper-limit set value alarm W: Lower-limit set value alarm
9.Communication*5	N:No communication	5:RS-485(two-wire system)
10.Water-proof/dust-proof	N:no water-proof/dust-proof	1:with water-proof/dust-proof

Refer to Input Range Table

	Input type	Set range	Input type	Set range
Thermocouple Input(TC)	K	0 to 1372°C(0 to 2502 F)	J	0 to 1200°C(0 to 2192 F)
	R	0 to 1769°C(0 to 3216 F)	S	0 to 1769°C(0 to 3216 F)
	B	0 to 1820°C(0 to 3308 F)	E	0 to 1000°C(0 to 1832 F)
	N	0 to 1300°C(0 to 2372 F)	T	-199.9 to +400.0°C(-199.9 to +752.0 F)
	W5Re/W26Re	0 to 2320°C(0 to 4208 F)	PL	0 to 1390°C(0 to 2534 F)
	L	0 to 900°C(0 to 1652 F)	U	-199.9 to +600.0°C(-199.9 to +999.9 F)
RTD Input Pt	100Ω(JIS/IEC)	-199.9 to +649.0°C (-199.9 to +999.9 F)	JPt100Ω(JIS)	-199.9 to +649.0°C (-199.9 to +999.9 F)
Voltage input	0 to 5V DC	1 to 5V DC	-1999 to +9999(programmable range)
Current input	0 to 20mADC	4 to 20mADC	-1999 to +9999(programmable range0)
