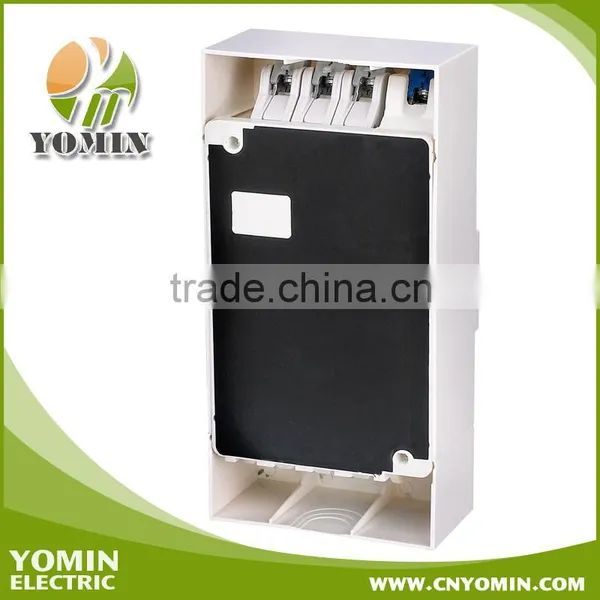

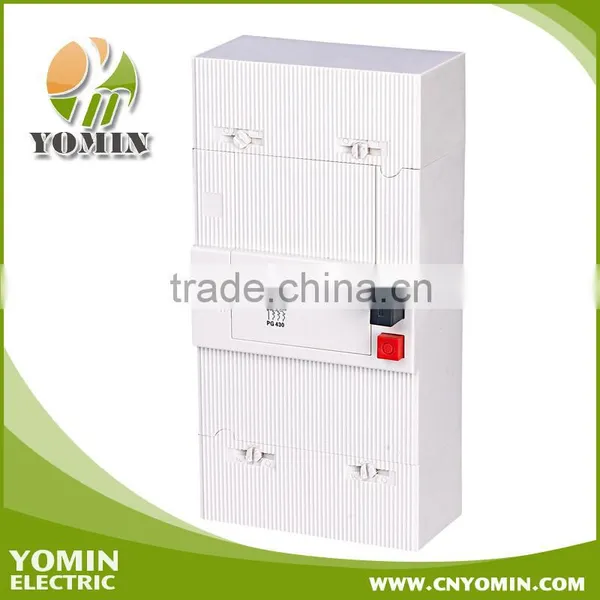

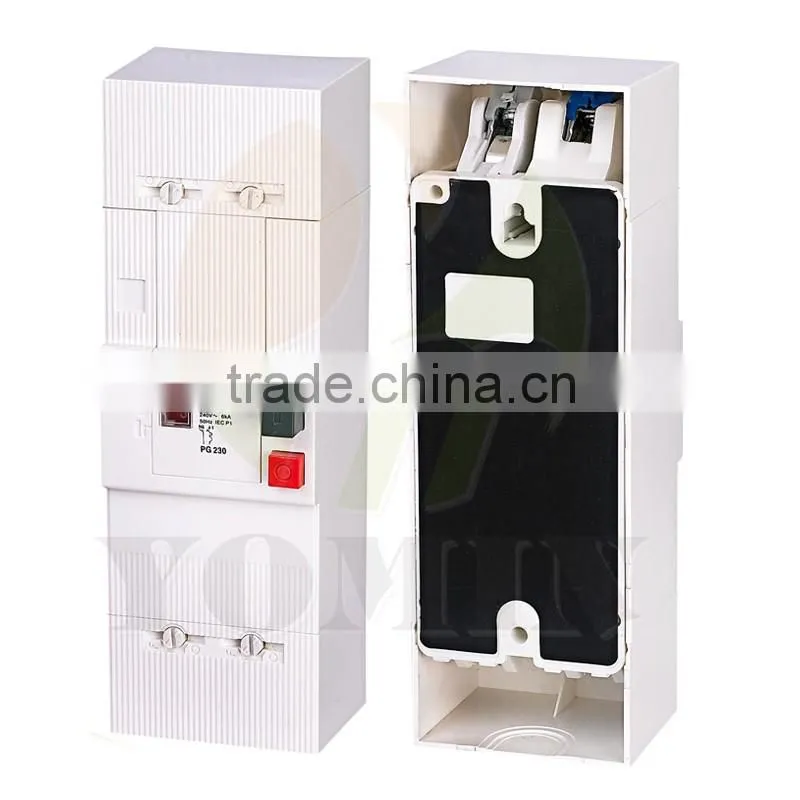

Industrial PG Molded Case Circuit-Breakers with Leakage Protection / 4P ELCB
PG Series leakage overload breaker applying to the 50-60Hz, 220V(240), single-phase, 380V-415V. Three-phase and below it, used for industry and enterprise, build, commercial and family, etc. The products use can selectsuitable current for better protection against over-load and short circuit. With standard NFC61450.
Main technical parameter
|
Rated current (A) |
Delay action character |
Transient Action charactor |
Rated leakage Action charactor |
Limit short circuit breaking capacity lus(KA) |
Rated operating short circuit capacity Lcs |
Arcing-over range (mm) |
||
|
1.05In nonoperation time |
1.45In Action time |
Rated leakage nonoperation current (mA) |
Rated leakage action current (mA) |
|||||
|
In≤60
|
≥1h
|
≤1h |
10In± 20%
|
150/250 |
350/500 |
4 |
4 |
0 |
|
Modle |
Rated current |
Adjustable current |
Rated leakage current |

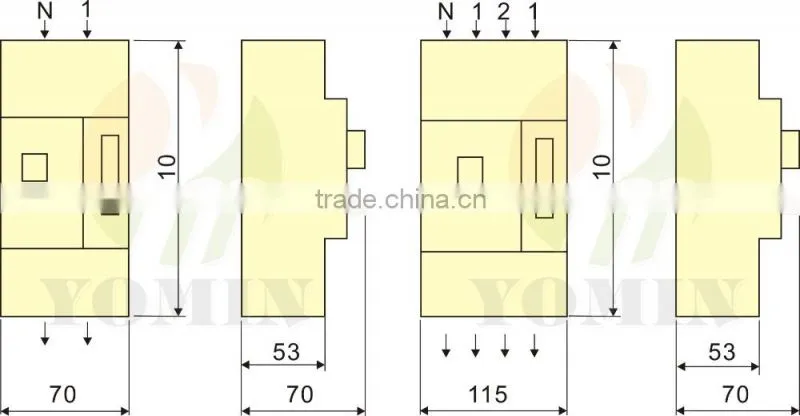

Extemal size |
Codel |
Suitable standard |
|
1P 1P+N 1P+N |
15 |
5, 10, 15 |
/ |
209x69x71 |
PG215000 |
|
300 |
PG215300 |
|||||
500 |
PG215500 |
|||||
|
1P 1P+N 1P+N |
30 |
10, 15, 20, 25, 30 |
/ |
PG230000 |
||
300 |
PG230300 |
|||||
500 |
PG230500 |
|||||
|
1P 1P+N 1P+N |
45 |
15, 30, 45 |
/ |
PG245000 |
||
300 |
PG245300 |
|||||
500 |
PG245500 |
|||||
|
1P 1P+N 1P+N |
60 |
30, 40, 50, 60 |
/ |
PG260000 |
||
300 |
PG260300 |
|||||
500 |
PG260500 |
|||||
|
3P 3P+N 3P+N |
15 |
5, 10, 15 |
/ |
209x105x71 |
PG415000 |
|
300 |
PG415300 |
|||||
500 |
PG415500 |
|||||
|
3P 3P+N 3P+N |
30 |
10, 15, 20, 25, 30 |
/ |
PG430000 |
||
300 |
PG430300 |
|||||
500 |
PG430500 |
|||||
|
3P 3P+N 3P+N |
45 |
15, 30, 45 |
/ |
PG445000 |
||
300 |
PG445300 |
|||||
500 |
PG445500 |
|||||
|
3P 3P+N 3P+N |
60 |
30, 40, 50, 60 |
/ |
PG460000 |
||
300 |
PG460300 |
|||||
500 |
PG460600 |
Industrial PG Molded Case Circuit-Breakers with Leakage Protection / 4P ELCB
