Help Center22A 3 Phase Contactor
US$ 4.91 - 5.2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
CJX5-22
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
YOMIN
Model Number
CJX5-22
Electricity Type
AC
Number of Pole
3
Phase
Other, Single-phase or Three-phase
Main Circuit Rating Voltage
Other, 24V, 36V, 110V, 220V, 380V, 415V

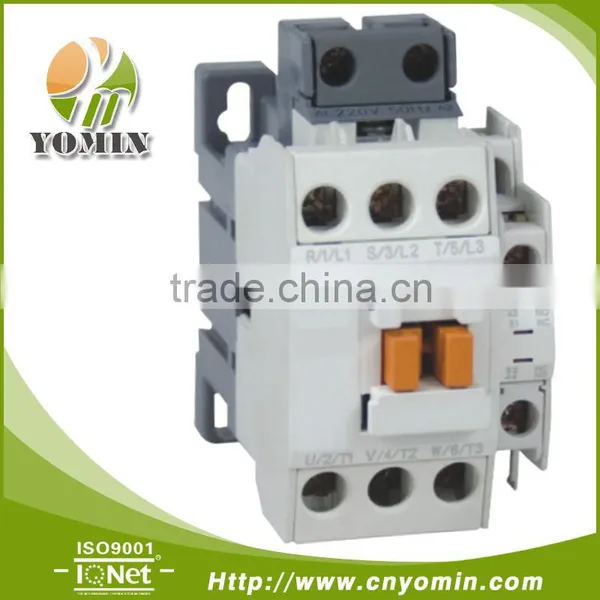

22A 3 phase Contactor
Model: CJX5-22
Product Description
AC Contactors (Magnetic Contactor) provide remote control of primarily electric motors and compensation & heating systems by cable. They protect the instruments and equipments against overload currents by using thermal relays, for capacitor switching contactor. While switching on a capacitive circuit, a high frequency (1...15Hz) and large transient current peaks are produced. Switching of capacitor for a single or one of the capacitor banks are different from each other. Step by step "switching on" operation is more difficult for contactor than capacitor bank. Because during this operation for capacitor bank, compensated current occurs. For this reason selecting of suitable contactors the compensating current must be take into consideration for 50kVAR and above, and for less than 50kVAR can be omitted.
Feature
- Magnetic Contactor should have the high current value without being exposed to and damaged or boiling. This belongs to the quality of contactor. (Contact surface quality and weld technology) Especially at AC-3 and capacitor command, selectivity of contactor is very important.
- Current which passes through the contacts causes warming when the contactor is closed. This warming is limited with the standards. For IEC60947-4-1 when continual thermal current (Ith) is passed though the main contacts, maximum increasing temperature should not exceed 65k.
- While the contactor is cutting the current, electrical arc occurs between the seperated contacts. Arc is the result of the thermal impression of electron and ion current which broke off the contact material. Temperature of the arc reaches to thousands of degrees and this temperature is too high for metals and insulators which are used at contact making and cutting cells. Therefore, arc should end as soon as possible. For this reason separators are used inside of contactors.
Specifications
- Rated Current.............................................................22A
- Frame Current.............................................................85A
- No. of Pole...................................................................3-POLE
- Rated Operational Voltage.........................................690V AC
- Rated Insulated Voltage.............................................690V AC
- Frequency....................................................................50/60Hz
- Standards................................................................... IEC60947-4-1
- IP / NEMA Rating.........................................................IP20
- Connection..................................................................Screw + Cable Lug
- Working Temperature................................................-20℃ ~ +80℃
- Mechanical Life.......................................................... 20,000times
- Sample Service...........................................................Pay to Provide
- Quality Assurance......................................................24 months
- Item Condition.............................................................Brand-New
Selection Form
| Item | Rated Current | Thermal Current | Control Capacity | Case Qty. |
| Model | (A) | (A) | (KW) | (Pcs.) |
| CJX5-09 | 9 | 20 | 4 | 60 |
| CJX5-12 | 12 | 20 | 5.5 | 60 |
| CJX5-18 | 18 | 25 | 7.5 | 60 |
| CJX5-22 | 22 | 32 | 11 | 60 |
| CJX5-32 | 32 | 50 | 15 | 40 |
| CJX5-40 | 40 | 60 | 18.5 | 40 |
| CJX5-50 | 50 | 80 | 22 | 20 |
| CJX5-65 | 65 | 100 | 30 | 20 |
| CJX5-75 | 75 | 110 | 37 | 20 |
| CJX5-85 | 85 | 135 | 45 | 20 |

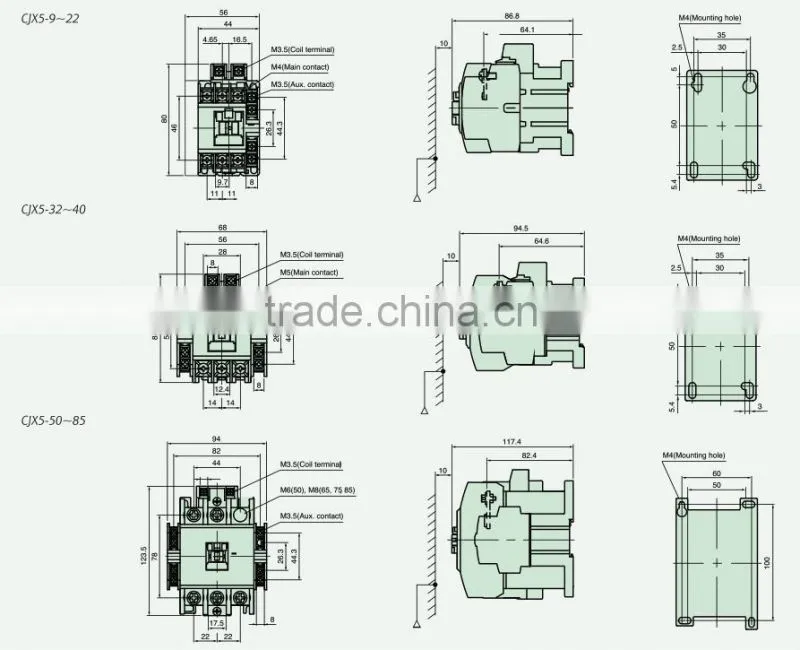

Dimension
