Help Center30A 1POLE DP Contactor
US$ 2 - 3
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
CJX3-30/1 240V
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
YOMIN
Model Number
CJX3-30/1 240V
Electricity Type
AC
Number of Pole
1
Phase
1
Main Circuit Rating Voltage
Other, 240V

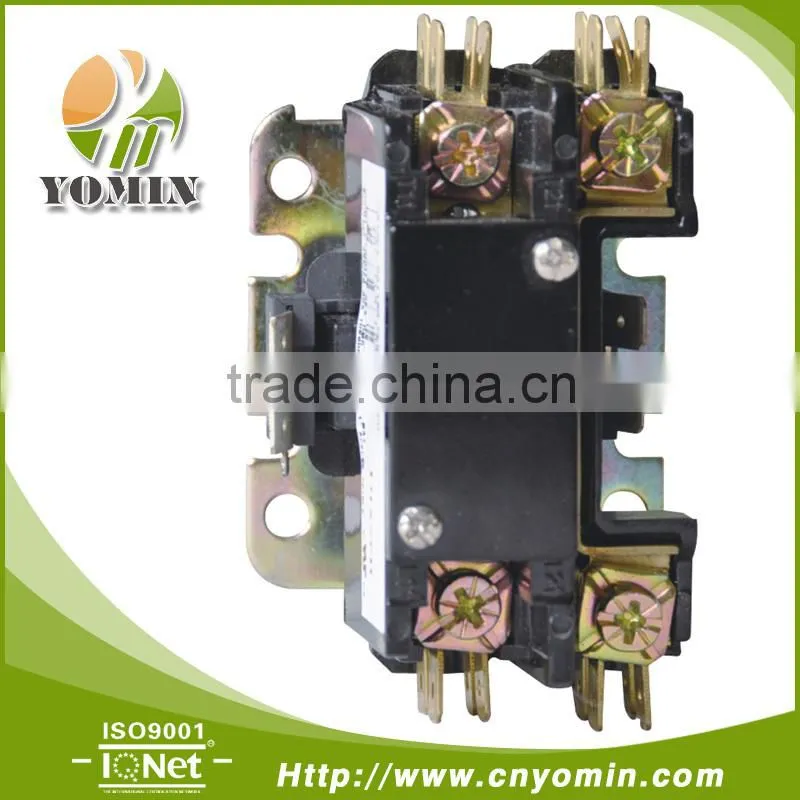

30A 1POLE DP Contactor
Model: CJX3-30/1 240V
Product Description
DP Contactors are designed for using in refrigeration, Air conditioning, and electric heating systems. Power connections can be made with either screw terminals with pressing connects or Box lug terminals with quick connects.

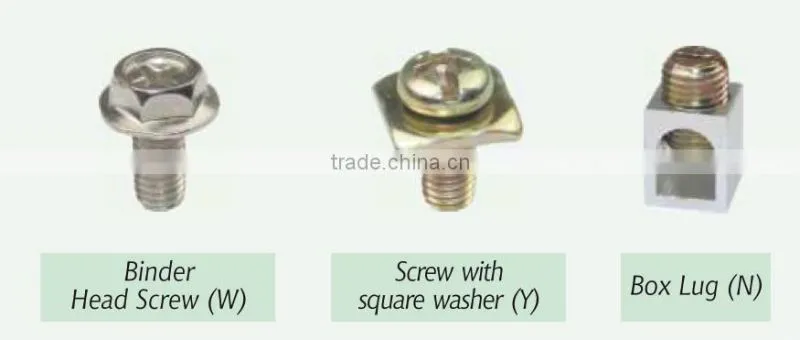

Terminals Option
There are three sorts of terminals for CJX3 Series Difinite Purpose contactor (or called D/P contactor or DP Contactor)
- 1. Binder Head Screw (Code W): Pressing connects.
- 2. Screw with square washer (Code Y): Pressing connects.
- 3. Box lug (Code N): Quick connects.
Feature
- Magnetic Contactor should have the high current value without being exposed to and damaged or boiling. This belongs to the quality of contactor. (Contact surface quality and weld technology) Especially at AC-3 and capacitor command, selectivity of contactor is very important.
- Current which passes through the contacts causes warming when the contactor is closed. This warming is limited with the standards. For IEC60947-4-1 when continual thermal current (Ith) is passed though the main contacts, maximum increasing temperature should not exceed 65k.
- While the contactor is cutting the current, electrical arc occurs between the seperated contacts. Arc is the result of the thermal impression of electron and ion current which broke off the contact material. Temperature of the arc reaches to thousands of degrees and this temperature is too high for metals and insulators which are used at contact making and cutting cells. Therefore, arc should end as soon as possible. For this reason separators are used inside of contactors.
Specifications
- Rated Current.............................................................30A
- Coil Volatge.................................................................240V
- No. of Pole...................................................................1-POLE
- Rated Operational Voltage.........................................690V AC
- Rated Insulated Voltage.............................................690V AC
- Frequency....................................................................50/60Hz
- Standards................................................................... IEC60947-4-1
- IP / NEMA Rating.........................................................IP20
- Connection..................................................................Screw + Cable Lug
- Working Temperature................................................-20℃ ~ +80℃
- Mechanical Life.......................................................... 20,000times
- Sample Service...........................................................Pay to Provide
- Quality Assurance......................................................24 months
- Item Condition.............................................................Brand-New
Selection Form
| Item | No. of Pole | Rated Current | Coil Voltage | Case Qty. |
| Model | (A) | (V) | (Pcs) | |
| CJX3-20/1 24V | 1P | 20 | 24 | 40 |
| CJX3-20/1 120V | 1P | 20 | 120 | 40 |
| CJX3-20/1 240V | 1P | 20 | 240 | 40 |
| CJX3-25/1 24V | 1P | 25 | 24 | 40 |
| CJX3-25/1 120V | 1P | 25 | 120 | 40 |
| CJX3-25/1 240V | 1P | 25 | 240 | 40 |
| CJX3-30/1 24V | 1P | 30 | 24 | 40 |
| CJX3-30/1 120V | 1P | 30 | 120 | 40 |
| CJX3-30/1 240V | 1P | 30 | 240 | 40 |

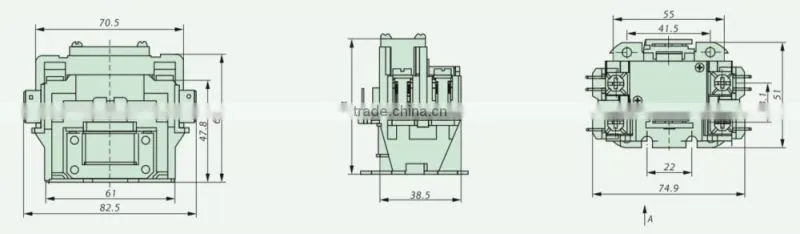

Dimension
