25A 2-CELL 4POS Reversing Cam Switch
Model: DW26-25/2+RE003
Thank you for viewing this listing.
Please take a moment to review our other items.
Add us to your favourite sellers list, many thanks!
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switch are suitable for AC as well as DC application used for virtually all purposes, such as motor control, panel meter switching, control and distribution panel, etc.
Construction Demo:
Reversing Cam Switch providing motor reversing, directly operate the motor with AC3 or AC4 duty rating.

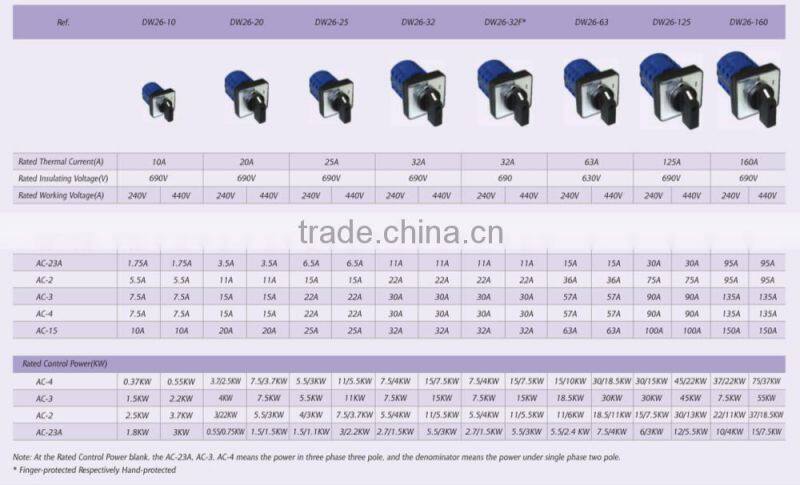

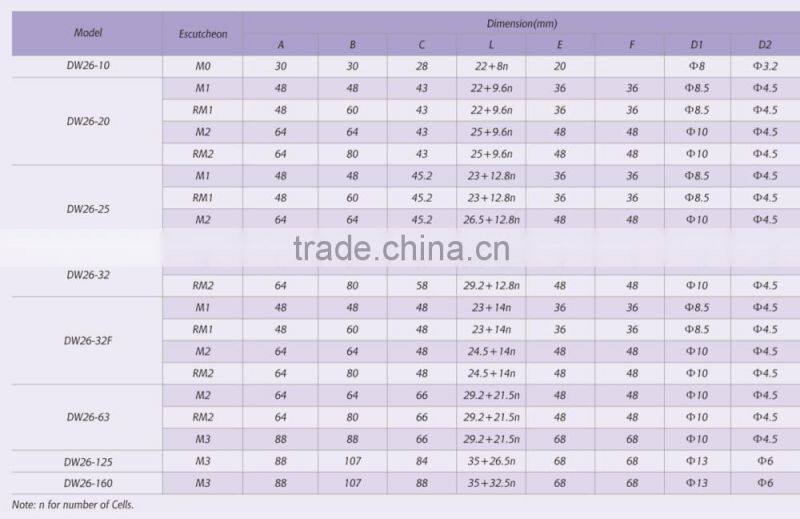

Below is DW26 series overall specifications.
- Max. Current...................................................25A
- No. of Cells.....................................................2-Cell
- Function..........................................................Reversing Motor
- No. of Switch Positions.................................4POS.
- Max. Voltage....................................................690V AC
- Frequency........................................................50/60Hz
- Operation Series.............................................Rotary Cam
- IP / NEMA Rating.............................................IP20
- Working Temperature....................................-25°C~+40°C
- Altitude............................................................≤2,000m
Relative Humidity............................................≤50% @ Max. +40°C, (NOTE: allow higher humidity with low temperature less than 40°C eg.:humidity 90% @ 20°C)
- Customized Escutcheon................................Provided
- Standards........................................................IEC60947-3, EN60947-3, VDE0660 part 107, IEC60204, VDE0113,
- Mechanical Life...............................................100,000times
- Electrical Life...................................................30,000times
- Operative Frequency......................................120times per hour.
- Pollution Rating..............................................Class III
- Installation.......................................................Panel Mounting.
- Sample Service...............................................Pay to provide
- Quality Assurance..........................................24 months
- Item Condition................................................Brand-New

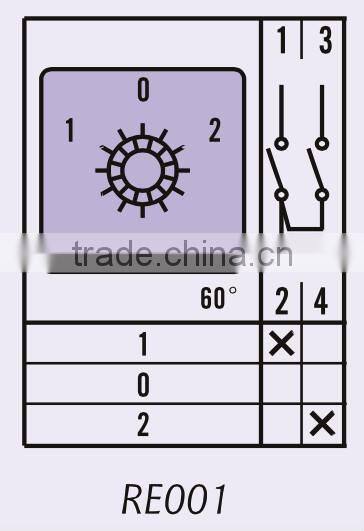

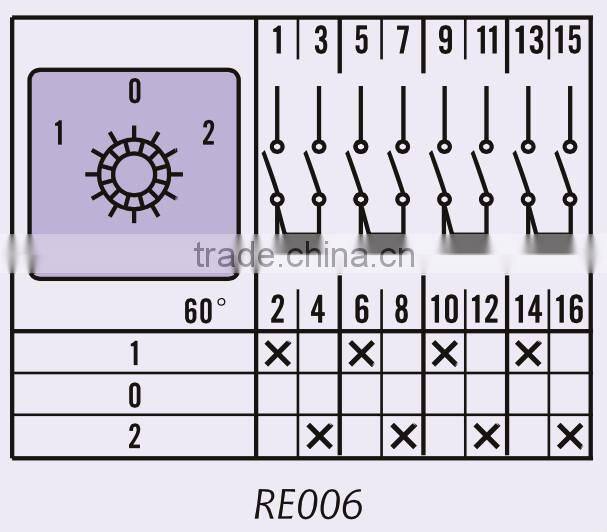

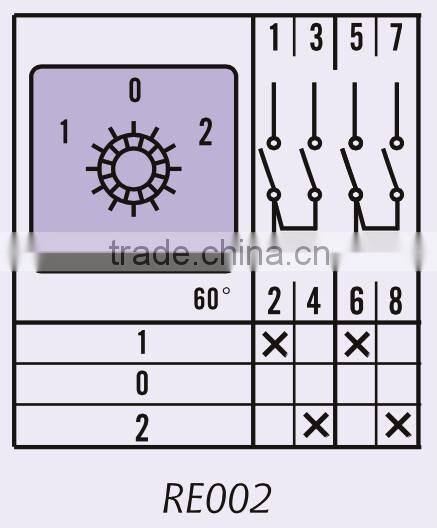

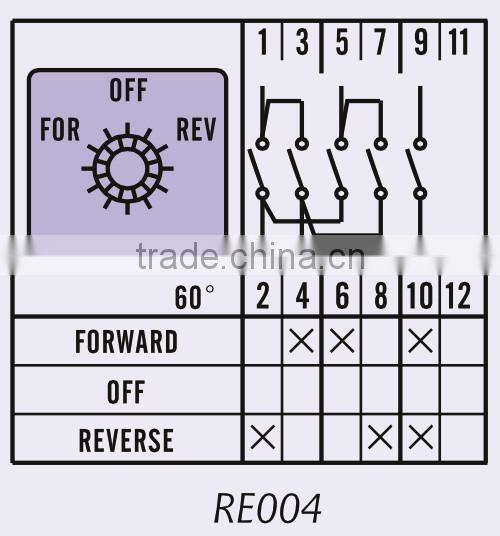

| Item | Rated Thermal Current | No. of Cells | Programme Code |
| Model | (A) | ||
| DW26 | 10, 20, 25, 32, 63, 125, 160 | 1 | +RE001 |
| 2 | +RE002 | ||

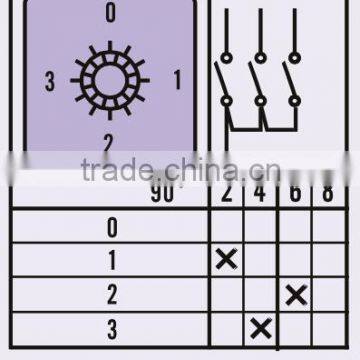

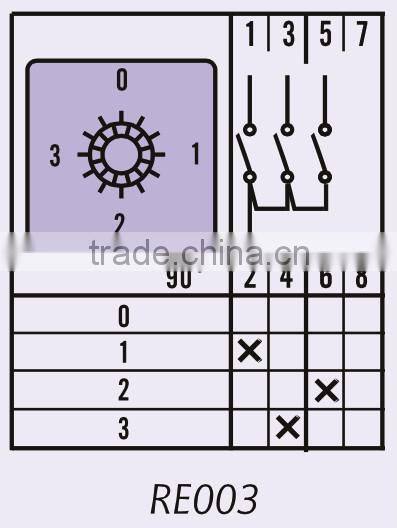

| 2 | +RE003 | ||
| 3 | +RE004 | ||

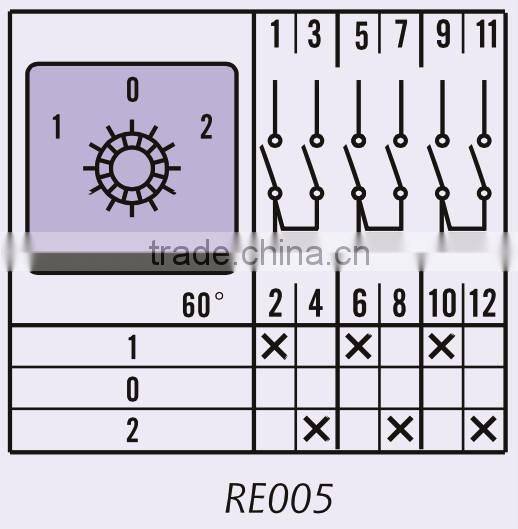

| 3 | +RE005 | ||
| 4 | +RE006 |
Note:
Please mention the Programme Code when ordering.
How to order?
If you would like to find out more details of our products, please feel free to contact me by mobile: 0086 13968745210
