Home > Products > 8. CAM Switch > 32A 5-CELL 2POS Cam Switch With Removable Key
32A 5-CELL 2POS Cam Switch With Removable Key
US$ 11.89 - 12
/ Piece
1 Piece(Min. Order)
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOMIN | |
| Model Number | DW26Q-32F/5 | Max. Current | 32A | |
| Max. Voltage | 690V AC | Mechanical Life | 100,000times (Operation frequency is 120 times per hour |
Product Description
32A 5-CELL 2POS Cam Switch with Removable Key
Model: DW26Q-32F/5
Product Description
Cam Swith with Removable Key is a Main Switch, providing a easy key to drive the switch to 0-1 (OFF-ON) positions, when removing the key, then no one can operate the switch.
Product Overviews

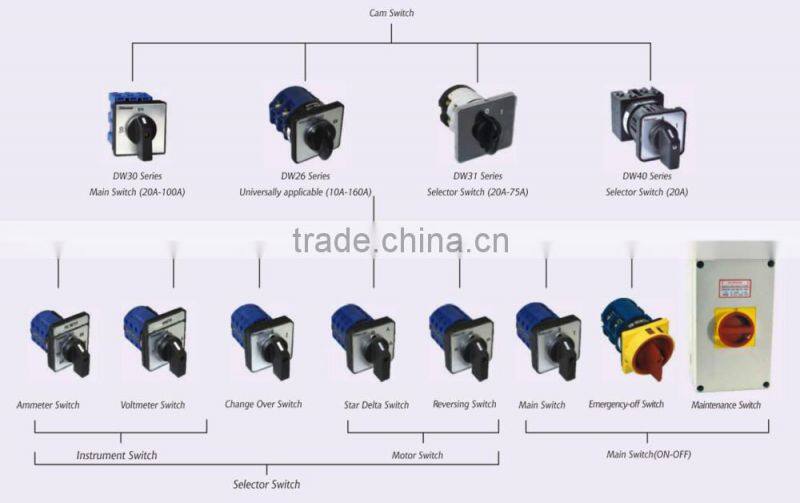

The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switch are suitable for AC as well as DC application used for virtually all purposes, such as motor control, panel meter switching, control and distribution panel, etc.
Specifications
- Max. Current...................................................32A
- No. of Cells.....................................................5-Cell
- Function..........................................................1 - 0 (OFF-ON)
- No. of Switch Positions.................................2POS.
- Max. Voltage....................................................690V AC
- Frequency........................................................50/60Hz
- Operation Series.............................................Rotary Cam
- IP / NEMA Rating.............................................IP20
- Working Temperature....................................-25°C~+40°C
- Altitude............................................................≤2,000m
Relative Humidity............................................≤50% @ Max. +40°C, (NOTE: allow higher humidity with low temperature less than 40°C eg.:humidity 90% @ 20°C)
- Customized Escutcheon................................Provided
- Standards........................................................IEC60947-3, EN60947-3, VDE0660 part 107, IEC60204, VDE0113,
- Mechanical Life...............................................100,000times
- Electrical Life...................................................30,000times
- Operative Frequency......................................120times per hour.
- Pollution Rating..............................................Class III
- Installation.......................................................Panel Mounting.
- Sample Service...............................................Pay to provide
- Quality Assurance..........................................24 months
- Item Condition.................................................Brand-New
Selection Form
| Item | Rated Thermal Current | No. of Cells | Function |
| Model | (A) | ||
| DW26Q-20 | 20 | 1 | 0 - 1 [OFF - ON] |
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| DW26Q-25 | 25 | 1 | 0 - 1 [OFF - ON] |
| 2 | |||
| 3 | |||
| 4 | |||
| 5 | |||
| DW26Q-32F | 32 | 1 | 0 - 1 [OFF - ON] |
| 2 | |||
| 3 | |||
| 4 | |||
| 5 |

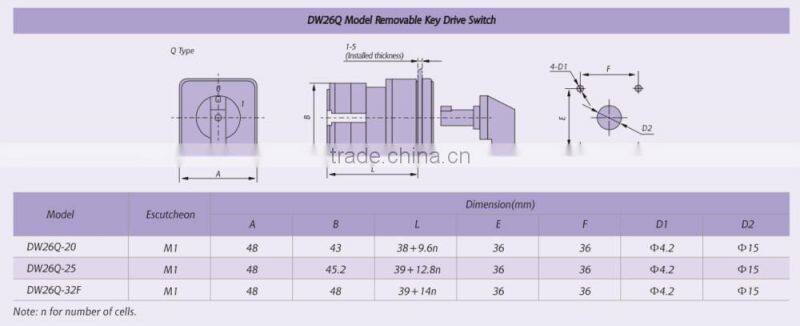

Dimension
