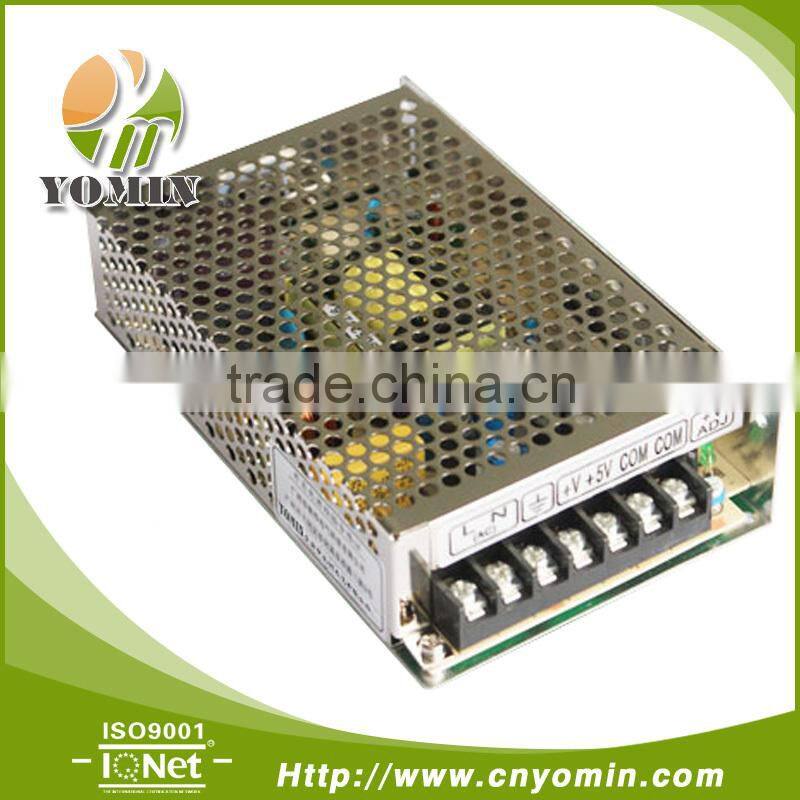

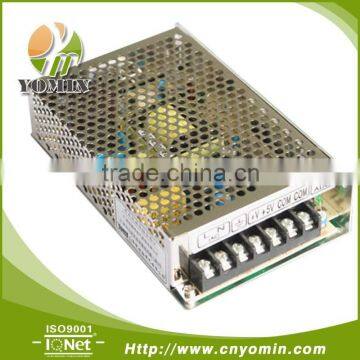

60W 24V 3A Dual Output Switch Power Supply

Name: 60W 24V 3A Dual Output Switch Power Supply
Brand: YOMIN
SKU: 114091361
Availability: InStock

US$ 8.84 - 9.6 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

YOMIN

Model Number:

D-60

Yueqing Yomin Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI for Switching Power Supply

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name YOMIN

Model Number D-60

Output Power 51 - 100W

Output Type Dual

Input Voltage 220V

Output Voltage 5V,12V,24V

Output Frequency 47/63Hz

Output Current 4A,3A,1.8A

Features

1. Competitived price and high reliability

2. 105°C Output capacitor

3. AC input power suitable for the world

4. High efficiency and low operation temperature

5. Soft-start current can reduce the AC input impact effect

6. With short-circuit and overload protection

7. Compact size, light weight

8. 100% full-load burn-in test

9. Installed with EMI filter, minimum wave

Technical Parameters

Model	D-60A		D-60B
Performance	CH1	CH2	CH1	CH2
DC output voltage	5V	12V	5V	24V
Output Voltage Tolerance (Note 2)	±2%	± 6%	±2%	±5%
Rated output current	4A	3A	3A	1.8A
Output Current Range	0.3-6A	0.2-4A	0.3-6A	0.2 -2.2A
Ripple and noise (Note 3)	75mVp-p	150mVp-p	75mVp-p	150mVp-p
Into the line of stability (Note 4)	± 0.5%	± 1%	± 0.5%	± 0.5%
Load stability (Note 5)	± 0.5%	± 4%	± 0.5%	± 4%
DC output power	56W		58W
Efficiency	73%		76%
DC voltage adjustable range	CH1:+10, -5%		CH1:+10, -5%
Input Voltage Range	85 ~ 264VAC 47 ~ 63Hz
Input Current	2A /115V,1A/230V
Inrush Current	Current 30A/115V 60A/230V cold start
Leakage	<1A /240VAC
Overload	105% ~ 150% Type: PULSING HICCUP SHUTDOWN RESET: Automatic recovery
Over Voltage Protection	CH1:5.75 ~ 6.73V
Temperature Protection	…… ... ...
Temperature Coefficient	± 0.03%/ °C (0 ~ 50°C) ON+5V OUTPUT
Start, rise, hold time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC
Earthquake resistance	10 ~ 500Hz, 2G 10min. / 1 cycle, duration 60 minutes, each axis
Pressure of	Between input and output: 3KvAC,input and shell: 1.5KvAC, output and shell: 0.5KvAC
Isolation Resistance	Input and output, input and shell, shell and output: 500VDC/100M Ohms
Temperature, humidity	-10°C ~ + 60°C , 20% ~ 90% RH
Storage temperature, temperature	-20°C~ + 85°C,10% ~ 95% RH
Dimensions	15997 38mm
Weight	0.55Kgs
Safety Standards	To meet the UL1012 TUV (En60950), IEC950 certified
EMC Standards	CISPR22 (EN55022) CLASS B, IEC801-2, 3,4 IEC555-2
