Help CenterFMUSER 518D-50W UHFDigital All Solid State Wireless Analog TV Signal Broadcast Transmitter TV Station Equipment
Related Products
-
300W LDMOS Amplifier Digital tv Transmitter LocationsNegotiableMOQ: 1 Set -
300W LDMOS Amplifier Digital tv Transmitter MapNegotiableMOQ: 1 Set
-
300W LDMOS Amplifier Digital tv Transmitters ukNegotiableMOQ: 1 Set
-
300W LDMOS Amplifier Digital tv Transmitter KitNegotiableMOQ: 1 Set
-
300W LDMOS Amplifier Wireless Digital Cable tv TransmitterNegotiableMOQ: 1 Set
Specifications
>Most professional station>OEM ODM standard SPEC
>Frequency:76-108MHz (OEM 70-120MHz)
>High Quality 5 years Warranty

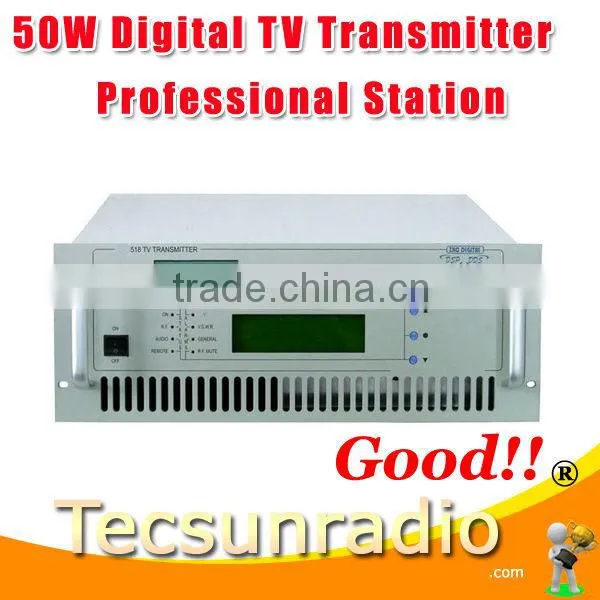

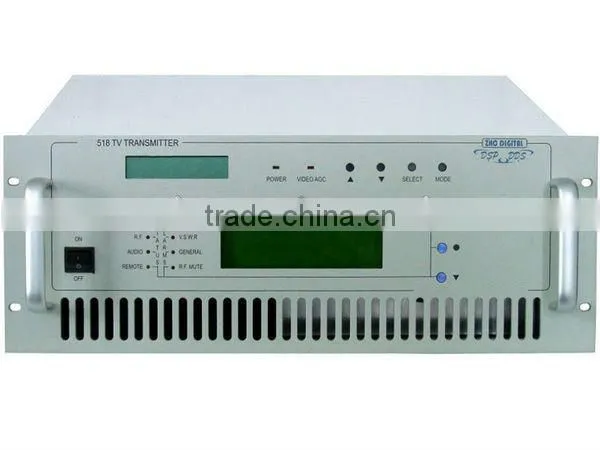

Fmuser 518A-50W UHF Digital TV transmitter TV Station
Description:
-------------------------------------------------------------------------------------
>Model : CZH518D-50W
>Product Name : 50W Digital tv Transmitter
>Power: 50W in a 60cm height 19' rack
>Professinal designed for TV stations
>Big LCD displays all parameters
>Switched power supply
>High reliability and Low price
Features:
--------------------------------------------------------------------------------------
- All solid-state digital TV transmitter, bandwidth is 6-8MHZ.
- Pre-distortion correction, dual-exciters switch automatically.
- High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency transmitter.
- Telemetry and remote control by computer, web-based interface and software.
- Good man-machine interface, full automatic switch the machine with one key.
- Multi protection (over voltage, over current, overheating, large standing-wave ratio )high reliability, 24 hours continuous works.
Specifications:
-----------------------------------------------------------------------------------------
- Working frequency:UHF 13~48 Channel arbitrary choice
- Channel bandwidth:8MHz
- Output power:50W
- Output impedance:50Ω
- Output interface:L16
- Output load return loss:Normal operation: -32dB
- Allowed operation: -20dB
- Power input level:0dBm
- Amplifier input impedance:50Ω
- Amplifier input interface: L16
- Useless transmission: ≤-60dB
- Band fluctuations:±0.5dB
- Band shoulder:better than 36dB
- MER:better than 30dB
- Size:400mm×600mm×950mm
- Weight:35KG
To know the transmitter:
-----------------------------------------------------------------------------------------------
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
Below are the approximate range of different power FM Transmitters. ( The range is radius,The following distance is bassed on the antenna . )
What we can do for you?
- If you need a set of perfect professional FM/TV transmission station.We can help you.Welcome to contact us .
- If you have any problem of the FM/TV transmission.Please contact us.we are a professional team who can help you.
- If you are in Guangzhou,welcome to our office to know more information about the FM/TV transmission.
- If you want to get some English manual,please contact me.
- We can help you to set A special TV station project with least cost and best quality.Welcome to our office.
- If you want to come to our office,please call me:
Erin Huang
Tel:+8620-87597795 +8620-87588285
Cellphone:+86 13711590185
Skype:Erin-huang2
About us:
------------------------------------------------------------------------------------------
We specialized in production and sales of FM / TV Transmitter , FM / TV antenna , the FM / TV transmitter accessories. We have been exporting FM /TV transmitter for 6 years. We have clients all over the world, not only the resellers but also the consumers. With 6 years experience in this field ,we have professional team and excellent aftersales service. We dedicated in supplying the best quality products with competive prices and excellent customer sevice! If you have any question about it , No matter you buy or not, please feel free to tell us your questions,we are very willing to help you and solve your problems.
Our factory:
Products list:
-----------------------------------------------------------------------------------------
We have modernization of the factory . You are welcome to visit our factory when you come to China.
At present , there are already 1095 customers around the world visited our Guangzhou Tianhe office . If you come to China , you are welcome to visit us .
If you want to come to my office,please contact:
Erin Huang
Tel:+8620-87597795 +8620-87588285
Cellphone:+86 13711590185
Skype:Erin-huang2
At Fair
This is our participation in 2012 Global Sources Hong Kong Electronics Fair . Customers from all over the world finally have a chance to get together.
How to find our Guangzhou Office:
-----------------------------------------------------------------------------------------
You can search this numbers "Fmuser " in google map , then you can find our fmuser office .
FMUSER Guangzhou office is in Tianhe District which is thecenter of the Canton . Very near to the Canton Fair , guangzhou railway station, xiaobei road and dashatou , only need 10 minutes if take TAXI . Welcome friends around the world to visit and negotiate .
Our team:
------------------------------------------------------------------------------------------
We have a good team who are work in unity and help one another.We will help you to sovle any problems in our different products.
