Help CenterTV518A-1000W UHF All Solid State Wireless Analog TV Signal Broadcast Transmitter TV Station Broadcasting Equipment
Related Products
-
TV 518A-2000W Analog VHF UHF All Solid State Wireless Analog TV Signal Broadcast Transmitter TV Station Broadcasting EquipmentUS$ 1,000 - 10,000MOQ: 1 Set -
TECSUN PL600 Radio FM/LW/MW/SW/SSB PLL Synthesized ReceiverNegotiableMOQ: 100 Units
-
TV 518A-3000W Analog VHF UHF All Solid State Wireless Analog TV Signal Broadcast Transmitter TV Station Broadcasting EquipmentUS$ 30,000 - 45,000MOQ: 1 Set
-
200W LDMOS Amplifier Digital TV TransmitterNegotiableMOQ: 1 Set
-
LDMOS Amplifier Digital tv Transmitter LocationsNegotiableMOQ: 1 Set
Specifications
>Most professional station>OEM ODM standard SPEC
>Frequency:76-108MHz (OEM 70-120MHz)
>High Quality 5 years Warranty

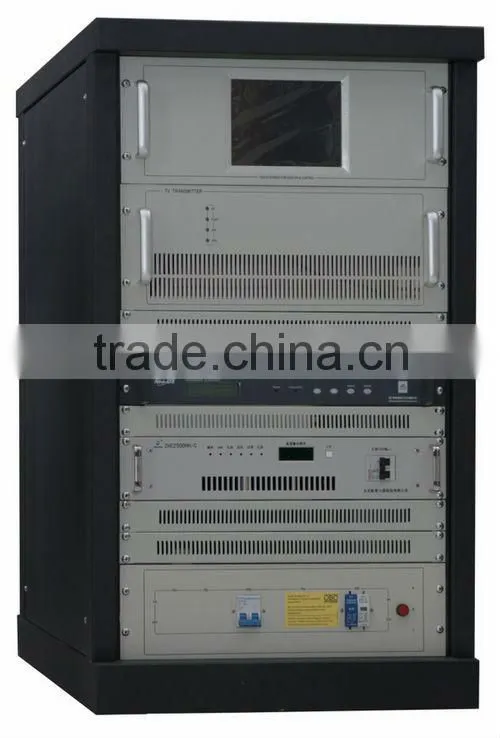

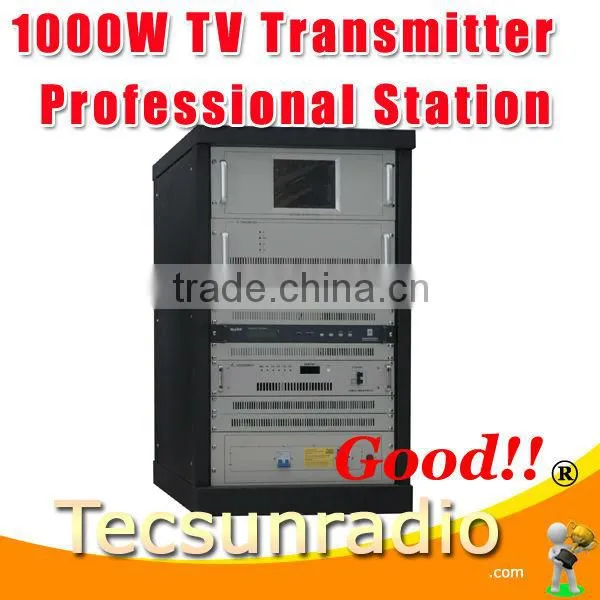

Fmuser 518A-1000W UHF TV transmitter TV Station
Description:
-------------------------------------------------------------------------------------
>Model : CZH518A-1000W
>Product Name : 1000W tv Transmitter
>Power: 300W/500W/1KW/2KW in a 1-Meter height 19' rack
>Professinal designed for TV stations
>Big LCD displays all parameters
>Switched power supply
>High reliability and Low price
Features:
--------------------------------------------------------------------------------------
- This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the single/duel exciter configuration, switching automatically.
- This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.
- It can prefabricate and control the half-power output, and it has remote control telemetry interface.
- The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
- The power amplifier and power supply are both used hot-plug devices.
- The power loss and standing wave of the one-time synthesis power combiner is small.
- The module of power amplifier display the working parameters in real-time.
- The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
- The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.

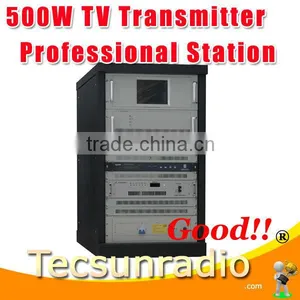

- The 500W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
Specifications:
-----------------------------------------------------------------------------------------
Working frequency:UHF 13~48 Channel arbitrary choice
>Working frequency:UHF 13~48 Channel arbitrary choice
>Output power:500W 1000W(Synchronous)
>Output impedance:50Ω
>Inter-modulation distortion:≤-50dB
>Useless transmission:In adjacent channel ≤-40dB
Out adjacent channel ≤-60dB
>RF output interface:l27
>Power supply:Single-phase 220V
>Shape size:1600mm×600mm×950mm
>Weight:150KG/120KG
Image performance:
>Video frequency input level:1VP-P positive polarity
>Video frequency input impedance:75Ω
>DG:±5%
>DP:±5°
>Luminance nonlinear:≤12%
Sound performance:
>Audio input level:0dBm±6dB
>Audio input impedance:10KΩ (imbalance)
>Maximum frequency deviation:±50KHz
>Harmonic distortion:≤1%
>Signal-to -clutter:≥60dB
To know the transmitter:
-----------------------------------------------------------------------------------------------
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
Below are the approximate range of different power FM Transmitters. ( The range is radius,The following distance is bassed on the antenna . )
- 50W TV Transmitter :3M ~10KM
- 100W TV Ttransmitter : 5KM ~ 15KM
- 300~500W TV Transmitter : 10KM ~20KM
- 1KW FM Transmitter : 15KM ~ 25KM
- 3KW FM Transmitter : 30KM ~40KM
- TV-VHF-5KW:with the 4 Bay DV1 antenna:45KM
- TV-VHF-10KW:with the Slot antenna:80KM
- TV-UHF-5KW:with the Slot antenna:45KM
- TV-UHF-10KW:with the Slot antenna:80KM
- Digital TV 50~100W:10KM~15KM
- Digital TV 300~500W:25~30KM
- Digital TV 1KW:40KM
