Manufacturer 1600VA Control Transformer ,Copper Transformer .

Manufacturer 1600VA Control Transformer ,Copper Transformer . thumbnail-1
Manufacturer 1600VA Control Transformer ,Copper Transformer . photo-1
US$ 50 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN
Model Number:
BK-1600
Contact Supplier Request Quote Chat Now
Yueqing Yomin Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YOMIN
Model Number BK-1600
Usage Power
Phase Single
Coil Structure Other, E type
Coil Number Autotransformer

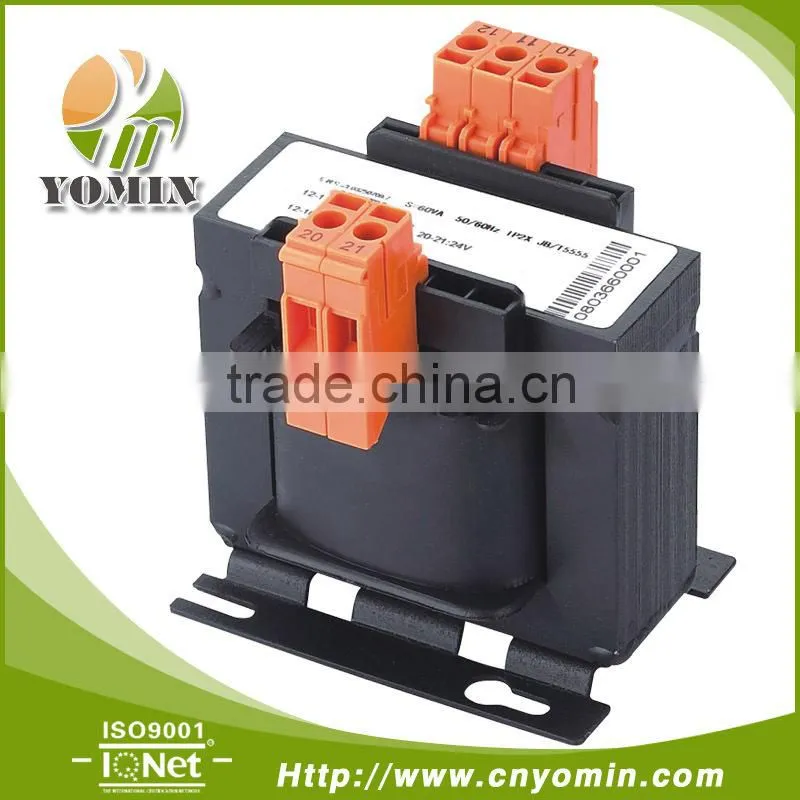

Manufacturer 1600VA Control Transformer

Copper Transformer Model: BK-1600

Manufacturer 1600VA Control Transformer ,Copper Transformer .

Product Overview

Selection of Toroidal Transformer

Toroidal Transformers offer many advantages over standard laminated power



transformers. Toroidals provide quiet, efficient operation with very low stray magnetic



fields. Their small size and weight support a package that is easy to design into any



application.

Manufacturer 1600VA Control Transformer ,Copper Transformer .

Advantages of Toroidal Transformer

1. A toroidal transformer weighs about half as much as conventional transformer with the



same capacity and heat rise. The main materials used in transformer are copper and steel,



both of which are getting scarcer with cost increases as a consequence.



2. No impregnation is needed to keep the laminates quiet so this potential environmental



hazard is avoided.



3. The toroidal transformer fits into a smaller space, which allows chassis plates and



enclosures to be smaller with less material used.



How to find VA for Transformers

Volt amps (VA) is the effective power rating for a transformer. In the perfect transformer, the



voltage and current (combined) applied at the primary will exactly equal the voltage and



current (combined) on the secondary(s).



Efficiency is measure of a transformer’s ability to delivery the input power to the load.



Efficiency is expressed as a percent by:



% = ( PO / PI ) X 100 (Where: PO = Output power, PI = Input power, % = Efficiency)



VA Calculation

1. Read the transformer’s secondary winding rating (printed or tagged on the transformer



case). This should give a rating such as 5V, 500mA.



Multiply the voltage times the current to receive the VA.



Example: 5V times 500mA (or 0.5A) equals 2.5VA



2. Convert the secondary winding VA value to the primary winding VA rating as the



equation VA (Primary) equals VA (Secondary) or VA (p) = VA(s)



For example of a 2.5VA secondary, if the primary voltage is 120V the current will be A (p) =



VA(s) / V(p). Giving A(p) = 2.5 / 120 = 0.020833 (roughly 21mA).



This is the calculation for a single input winding/single output winding transformer.



3. Add the separate VA ratings for a transformer with multiple secondary windings.



For secondary winding 1 = 5VA at 500mA



Secondary winding 2 = 24V at 100mA



Total Secondary VA = ( 5 X 0.5 ) + ( 24 X 0.1 ) = 4.9VA



Primary VA will still equal the total secondary VA.

Specifications



  • Capacity.............................................................................1600VA
  • Frequency..........................................................................50/60Hz
  • Voltage Combination........................................................Pls. see selection form.
  • Winding Material...............................................................100% Copper

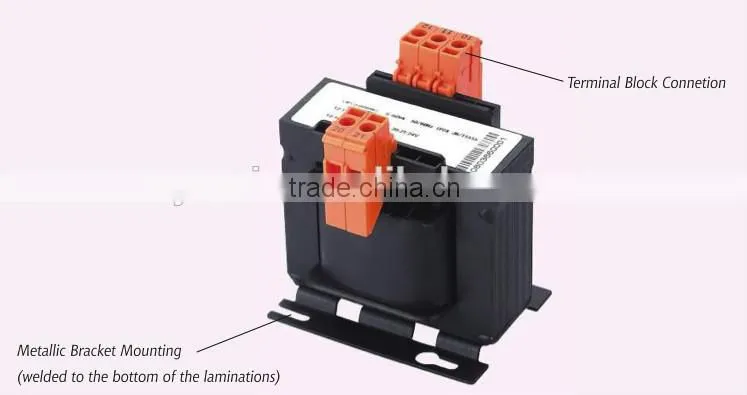

  • Terminal Block Connection............................................Provided
  • Metallic Bracket Mounting...............................................Provided
  • Standards.......................................................VDE0550, IEC204-1, IEC61588, EC439
  • Sample Service..................................................................Pay to Provide
  • Quality Assurance.............................................................24 months
  • Item Condition....................................................................Brand-New
Selection Form
Item Capacity

Voltage

Combination

Case

Qty.
Model (VA) Primary (V)/Secondary (V) (Pcs)
BK-40 40

440/220;240/24;220/24;

220-380/110-60-48-24,

380/220-110

 24
BK-60 60 24
BK-100 100 16
BK-160 160 12
BK-250 250 6
BK-400 400 6
BK-630 630 4
BK-800 800 4
BK-1000 1000 1
BK-1600 1600 1
BK-2500 2500 1

Note:

Please mention the voltage combination when ordering. Other else multiple voltage combination upon request.

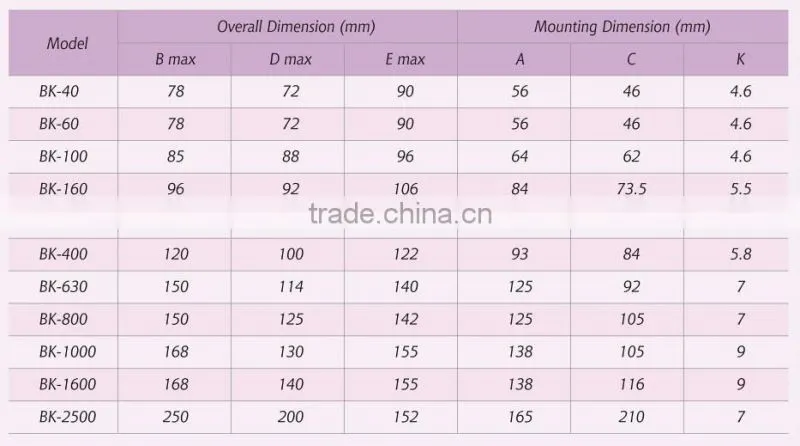

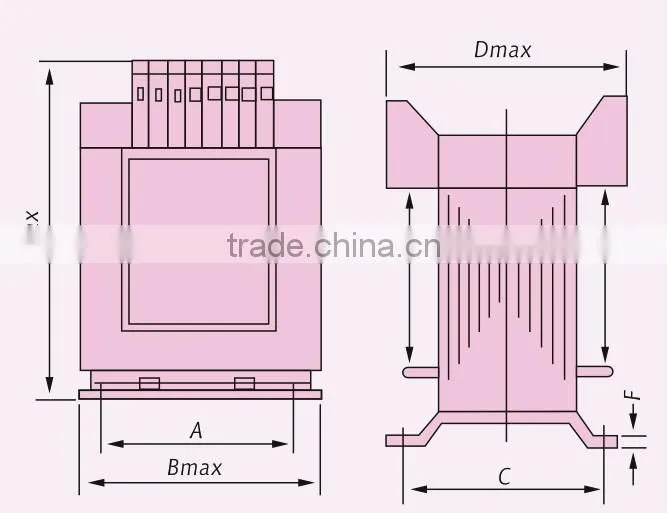

Dimension

 Manufacturer 1600VA Control Transformer ,Copper Transformer .



Manufacturer 1600VA Control Transformer ,Copper Transformer .
