MWS-20 Series Computerized Wood-based Panel Universal Testing Machine of Tenson
l Main Function
This machine is mainly applicable for wood-based panel Production Company and quality testing section. It can finish the mechanical property test of woof-based panel such as plywood, flake and fiberboard. Etc.
- 1. Appurtenances for inner bonding strength test
- 2. Appurtenances for agglutination strength test
- 3. Appurtenances for static bending strength test
- 4. Appurtenances for screws out resistance test
- 5. Appurtenances for surface bonding strength test.
Technical Parameters
Model |
MWS-20 |
Display type |
Digital display |
Maximum testing force |
20kN |
Testing force accuracy |
1grade |
Testing force measuring range |
1%-100%FS |
Testing force resolution |
/ |
Crossbeam displacement measurement |
Resolution is higher than 0.01mm |
Crossbeam moving speed range |
0.01-500mm/min variable speed regulation and arbitrary setting |
Crossbeam moving speed relative error |
Within±0.2%of setting value |
Effective tensile space (without grips) |
1000mm |
Effective testing width |
410mm |
Voltage |
3-ph, 380V±10% 50Hz |
Overall dimension |
740*500*1680mm |
Weight |
450kg |
Remark: For container baseboard testing, please choose electronic universal testing machine WDW-T100 with special accessories. | |

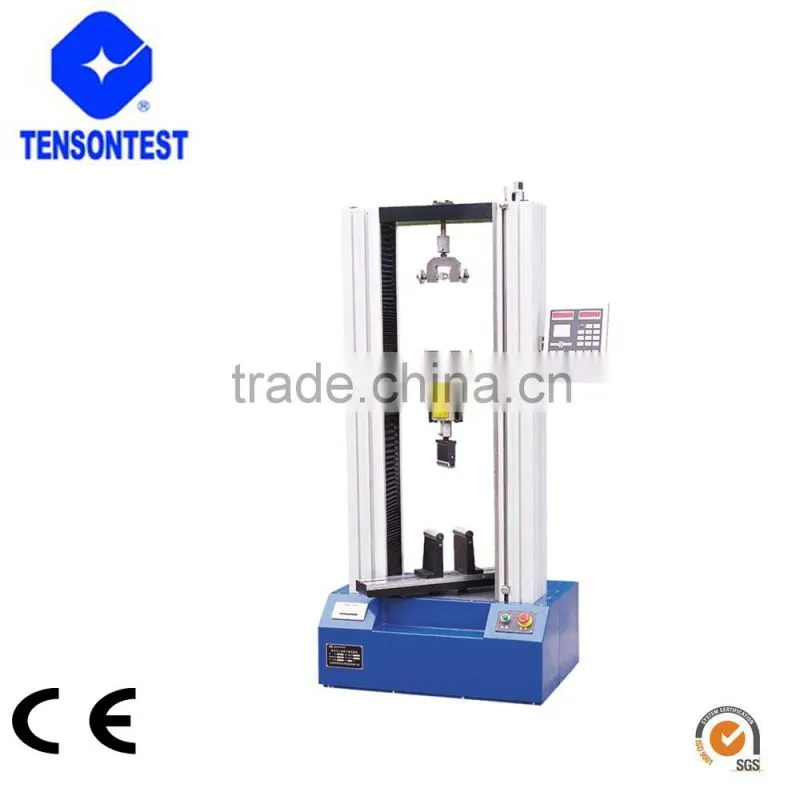

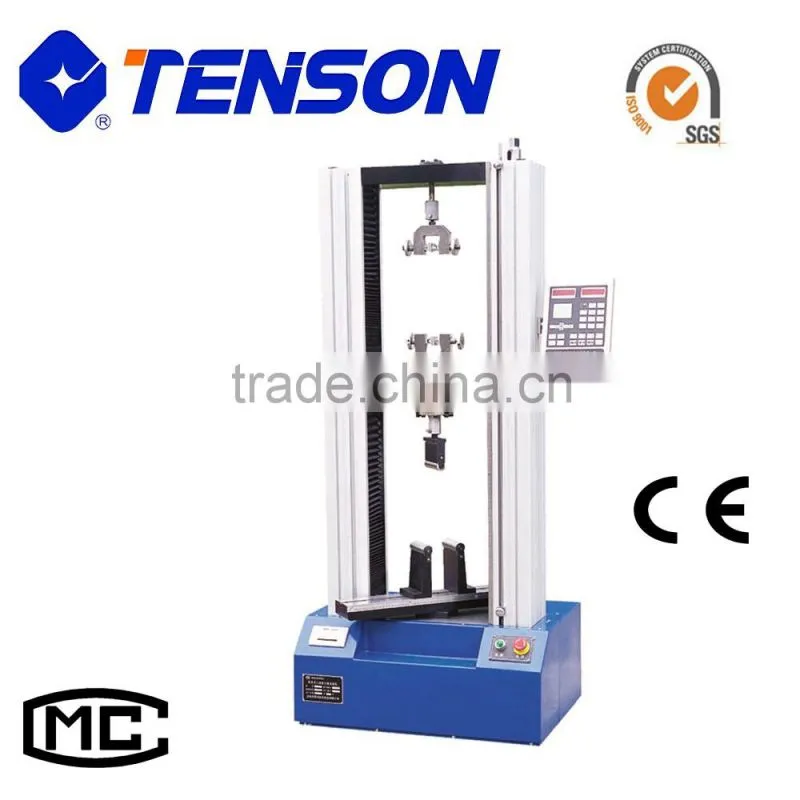

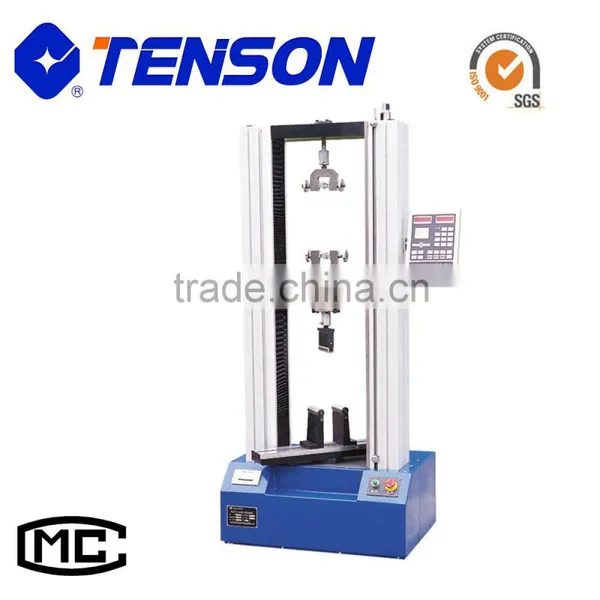

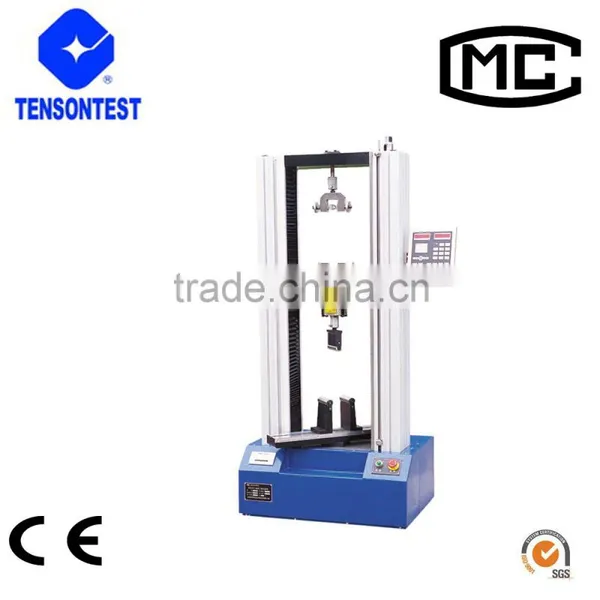

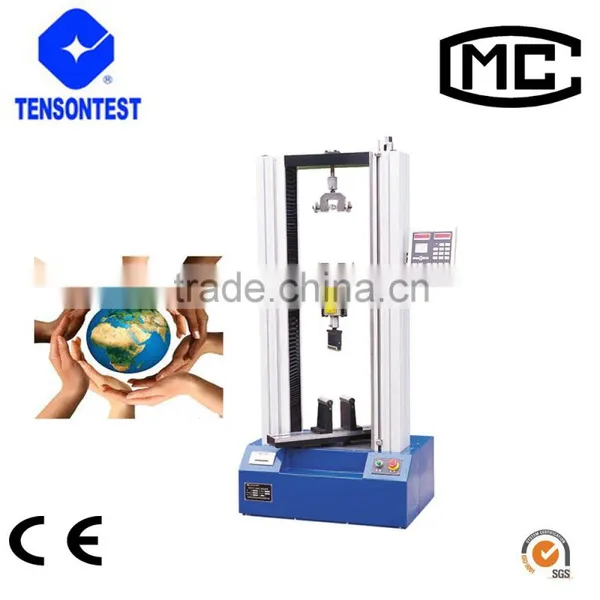

The pictures of MWS Series Computerized Wood-based Panel Universal Testing Machine
FAQ
Q: what is the service guarantee?
A: Tianchen has perfect sale service network. There are more than 30 offices in all of the country. Moreover, the company has a mobile itinerant procession that solves difficulties and supervises the service quality of every office at any time.
Q: What are the service promises?
A: 1. During the installation and commission of equipments, our professionals direct and install the machine;
2. After in the installation and commission of equipments, we help to make the test of measure;
3. We train the equipment operator for free;
4. We supply 1-year guarantee-repairing service and maintenance service of life. After guarantee time, the cost if you change it.
5. We update the computer software for life free;
6. We respond the customers calling when the supply the question information in 1 hour, give the solution case in 2hours, professional engineer will provide the support service in 48 hours;
7. We supply the visit and equipments maintenance service frequency;
8. Nation-wide professionals can supply the timely and considerate after-sale service whenever you are.
Our company
Jinan Tianchen Testing Machine Manufacturing Co., Ltd is subordinate to Tianchen Machine Group, which was established in 1997. Up to know its sales have achieved 2 billion. In September 2000, Tianchen successfully passed ISO9001 and has own right export and export. Tianchen was approved “High-tech Enterprise in Jinan city” by Shandong Provincial Science and Technology Department in 2004.
During hard work for 10 years, “Tianchen Testing Machine” has became the famous brand in its field. Tianchen depends on the group’s advantages of funds, technology and human Resources and then its comprehensive strength is in the forefront of the industry. It has been sold to all over the country, and also exported to France , England, Panama, Russia, Thailand, Singapore and many other countries.
The company’s after-sales service
1. The warranty of all our testing machines is one year.
2. During this warranty, it is free to replace the spare parts.
3. Without this warranty, it only charges the cost of the spare parts.
4. All our testing machines enjoy a long life after-sales service.
