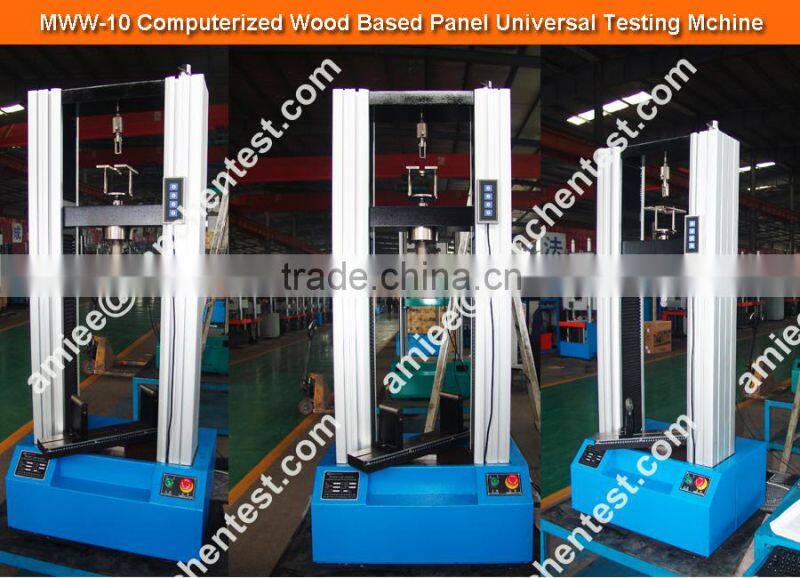

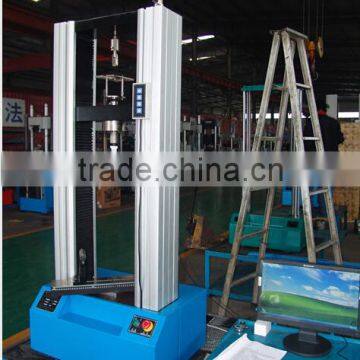

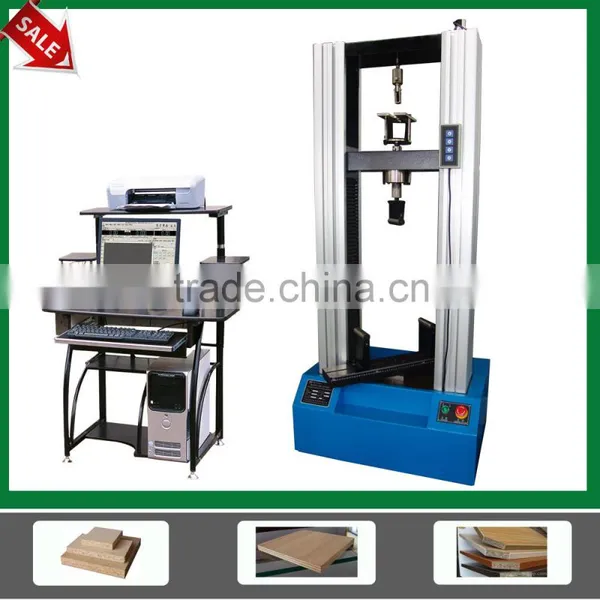

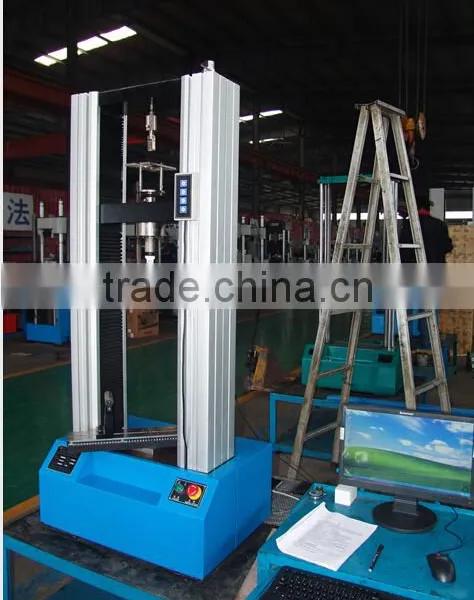

MWW-10 Computerized Artifical Board Universal Testing Machine 10kN

MWW-10 Computerized Artifical Board Universal Testing Machine 10kN

Introduction

This machine is mainly applicable for wood-based panels company and quality testing section. It can finish the mechanical property test of wood-based panels, such as plywood, flake board and fiberboard etc.  Controlling software can automatically calculate modulus of elasticity, static bending strength, inner bond strength, surface bonding strength, agglutination strength and so on.

In standard, it conforms to GB/T17657-1999, EN310-1998, EN-319, EN-320, etc.

Product features

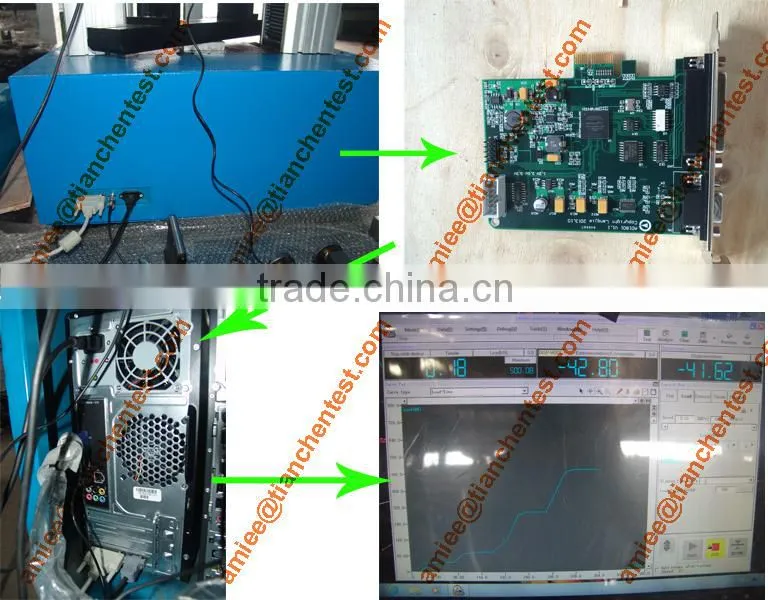

Adopt alternating servo system to control the position. Advanced CMOS chip integrated technology and

professionally designed data acquiring mu-factor and controlling software can make the machine stable,

reliable and convenient. Controlling software can automatically calculate modulus of elasticity, static

bending strength, inner bond strength, surface bonding strength, agglutination strength and so on.

Computer control system conforms to the requirements of GB about wood-based panel.

Technical parameters

1. Maximum testing force: 10kN
2. Measuring range of testing force: 0.1-10kN
3. Accuracy of testing force: ±1%;
4. Crosshead displacement measurement: 0.01 mm Resolution is higher than 0.01 mm;
5. Crosshead moving speed range: 0.01mm/min-500mm/min, variable speed and arbitrary setting
6. Power supply: 220V±10% or 380V±10%;
7. Overall dimension of host machine (L×W×H)(mm): 740×500×1680;
8. Weight: 450kg

Working condition

1. Room temperature10℃~35℃,the relative humidity is≤ 80%;

2. Install it on level solid base, levelness is 0.2/1000;

3. Around it without vibration, corrosive medium, strong electric-magnetic field interference;

4. Fluctuation of power voltage can’t be more than ±10% of rated voltage;

5. The host testing machine should be connected to the ground stably.

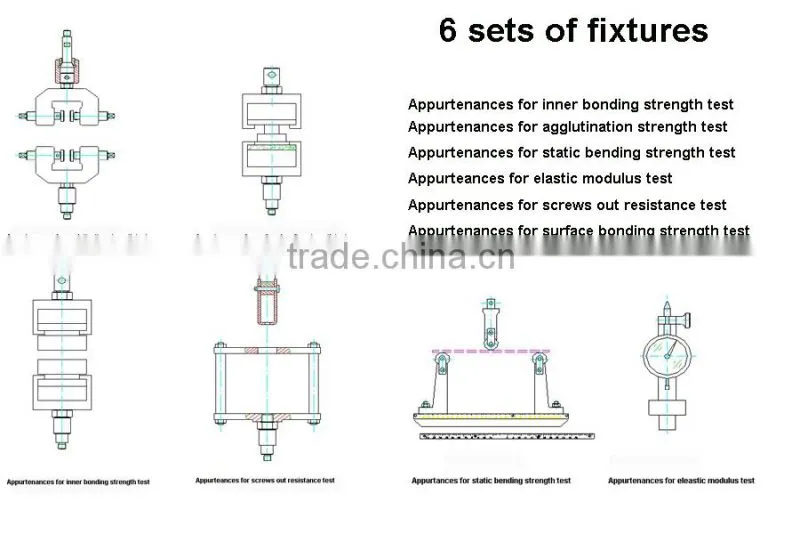

6 sets of fixtures

Appurtenances for inner bonding strength test

Appurtenances for agglutination strength test

Appurtenances for static bending strength test

Appurtenances for elastic modulus test

Appurtenances for screws out resistance test

Appurtenances for surface bodning strenght test

 TENSON Test universal testing software

 Suitable wood specimen
