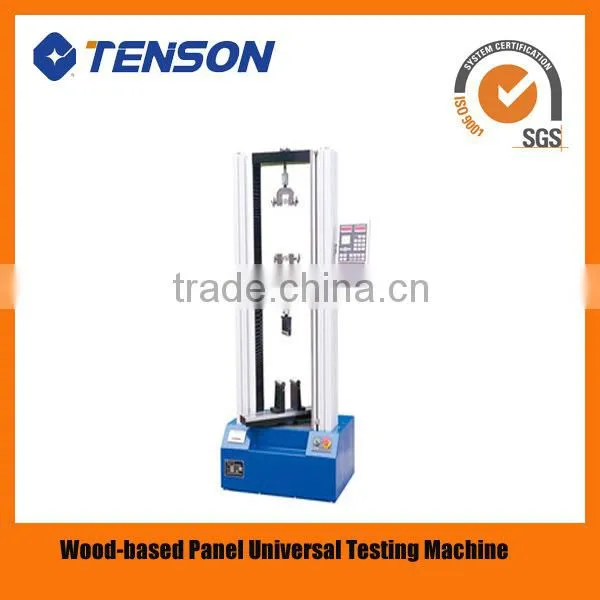

MWS Wood-based Panel Universal Testing Machine,Mechanilcal Property Test Machine
1. Introduction:
This machine is mainly applicable for wood-based panels company and quality testing section. It can finish the mechanical property test of wood-based panels, such as plywood, flake board and fiberboard etc.
2. Main Technical Parameters:
Specification Model |
MWS-10A |
MWS-20A |
MWS-10 |
MWS-20 |
|
|
Testing force measuring range (kN) |
0.2~10 |
0.4~20 |
0.2~10 |
0.4~20 |
|
Accuracy of testing force |
±1% |
||||
Resolution of testing force |
1/300000, no subsection or four subsections |
||||
|
Relative error of displacement |
±1% |
||||
|
Resolution of crosshead displacement measuring (mm) |
≥0.001 |
||||
Speed range of crosshead |
0.01mm/min~500mm/min |
||||
Effective testing space (mm) |
800 |
||||
Power supply |
220V±10%, 50Hz |
380V±10%, 50Hz |
|||
Working environment |
Room temperature~30°C, relative humidity <80%; |
||||
Main configuration |
Chinese servo motor system |
Imported servo motor system |
|||
Overall dimension (mm) |
740×500×1680 |
||||
Weight (kg) |
450 |
||||
3. Product features
Adopt alternating servo system to control the position. Measure and control system adopts flush type measure and control instrument and integrate measure, control, display, calculate and save and it also can print the testing results.
