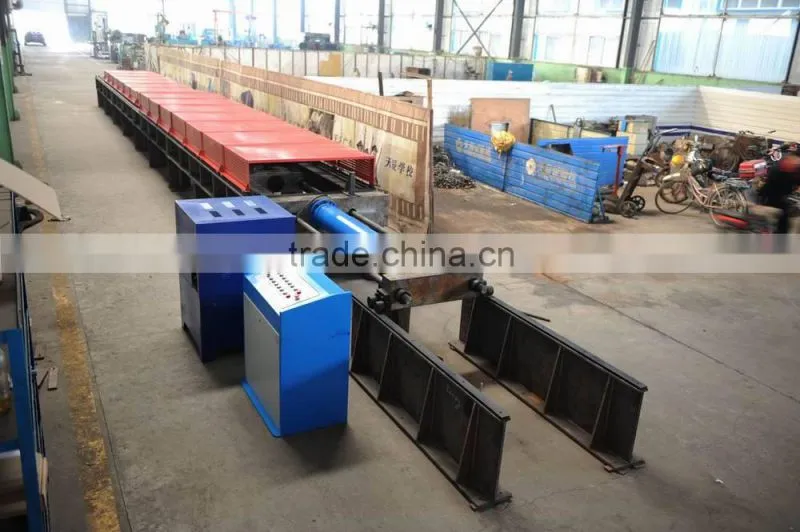

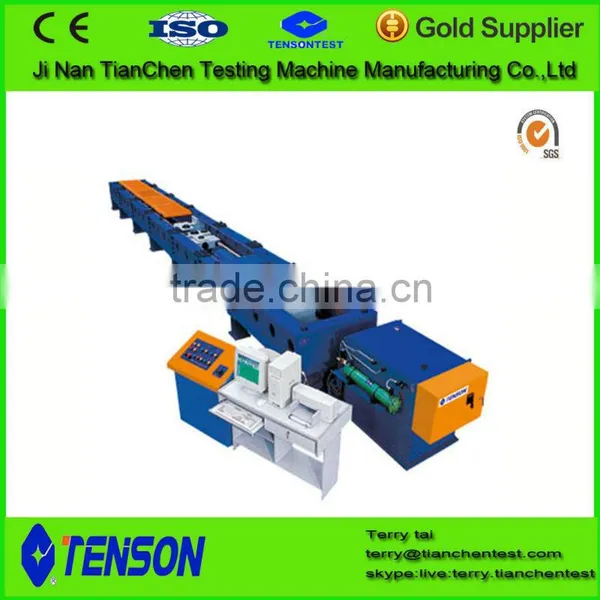

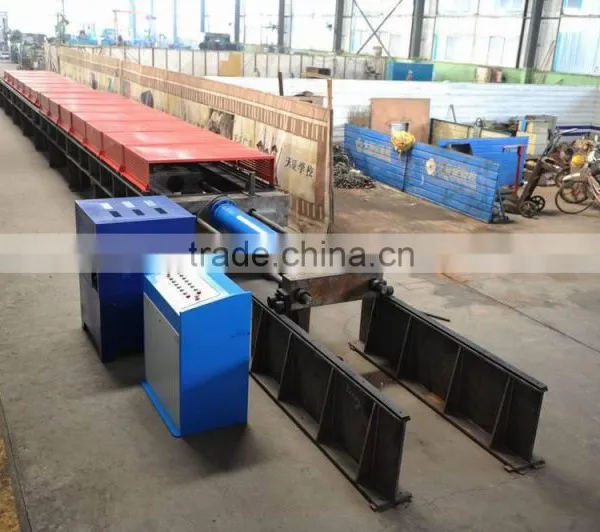

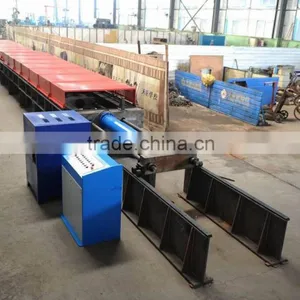

Tenson Computerized Electro-hydraul horizontal tensile testing bed
horizontal tensile testing machine
Tenson Computerized Electro-hydraul horizontal tensile testing bed

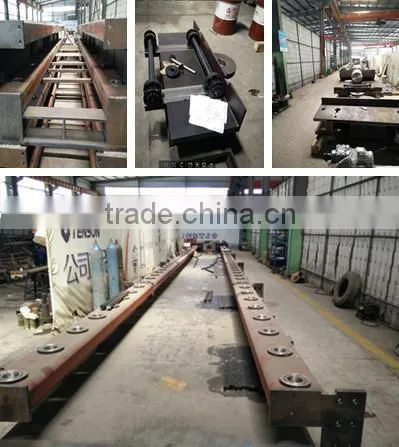

Frame
- Horizontal structure, reasonable height, easy to operate, stable transmission.

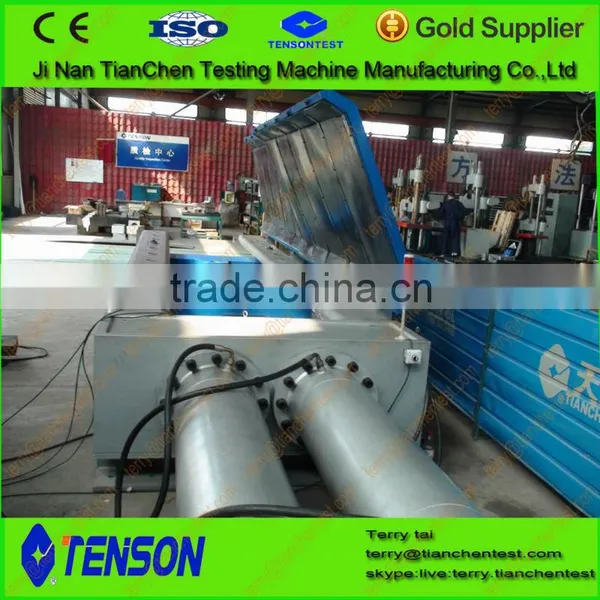

- Loading cylinder with excellent center alignment and shock absorbing performance.
- Servo system with pressure difference regulation ability to reduce energy consumption, reduce heat and protect the oil.
- Apply imported servo valve with fast response and high control precision.
- Imported tension/compression force transducer with high precision and stability can be verified by compression direction and used at tensile direction.
Tenson Computerized Electro-hydraul horizontal tensile testing bed
Controller:
- Resolution is up to 1/350,000FS
- Based on advanced adaptive neuron PID control algorithm, closed-loop control of stain, stress, load, displacement and extension. All control modes shift easily and smoothly.
- 8-channel analog signal acquisition and 3-channel digital signal acquisition
- USB communication
Tenson Computerized Electro-hydraul horizontal tensile testing bed
Software:
- Open test procedure setup: customer can compile the test procedures by themselves.
- Curve real-time display: force, displacement, speed and extension.
- Open test report: customer can customize the report template according to their needs and the report can be exported to EXCEL for second time edit.
- Powerful authorization management: the administrator can allocate different functions for different operators to avoid any misuse.
- Powerful expandability: software can communicate with serial port; collect data like micrometer and centimeter. 6-channel is preserved for expansion with real-time data acquisition and display and process.
- Data query function: customer can search according to serial number, date, test procedure name and etc.
- Rich curve analysis function: software can mark the characteristic point, zone in/out the curve and explore the curve. During the test, three different types of curves can be display at the same time. After test, customer can customize the upper and lower yield point, greatly facilitating data analysis.
- Unit definition: Also user can define the unit by themselves using formula.
- Software provides limit protection, position limit protection, over-capacity protection.
Parameters: | |
Max. Force |
600, 1000, 2000, 3000kN |
Accuracy |
Class 1 |
Force range |
2% ~ 100% FS |
Force accuracy |
±1% of reading |
Force resolution |
1/±350,000 of max force |
Force rate |
0.02 ~ 2%FS/S |
Cylinder speed |
150mm/min |
Displacement range |
0 ~ 600mm |
Displacement accuracy |
±0.1mm |
Tensile space (excluding piston travel) |
3 ~ 20meter |
Dimension |
18000 (L) x 800(W) x 700(H) mm |
Power supply |
415V±10%, 4.0kW |
Weight |
30,000kg |
Standard accessories: | |
Load frame |
1 set |
Driving system |
1 set |
600kN loading cylinder |
1 set |
600kN load cell |
1 set |

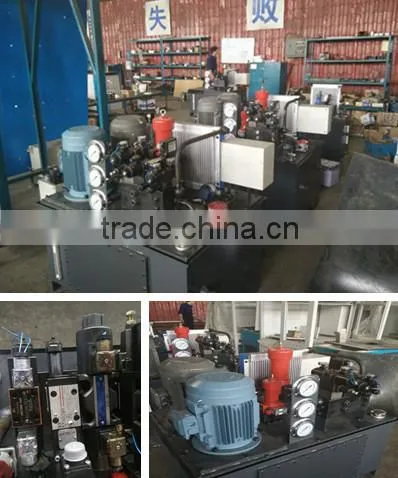

Hydraulic power unit |
1 set |
|
Hydraulic tension grip Stranded wire diameter (7-wire) |
1 set 9.5 ~ 15.2mm; 15.2 ~ 18mm |
English version manual/ software |
Testing Machine operation Manual and software (hard copy and 1 CD) |
Branded High performance Computer System |
Intel Pentium Processor 3.0 GHZ CPU or higher 2GMB DDR Combo Drive CD-RW/DDR RAM, 250GB HDD, P/S 2 key & mouse, 17” LCD Screen or higher Genuine Microsoft Win. Vista License, Color Printer |
Remark: the testing space and piston stroke can be made according to your requirement.
For larger load capacity, it also can be made according to the customer’s order
