Tenson WLW Series Computerized Electro-hydraulic Servo Horizontal Tensile Testing Bed for Metal Anchor

Name: Tenson WLW Series Computerized Electro-hydraulic Servo Horizontal Tensile Testing Bed for Metal Anchor
Brand: TENSON
SKU: 114087415

US$ 60,000 - 100,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

TENSON

Model Number:

WLW-2000

Jinan Tianchen Testing Machine Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name TENSON

Model Number WLW-2000

Power Hydraulic

Usage Tensile Testing Machine

Tenson WLW Series Computerized Electro-hydraulic Servo Horizontal Tensile Testing bed for metal anchor

horizontal tensile testing machine

Product Description

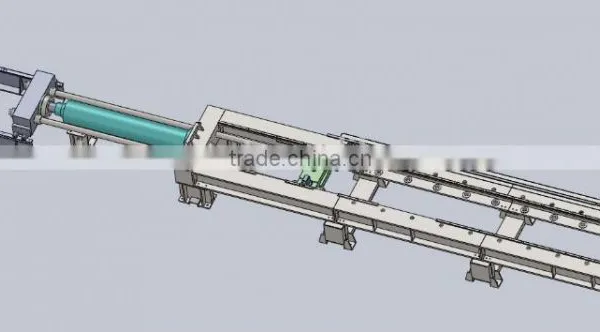

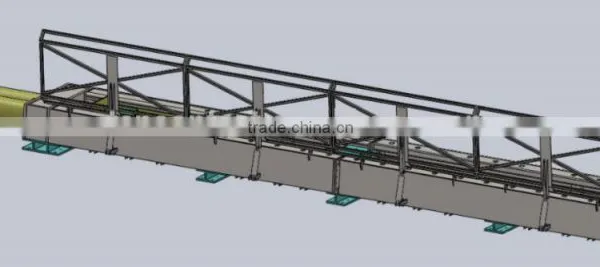

Horizontal Tensile Testing bed
Frame

Horizontal structure, reasonable height, easy to operate, stable transmission.
Loading cylinder with excellent center alignment and shock absorbing performance.
Servo system with pressure difference regulation ability to reduce energy consumption, reduce heat and protect the oil.
Apply imported servo valve with fast response and high control precision.
Imported tension/compression force transducer with high precision and stability can be verified by compression direction and used at tensile direction.

Horizontal Tensile Testing bed
Controller:

Resolution is up to 1/350,000FS
Based on advanced adaptive neuron PID control algorithm, closed-loop control of stain, stress, load, displacement and extension. All control modes shift easily and smoothly.
8-channel analog signal acquisition and 3-channel digital signal acquisition
USB communication

Horizontal Tensile Testing bed
Software:

Open test procedure setup: customer can compile the test procedures by themselves.
Curve real-time display: force, displacement, speed and extension.
Open test report: customer can customize the report template according to their needs and the report can be exported to EXCEL for second time edit.
Powerful authorization management: the administrator can allocate different functions for different operators to avoid any misuse.
Powerful expandability: software can communicate with serial port; collect data like micrometer and centimeter. 6-channel is preserved for expansion with real-time data acquisition and display and process.
Data query function: customer can search according to serial number, date, test procedure name and etc.
Rich curve analysis function: software can mark the characteristic point, zone in/out the curve and explore the curve. During the test, three different types of curves can be display at the same time. After test, customer can customize the upper and lower yield point, greatly facilitating data analysis.
Unit definition: Also user can define the unit by themselves using formula.
Software provides limit protection, position limit protection, over-capacity protection.

Parameters:
Max. Force	600, 1000, 2000, 3000kN
Accuracy	Class 1
Force range	2% ~ 100% FS
Force accuracy	±1% of reading
Force resolution	1/±350,000 of max force
Force rate	0.02 ~ 2%FS/S
Cylinder speed	150mm/min
Displacement range	0 ~ 600mm
Displacement accuracy	±0.1mm
Tensile space (excluding piston travel)	3 ~ 20meter
Dimension	18000 (L) x 800(W) x 700(H) mm
Power supply	415V±10%, 4.0kW
Weight	30,000kg
Standard accessories:
Load frame	1 set
Driving system	1 set
600kN loading cylinder	1 set
600kN load cell	1 set
Hydraulic power unit	1 set
Hydraulic tension grip Stranded wire diameter (7-wire)	1 set 9.5 ~ 15.2mm; 15.2 ~ 18mm
English version manual/ software	Testing Machine operation Manual and software (hard copy and 1 CD)
Branded High performance Computer System	Intel Pentium Processor 3.0 GHZ CPU or higher 2GMB DDR Combo Drive CD-RW/DDR RAM, 250GB HDD, P/S 2 key & mouse, 17” LCD Screen or higher Genuine Microsoft Win. Vista License, Color Printer
